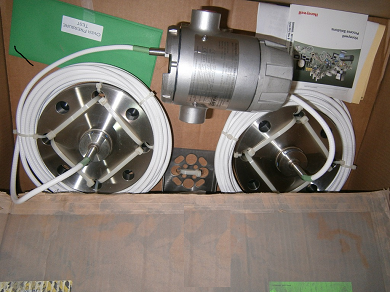

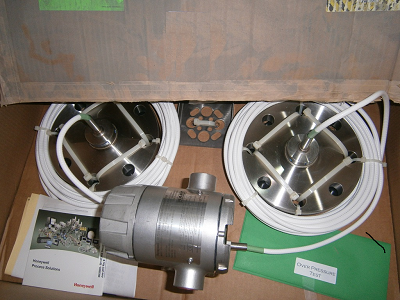

Honeywell STR12D-21A-3M0AFCAC2000-MB-SH-TP-F1D3 Differential Pressure Transmitter

The Honeywell STR12D sanitary remote seal pressure transmitter utilizes a differential pressure sensor, a temperature sensor, and a static pressure sensor to provide a comprehensive and compensated output signal. Its microprocessor-based electronics enable features like enhanced span turndown, improved temperature and pressure compensation, and high accuracy. The transmitter's design is robust, resisting shock, vibration, corrosion, and moisture

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Honeywell
• Product No. : STR12D-21A-3M0AFCAC2000-MB-SH-TP-F1D3
• Model :STR12D  - 0-10" to 0-400" H2O/0-25 to 0-1000 mbar Body Rating*: 2500 psi (172 bar) Compound Characterized
• Number of Seals: 2 - 2 Remote Seals
• Fill Fluid: 1 -  Silicone (DC 200)
• Standard Dual Head: A - 316 St. St.
• Secondary Fill: 3 - Silicone (DC 704)
• Connection of Remote Seal to Meter Body: M - 35 feet (10.7 m) PVC Coated SS Armor
• No Selection: 0 -
• Flush Flanged: AFC - Diaphragm Diameter 3.5" / Flange Size 3" /  Flange Pressure Rating * ANSI Class 300
• Wetted Material: AC  - Diaphragm Hastelloy C / Upper Insert Hastelloy C
• Non-Wetted Material (upper)  2  - 316 St. St.
• Bolts: 0  - No Selection
• Sytles: 0  - No Selection
• Gasket: 0  - No Selection

Continue

• OPTIONS: MB  - Mounting Bracket - Carbon Steel
• OPTIONS: SH  - 316 ST.ST. Electronics Housing with M20 Conduit Connections
• OPTIONS: TP - Over-Pressure Leak Test with F3392 Certificate
• Factory Mutual: F1D3 - Approval Type Non-Incendive / Location or Classification  Class I, Div. 2, Groups A,B,C,D

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
