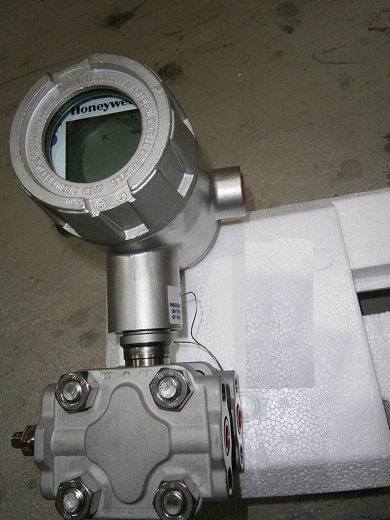

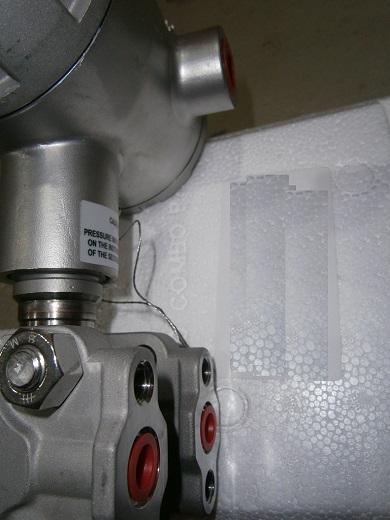

Honeywell STD924-J1A-00000-H6,SM,CC + SH,SS,TP,TG,F1,FX,A7,3C+XXXX Differential Pressure Transmitter
The Honeywell STD924 is a differential pressure transmitter that measures the difference in pressure between two points and converts it into a usable output signal. It utilizes a piezoresistive sensor, along with static pressure and temperature compensation, to accurately measure pressure and provide a stable 4-20mA analog signal, and optionally, digital communication
 Transmitter Datasheet
Transmitter Feature
- Manufacturer : Honeywell
- Product No. : STD924-J1A-00000-H6,SM,CC + SH,SS,TP,TG,F1,FX,A7,3C+XXXX
- Model :STD924 - 0-4" to 0-400" H2O / 0-10 to 0-1,000 mbar Body Rating: 4,500 psi (310 bar)
Range
- Materials of Construction: J - Process Wetted Heads Hastelloy® C 3, 6 / Vent/Drain Valves and Plugs2 Hastelloy® C-276 3 / Barrier Diaphragms Hastelloy® C-276 3 /
- Fill Fluid: 1 - DC® 200 Silicone
- Process Head Configuration: A - 1/4 NPT
- No Selection: 0000 - No Selection
- Communication Options: H6 -HART® 6.x Protocol Compatible Electronics
- Indicating Meter Options: SM - Smart Meter
- Transmitter Housing & Electronics Options: CC - Custom Calibration and I.D. in Memory
- Transmitter Housing & Electronics Options: SH - 316 SS5 Electronics Housing - (with M20 conduit connections)
- Meter Body Options: SS - 316 SS Bolts and 316 SS Nuts for Process Heads
- Services/Certificates/Marine Type Approvals Options: TP - Over-Pressure Leak Test with Certificate ( F3392 )
- Transmitter Housing & Electronics Options: TG - Stainless Steel Customer Wired-On Tag (4 lines, 26 characters per line, customer supplied information)
- Services/Certificates/Marine Type Approvals Options: F1 - Calibration Test Report and Certificate of Conformance (F3399)
- Services/Certificates/Marine Type Approvals Options: FX - Material Traceability Certification per EN 10204 3.1 (FC33341)
- Transmitter Housing & Electronics Options: A7 - M20 316 SS Certified Conduit Plug (ATEX, CSA & IECEx)
- Approval Body: 3C - see datasheet
- Factory Identification: XXXX
Basic Ordering Information Transmitter
There are several Model of pressure transmitters, for more details read the PDF below
Basic Ordering Information
|
