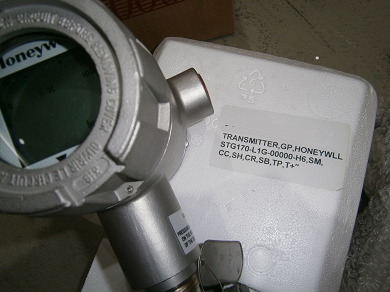

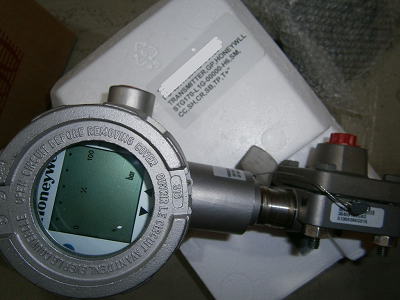

Honeywell STG170-L1G-00000-H6,SM,CC,SH+ CR,SB,TP,TG,FX,F1,A7,3C+XXXX  Pressure Transmitter

The Honeywell STG170, part of the SmartLine family of pressure transmitters, utilizes a high-performance piezoresistive sensor to accurately measure and transmit pressure data. It incorporates on-chip static pressure and temperature compensation, ensuring high accuracy and stability even under varying process conditions. The transmitter converts pressure into an electrical signal, which is then translated into a readable output, often a 4-20 mA signal, representing the measured pressure

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Honeywell
• Product No. : STG170-L1G-00000-H6,SM,CC,SH+ CR,SB,TP,TG,FX,F1,A7,3C+XXXX
• Model : STG170 - Gage Pressure Single Head - 0-30 to 0-3,000 psi / 0-2.1 to 0-210 bar
• Materials of Construction: L - Wetted Process Heads (Bonnet) - Monel 400^{® 7} /  Barrier Diaphragms - Monel 400^{® 4}
• Fill Fluid: 1 -  Silicone DC^®200 ⁸
• Process Connection Configuration: G - 1/2 NPT (female)
• No Selection: 00000 - No Selection
• Communication Options: H6 -HART^® 6.x Protocol Compatible Electronics
• Indicating Meter Options: SM - Smart Meter
• Transmitter Housing & Electronics Options: CC - Custom Calibration and I.D. in Memory
• Transmitter Housing & Electronics Options:  SH  - 316 SS5 Electronics Housing - (with M20 conduit connections)
• Meter Body Options: CR  - A286 SS (NACE) Bolts and 304 SS (NACE) Nuts for Head
• Transmitter Mounting Bracket Options: SB  - Angle Mounting Bracket - 304 SS
• Meter Body Options:  SS  - 316 SS Bolts and 316 SS Nuts for Process Heads
• Services/Certificates/Marine Type Approvals Options: TP - Over-Pressure Leak Test with Certificate (F3392)
• Services/Certificates/Marine Type Approvals Options: F1 - Calibration Test Report and Certificate of Conformance (F3399)
• Transmitter Housing & Electronics Options: CC - Custom Calibration and I.D. in Memory
• Transmitter Housing & Electronics Options: A7 - M20 316 SS Certified Conduit Plug (ATEX, CSA & IECEx)
• Approval Body: 3C - see datasheet
• Factory Identification: XXXX

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
