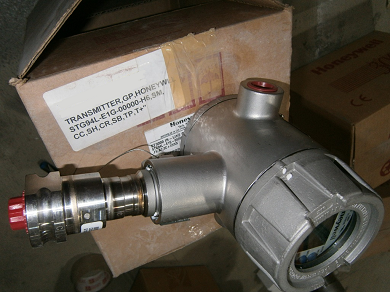

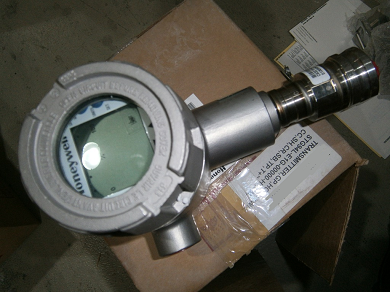

Honeywell STG94L-E1G-00000-H6,SM,CC,SH+ CR,SB,TP,TG,F1,A7,3C+XXXX  Pressure Transmitter

The Honeywell STG94L pressure transmitter measures gauge pressure by converting the pressure exerted on a sensor into an electrical signal. It uses a piezoresistive sensor that also includes temperature and static pressure sensors, allowing for accurate measurements even with fluctuating temperatures and pressures. The transmitter then outputs a 4-20 mA analog signal, which can also be digitally communicated using HART or FOUNDATION Fieldbus protocols.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Honeywell
• Product No. : STG94L-E1G-00000-H6,SM,CC,SH+ CR,SB,TP,TG,F1,A7,3C+XXXX
• Model : STG94L - Gage Pressure - 0-20 to 0-500 psi/0-1.4 to 0-35 bar
• Materials of Construction: E - Wetted Process Heads (Bonnet) - 316 St. St /  Vent (Drain) Valve - 316 St. St. / Barrier Diaphragms - 316 LSS
• Fill Fluid: 1 -  Silicone DC^®200 ⁸
• Process Connection Configuration: G - 1/2 NPT (female)
• No Selection: 00000 - No Selection
• Communication Options: H6 -HART^® 6.x Protocol Compatible Electronics
• Indicating Meter Options: SM - Smart Meter
• Transmitter Housing & Electronics Options: CC - Custom Calibration and I.D. in Memory
• Transmitter Housing & Electronics Options:  SH  - 316 SS5 Electronics Housing - (with M20 conduit connections)
• Meter Body Options: CR  - A286 SS (NACE) Bolts and 304 SS (NACE) Nuts for Head
• Transmitter Mounting Bracket Options: SB  - Angle Mounting Bracket - 304 SS
• Services/Certificates/Marine Type Approvals Options: TP - Over-Pressure Leak Test with Certificate (F3392)
• Options: TG - Stainless Steel Customer Wired-On Tag
• Services/Certificates/Marine Type Approvals Options: F1 - Calibration Test Report and Certificate of Conformance (F3399)
• Transmitter Housing & Electronics Options: A7 - M20 316 SS Certified Conduit Plug (ATEX, CSA & IECEx)
• Approval Body: 3C - see datasheet
• Factory Identification: XXXX

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
