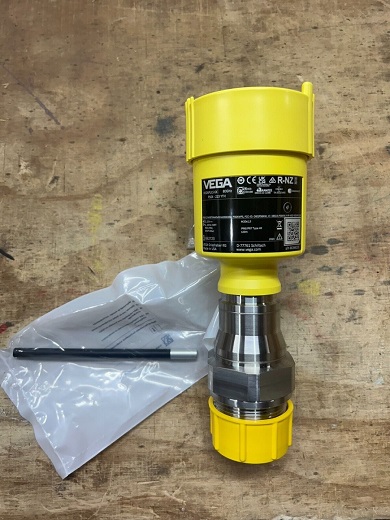

VEGAPULS 6X Radar sensor for continuous level measurement of liquids and bulk solids-PS6X.2SWXBTXAAKMKXXXXXXX

(All-round radar measuring device - VEGAPULS 6X combines the best of the previous VEGAPULS 60 series.)

The VEGAPULS 6X is a non-contact radar level sensor that measures liquids and bulk solids by emitting microwave signals, which reflect off the medium's surface and are received by the antenna as an echo. The sensor analyzes the frequency or time difference between the transmitted and received signals to determine the distance to the product surface, thereby calculating the filling height. This measurement is then converted into an output signal and provides precise, maintenance-free readings regardless of process conditions.

How it Works:

1. Signal Transmission: The VEGAPULS 6X emits continuous microwave signals or short microwave pulses through its antenna.
2. Reflection: These signals travel to the surface of the medium (liquid or bulk solid) and are reflected back as an echo.
3. Echo Reception: The sensor's antenna receives the reflected signals.
4. Signal Analysis: The electronics analyze the difference in frequency or the time it took for the signal to travel to the medium and back.
5. Level Calculation: This time difference or frequency difference is directly proportional to the distance to the product surface. The sensor then calculates the filling height based on this distance.
6. Output: The calculated filling height is converted into an appropriate output signal (e.g., 4-20 mA/HART, Profibus PA, Foundation Fieldbus)

Key Features:

• Non-Contact Measurement: It is a non-contact measuring principle, ensuring wear-free and maintenance-free operation.
• Versatile Applications: It is suitable for both liquids and bulk solids, even under difficult process conditions.
• High Precision: It can reliably detect even small signals from media with poor reflective properties.
• Wide Dynamic Range: The sensor can measure over a wide range of applications and distances.
• Robust Antenna: It features encapsulated plastic or lens antennas for effective signal focusing.
• Process Independence: The measured results are independent of process conditions like temperature and pressure

Application area

VEGAPULS 6X is a universal sensor for continuous level measurement of liquids and bulk solids under all process conditions. Due to its application-oriented configuration and setup, VEGAPULS 6X offers a reliable and economical solution for all level applications. Due to its variable antenna systems, it ensures maintenance-free operation in all applications.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  VegaPuls6X
• Product No. : PS6X.2SWXBTXAAKMKXXXXXXX
• Model :  PS6X - Radar sensor for continuous level measurement of liquids and bulk solids
• Application: S - Standard
• Radar technology: W -  80 GHz technology

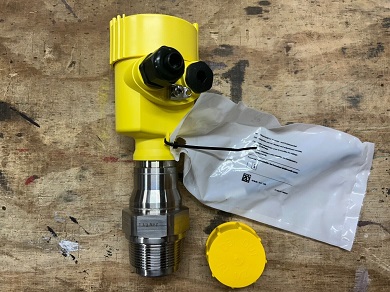

• Process Connection Fitting / Material: XB - Thread ASME B1.20.1, 1½NPT PN160 / 316/316L

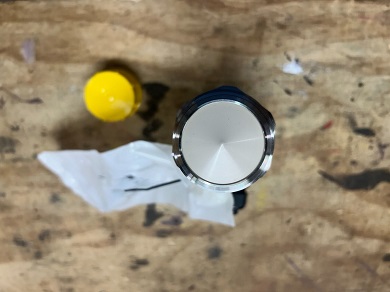

• Antenna version: T - with integrated antenna system

• Additional equipment: X - without
• Material / Seal / Process temperature: AA - PEEK / FKM (SHS FPM 70C3 GLT) / -40...+150°C
• Housing / Protection:  K- Plastic single chamber / IP66/IP67
•  Cable entry / Connection: M  - M20x1.5 / Cable gland PA black (ø5-9mm), standard

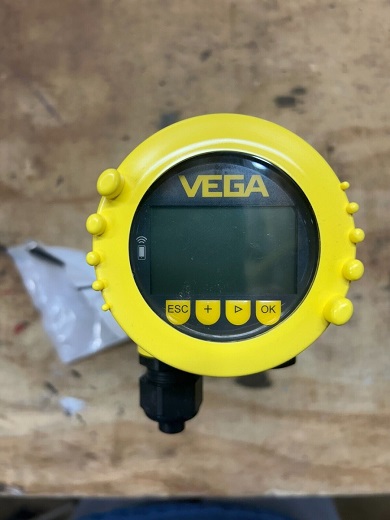

• Display/adjustment module PLICSCOM: K  -Display/adjustment module PLICSCOM, with Bluetooth
• Electronics: X  - Two-wire EtherNet/IP, Modbus TCP, OPC UA (Ethernet-APL)
• Explosion protection:  XX - for Ex-free areas (CE, RCM); including Ordinary Loca􀆟on (c-FM-us, c-CSA)
• Functional safety SIL (IEC 61508):  X - with
• IT security (IEC 62443-4-2):  X - with
• Overfill protection (WHG/VLAREM/KVU):  X - with
• Foodstuff/Pharmaceutical certificate:  X - without

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below
