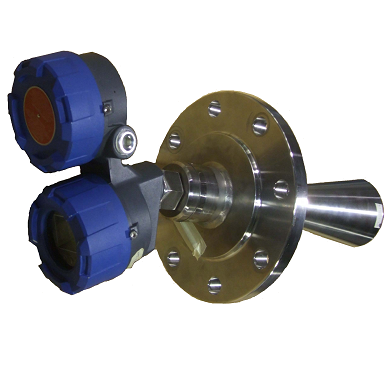

Magnetrol Pulsar® Model R86 - 26 GHz Pulse Burst Radar Level Transmitter

R86-511A-A10 + RB3-6300-A00-00-000

The Magnetrol Pulsar R86 works on the principle of pulse burst radar technology, emitting short bursts of 26 GHz microwave energy that reflect off the liquid surface. By measuring the transit time for the signal to travel to the surface and back, it calculates the distance to the liquid level. This distance is then used with tank configuration data to determine the liquid level.

Here's a breakdown of the working principle:

1. Transmission: The Pulsar R86 transmits short, repeated bursts of 26 GHz microwave energy downwards into the vessel.
2. Reflection: These microwave bursts hit the surface of the liquid and are reflected back towards the transmitter.
3. Transit Time Measurement: The device precisely measures the time it takes for the signal to complete the round trip from the transmitter to the liquid surface and back.
4. Distance Calculation: Using the known speed of light, the distance to the liquid level is calculated using the formula: Distance = (Speed of Light × Transit Time) / 2.
5. Level Determination: The calculated distance is then combined with tank height and other configuration parameters to determine the actual liquid level within the vessel.
6. Signal Processing: Sophisticated signal processing extracts the true liquid level measurement by ignoring reflections from tank walls or other background noise.

Key Features Contributing to its Operation:

• Pulse Burst Technology: Unlike continuous wave radar, it uses short, high-frequency pulses for effective measurement in a variety of process conditions.
• 26 GHz Frequency: This high-frequency radar provides excellent performance and resolution for accurate measurements.
• Circular Polarization: This feature simplifies installation and ensures proper signal alignment, reducing false targets.
• Advanced Signal Processing: This technology allows the R86 to filter out interference and extract accurate level data from complex environments.

 Full Datasheet

Transmitter Feature

• Manufacturer :  Magnetrol
• Product No. : R86-511A-A10
• Model : Pulsar R86 - Through-Air Radar Level Transmitter - 26 GHz R 8 6 Pulse Burst Radar
• POWER: 5 - 24 VDC, Two-wire
• SIGNAL OUTPUT AND ELECTRONICS: 1 -  4-20 mA with HART
• SAFETY OPTIONS: 1 - SIL 2 Hardware - HART only (5th digit = 1)
• ACCESSORIES/MOUNTING: A - Digital Display and Keypad - Integral
• CLASSIFICATION: A - Intrinsically Safe (ATEX/IEC)
• HOUSING:  1  - Die-cast Aluminum, Dual Compartment, 20-degree
• CONDUIT CONNECTION:  0  -1⁄2" NPT

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information Transmitter

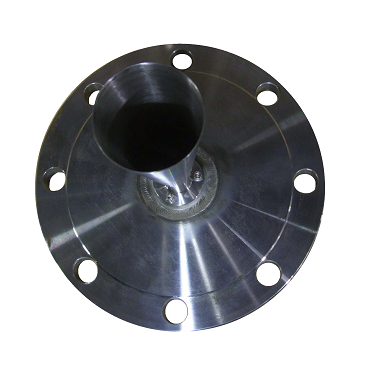

Antenna Feature

• Manufacturer :  Magnetrol
• Product No. :RB3-6300-A00-00-000
• Model : RB  - Pulsar Radar Antennas - 26 GHz
• CONFIGURATION/STYLE: 3  - 3" Horn
• PROCESS CONNECTION – SIZE/TYPE: 63 - 4" 150# ASME raised face flange
• CONSTRUCTION CODES: 0 - Industrial
• FLANGE OPTIONS: 0 - none
• MATERIAL OF CONSTRUCTION - MFG/NUT/ROD/INSULATION: A -  316SS/316L SS
• FUTURE: 0 - none
• O-RING MATERIALS/SEAL OPTIONS: 0 - Viton VX065
• ANTENNA EXTENSIONS: 0 - none ( see order information antenna)
• SPECIAL OPTIONS: 0 - none
• SPECIAL OPTIONS: 000 - remain empty

Max working pressure 9.0bar

Basic Ordering Information probe
