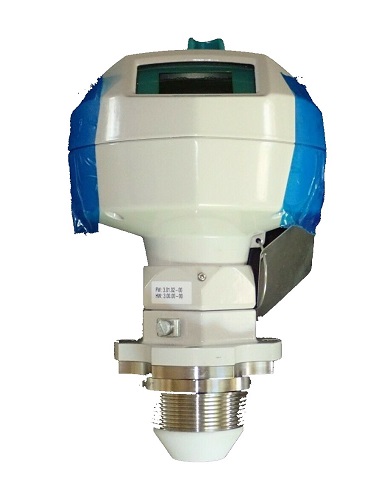

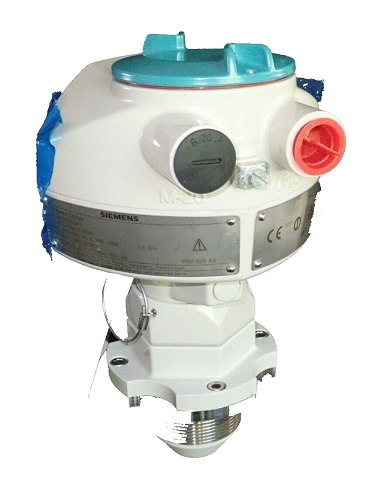

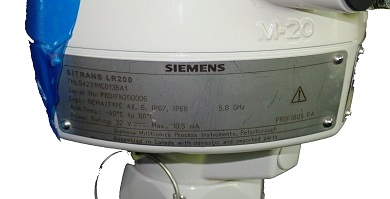

Siemens Radar level transmitters / SITRANS LR200
7ML54231MC013BA1 (for liquids and slurries.)
The SITRANS LR200 uses a 6 GHz pulse radar technology to measure continuous liquid and slurry levels in vessels, emitting radar pulses from its rod antenna and calculating the level based on the time it takes for the reflected echo to return. Its Process Intelligence technology improves reliability by filtering out false echoes from obstructions and handling turbulent or high-pressure conditions within a 20-meter range. The device is designed for easy setup and provides diagnostic information through its local user interface (LUI) and supports communication protocols like HART and PROFIBUS PA
How it Works
- Pulse Emission: The SITRANS LR200 emits a 6 GHz radar pulse from its rod antenna into the vessel.
- Echo Reflection: When this pulse strikes the surface of the liquid or slurry, it is reflected back towards the antenna.
- Time Measurement: The device measures the exact time it takes for the pulse to travel from the antenna to the surface and back.
- Level Calculation: By knowing the speed of light and the measured time, the instrument calculates the distance to the material, which is then converted into a level measurement.
Key Features
- Pulse Radar Technology: Uses high-frequency (6 GHz) radar for accurate level measurement.
- Process Intelligence: A patented technology that enhances measurement reliability by processing signals, including the suppression of false echoes from fixed obstacles.
- Graphical Local User Interface (LUI): Provides a simple, intuitive interface for setup, operation, and viewing echo profiles for diagnostic purposes.
- Communication Protocols: Supports communication through HART and PROFIBUS PA, allowing for integration into existing control systems.
- Range and Conditions: Suitable for continuous monitoring of liquids and slurries up to 20 meters, including applications with high temperatures, pressures, agitation, and turbulence
 Full Datasheet
Transmitter & Antenna Feature
- Manufacturer : Siemens
- Product No. : 7ML54231MC013BA1
- SITRANS LR200 Radar level tr ansmitt er with PTFE rod: 7ML5423 - 20 m (66 ft) range, for liquids and
slurries.
- Antenna: 1 - PTFE, uses antenna adapter and additional process connection below
- Process connection: MC - R 2" [(BSPT), EN 10226]
- Antenna extensions or Inactive shield length: 0 - No antenna extension
- Pressure rating: 0 - 0.5 bar g (7.5 psi g) maximum
- Process seal/gasket: 1 - FKM O-ring, not available for combination of flat faced flanges with Antenna extension
options 0, 1 or 2
- Enclosure/Cable inlet: 3 - 2 x M20 x 1.5
- Communication/Output: B - PROFIBUS PA
- Approvals: A - Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, RED, RCM
- Pressure rating: 1 - 0.5 bar g (7.25 psi g) maximum
There are several Model of pressure transmitters, for more details read the PDF below
Basic Ordering Information Transmitter
ABM Temperature -40°C to 80°C
|
