Siemens Radar level transmitters / SITRANS LR200

7ML54250JB000AF1 (for liquids and slurries.)

The SITRANS LR200 uses a 6 GHz pulse radar technology to measure continuous liquid and slurry levels in vessels, emitting radar pulses from its rod antenna and calculating the level based on the time it takes for the reflected echo to return. Its Process Intelligence technology improves reliability by filtering out false echoes from obstructions and handling turbulent or high-pressure conditions within a 20-meter range. The device is designed for easy setup and provides diagnostic information through its local user interface (LUI) and supports communication protocols like HART and PROFIBUS PA

How it Works

1. Pulse Emission: The SITRANS LR200 emits a 6 GHz radar pulse from its rod antenna into the vessel.
2. Echo Reflection: When this pulse strikes the surface of the liquid or slurry, it is reflected back towards the antenna.
3. Time Measurement: The device measures the exact time it takes for the pulse to travel from the antenna to the surface and back.
4. Level Calculation: By knowing the speed of light and the measured time, the instrument calculates the distance to the material, which is then converted into a level measurement.

Key Features

• Pulse Radar Technology: Uses high-frequency (6 GHz) radar for accurate level measurement.
• Process Intelligence: A patented technology that enhances measurement reliability by processing signals, including the suppression of false echoes from fixed obstacles.
• Graphical Local User Interface (LUI): Provides a simple, intuitive interface for setup, operation, and viewing echo profiles for diagnostic purposes.
• Communication Protocols: Supports communication through HART and PROFIBUS PA, allowing for integration into existing control systems.
• Range and Conditions: Suitable for continuous monitoring of liquids and slurries up to 20 meters, including applications with high temperatures, pressures, agitation, and turbulence

 Full Datasheet

Transmitter & Antenna Feature

• Manufacturer :  Siemens

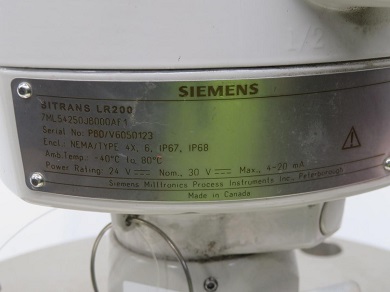

• Product No. : 7ML54250JB000AF1

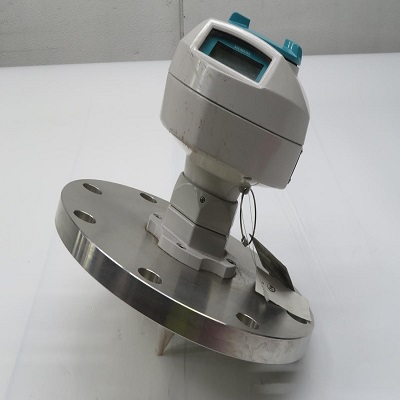

• SITRANS LR200 Radar level transmitter with horn:  7ML5425 - non-contact, 20 m (66 ft) range, for liquids and
  slurries.
• Antenna material (uses antenna adapter): 0 - 316L stainless steel with PTFE cone emitter

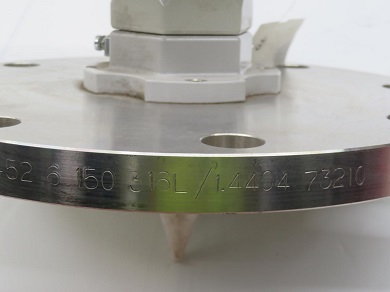

• Process connection (refer to LR200 Pressure/Temperature curves): JB -  6" ASME 150 lb, flat faced
• Communication/Output: 0 - 4 ... 20 mA, HART,
• Process seal/gasket: 0 - FKM (-40 ... +200 °C)
• Enclosure/Cable inlet: 0 - Aluminum, Epoxy painted
• Horn size/Waveguide options:  A  - special
• Communication/Output: B  - PROFIBUS PA
• Approvals: A  - Ordinary Locations/General Purpose (Non-Ex), CE, UKCA, RED, RCM
• Approvals: F  - Non incendive, FM Class I, Div. 2, Groups A, B, C, D, FCC4)
• Pressure rating: 1  - 0.5 bar g (7.25 psi g) maximum

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information Transmitter

ABM Temperature -40°C to 80°C
