krohne Radar level transmitters / OPTIWAVE 6300 C

VF63400P10A0001010000100 - (Non-contact Radar (FMCW) Level Meter for Solids)

The Krohne Optiwave 6300 C uses 24 GHz FMCW radar to measure the distance to a material's surface, which is then converted to level, volume, or mass. It generates a continuously sweeping radar wave that reflects off the product, and the device measures the time-of-flight or the frequency difference of the reflected signal to calculate the distance. This non-contact method is ideal for dusty environments and challenging solid material measurements.

Working Principle

1. Radar Wave Transmission: The device emits a continuously sweeping microwave signal (FMCW - Frequency Modulated Continuous Wave) from its antenna.
2. Reflection: This radar wave travels to the material's surface in the tank or silo and reflects back to the antenna.
3. Signal Analysis: The device compares the frequency of the emitted wave with the frequency of the received, reflected wave.
4. Distance Calculation: The difference in frequency is directly proportional to the distance of the material's surface from the antenna.
5. Level Determination: The distance is then converted into a level measurement.
6. Output: The calculated level is transmitted to a control room via a standard 4-20mA signal.

Key Features

• Non-Contact Measurement: Ensures no physical contact with the measured material, reducing wear and tear and maintenance.
• 24 GHz FMCW Radar: Provides accurate and reliable measurements, especially for solids like powders and granules.
• Drop and Horn Antennas: Offers different antenna options suitable for various materials and process conditions, including polypropylene (PP) and PTFE drop antennas for dusty atmospheres.
• Dusty Applications: Designed for dusty conditions and hazardous area applications, making it suitable for challenging environments.
• SIL2 Compliant: Meets safety standards for use in Safety Instrumented Systems (SIS).

 Full Datasheet

Transmitter & Antenna Feature

• Manufacturer :  Krohne - OPTIWAVE 6300 C

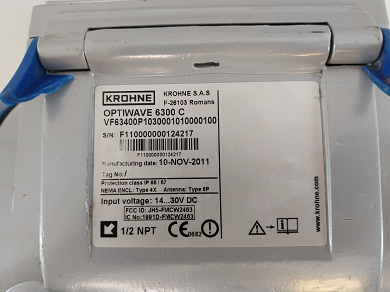

• Product No. : VF63400P10A0001010000100
• VF63  - OPTIFLEX 6300 C 24 GHz Non-contact Radar (FMCW) level meter for solids
• Special number : 4
• Ex approvals: 0  -  Without
• Material of Process Connection / Antenna type and material (pressure) : 0 316L (1.4404) / Horn 316L (40 barg / 580 psig) – Drop PTFE (40 barg / 580 psig) – Drop PP (16 barg / 232 psig)

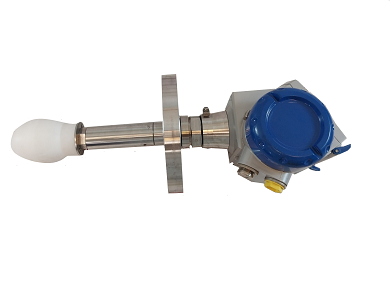

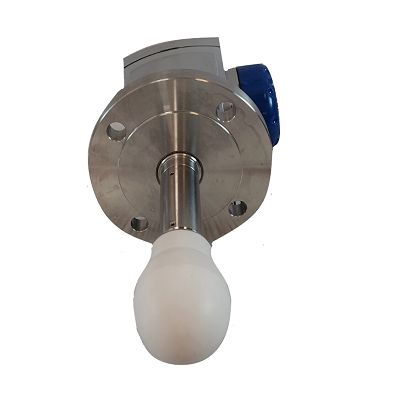

• Antenna type : P  - Drop PTFE DN80 (Ø75 mm / 2.95¨) long / max +150°C (+302°F)
• Antenna extension or Flange plate protection:  1 -  Extension 105 mm (4.13¨)
• Other devices: 0  - Standard / -40...+150°C (-40…+302°F) / FKM/FPM
• Process connection EN / Process connection ASME : A - 3¨ 150 lb RF ASME B16.5
• Process connection other: 0  - Without
• Output : 0 - 1 output: 4…20 mA (HART®)
• Housing / Cable entry / Cable gland: 0 - Aluminium / M20 × 1.5 / without
• HMI (display and keys): 1 - English
• Version: 0  - KROHNE (RAL 9006 / RAL 5005)
• Special option: 0  - Special option
• special number: 00
• Calibration certificate: 1  - Calibration certificate 2 points
• special number: 0
• Tag N°: 0 - Without

There are several Model of pressure transmitters, for more details read the PDF below
