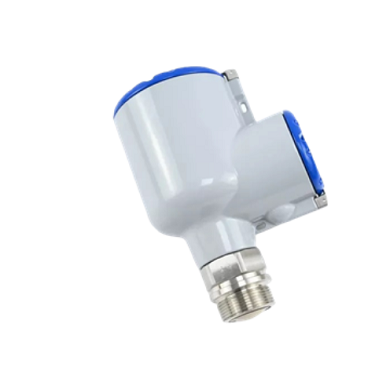

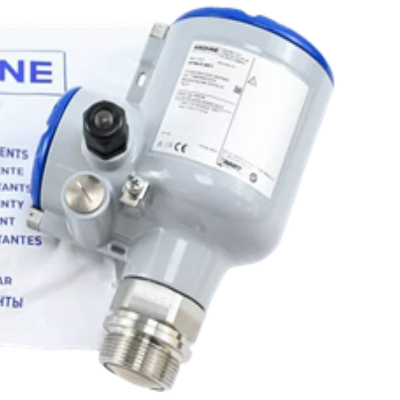

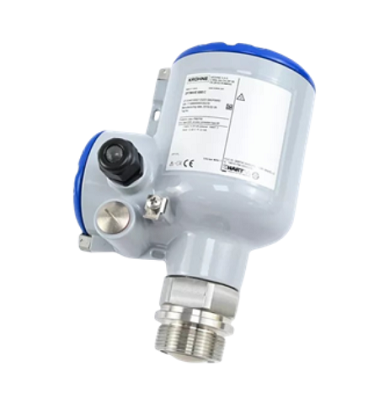

Krohne Radar level transmitters / OPTIWAVE 6500 C

VFDD401000212020130GP0000 - (Level Transmitter for powders and dusty atmosphere)

The KROHNE Optiwave 6500 C uses Frequency-Modulated Continuous Wave (FMCW) radar to measure the level of solids like powders in challenging conditions, including dusty environments and high silos. It works by emitting a radar signal, which is reflected by the material surface. By measuring the time difference between the transmitted and received signals and analyzing the frequency shift caused by the Doppler effect, the device calculates the distance to the product and thus the level, even with low-reflective media or internal obstructions.

Key aspects of its working principle:

1. FMCW Radar Technology: The transmitter sends out a continuous radar wave whose frequency is continuously varied over time.
2. Signal Reflection: This wave is reflected off the surface of the material (e.g., powder in a silo).
3. Doppler Shift: The reflected signal returns to the transmitter with a slight frequency shift due to the Doppler effect.
4. Distance Calculation: The Optiwave 6500 C measures this frequency difference and uses it to accurately determine the time it takes for the signal to travel to the product and back. This distance then translates to the product level within the container.
5. High Frequency & Small Beam Angle: The 80 GHz frequency provides a narrow beam, which helps to avoid false readings from internal tank structures and is effective in dusty environments.
6. Advanced Algorithms:Specialized algorithms and high signal dynamics are employed to compensate for low-reflective materials, uneven surfaces, and dust, ensuring reliable measurements in demanding applications

 Full Datasheet

Transmitter & Antenna Feature

• Manufacturer :  Krohne - OPTIWAVE 6500 C
• Product No. : VFDD401000212020130GP0000
• VFDD  - OPTIWAVE 6500 C 80 GHz radar (FMCW) level transmitter for powders and dusty atmosphere (up to
  40 barg (580 psig) and 150°C (302°F))
• Special number : 4
• Special number : 0
• Regional directives: 1 - Europe
• Ex approvals : 0  - Without
• Special number : 0
• Construction : 0 - Without
•  Converter version (Housing material / IP class): 2 - C / Compact version (aluminium housing – IP66/68 0.1 barg)
• Regional directives: 1 - 2-wire / 4...20mA passive HART®
• Cable entry / cable gland: 2 - M20×1.5 / 1 × plastic + plug
• Display: 0 - Without (no display, cover without window)
• Display – Documentation language: 2 - German
• Special number : 0
• Process conditions (Pressure, temperature, material and remarks) / Process seal : 1  - -1…40 barg (-14.5…580 psig) / -40°C...+150°C (-40°F…+302°F) / FKM/FPM
• Antennas (antenna type, material, radio approval) : 3  - Lens, DN40 (1½¨)/ PEEK / LPR 5
• Antenna extension : 0 - Without
• Process connection: Size / Pressure class / Flange face finish: GP0 - G 1½ A (ISO 228 (threaded connection))
• Calibration certificate : 0 - Without
• Options : 0 - Without
• Accessories / Tag plate : 0 - Without

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information Transmitter
