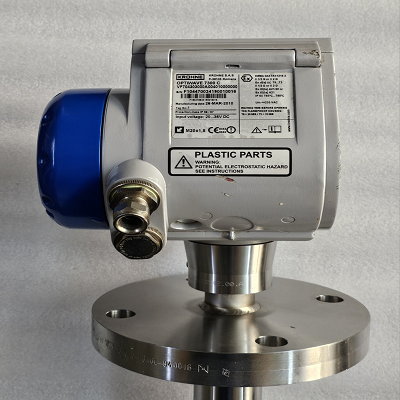

Krohne Radar level transmitters / OPTIWAVE 7300 C

VF704303000A004010000000 - (Non-contact Radar (FMCW) Level Meter for liquids)

The KROHNE OPTIWAVE 7300 C measures liquid levels using Frequency Modulated Continuous Wave (FMCW) radar, which sends a high-frequency signal from its antenna, reflects it off the product surface, and measures the time-of-flight of the reflected signal to calculate the distance to the liquid. This non-contact, continuous measurement works reliably even in tanks with agitated surfaces, foam, or internal objects, and the design minimizes build-up on the antenna

How it Works

1. Signal Transmission: The device emits a radar signal from its antenna towards the surface of the liquid in a tank.
2. Reflection: The signal reflects off the surface of the liquid.
3. Signal Reception: The antenna receives the reflected signal.
4. Distance Calculation: By precisely measuring the time it takes for the signal to travel to the surface and back (time-of-flight), the device calculates the distance to the liquid.
5. Level and Volume Determination: This distance, along with tank dimensions, is used to determine the liquid's level and, consequently, the volume.

Key Features and Benefits

• Non-Contact Measurement: Eliminates wear and tear and provides a long service life with low maintenance requirements.
• High Signal Dynamics: Offers higher accuracy and reliability, even in challenging conditions like agitated surfaces or the presence of foam.
• Versatile Antenna Options: Features options like the drop antenna, designed to avoid product build-up, and flush-mounted lens antennas for optimal performance in various applications.
• Easy Configuration: The device includes an installation wizard and comprehensive help functions for quick and easy setup.
• Application-Specific Design: Configurable for diverse applications, including open channel, hygienic, and storage tank measurements.

 Full Datasheet

Transmitter & Antenna Feature

• Manufacturer :  Krohne - OPTIWAVE 7300 C

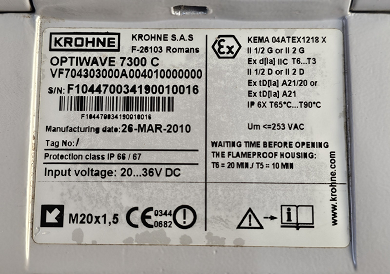

• Product No. : VF704303000A004010000000
• VF70  - OPTIFLEX 7300 C 24 GHz Non-contact Radar (FMCW) level meter for liquids
• Special number : 4
• Approval : 3  - ATEX Ex d[ia] IIC T3...T6 + DIP ①
• Material of Process Connection / Antenna type and material (pressure): 0 - 316L (1.4404) / Horn 316L (40 barg / 580 psig) – Drop PTFE (40 barg / 580 psig) – Drop PP (16 barg / 232 psig) – Hygienic PEEK (10 barg / 145 psig)
• Antenna type: 3 - Horn DN80 (Ø75 mm / 2.95¨) – long
•  Antenna extension: 0 - Without
• Other devices: 0 - Standard / -40...+150°C (-40…+302°F) / FKM/FPM
• Process connection EN: 0 - Without

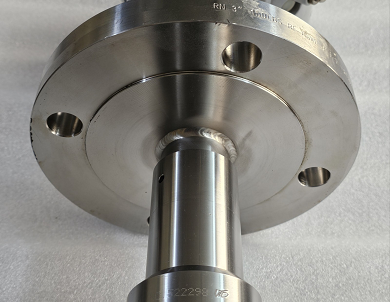

• Process connection ASME: A - 3¨ 150 lb RF ASME B16.5
• Process connection other: 0 - Without
• Output: 0 - 1 output: 4…20 mA (HART®)
• Housing / Cable entry / Cable gland: 4 - Aluminium / M20 × 1.5 / metal (only for Ex d)
• Housing option: 0 - Without

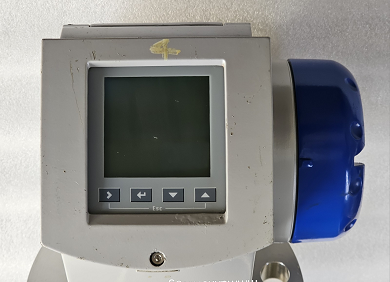

• HMI (display and keys): 1 - English
• Version: 0 - KROHNE (RAL 9006 / RAL 5005)
• Special number : 000
• Calibration certificate: 0 - Without
• Construction: 0 - Without
• Tag N°: 0 - Without

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information Transmitter
