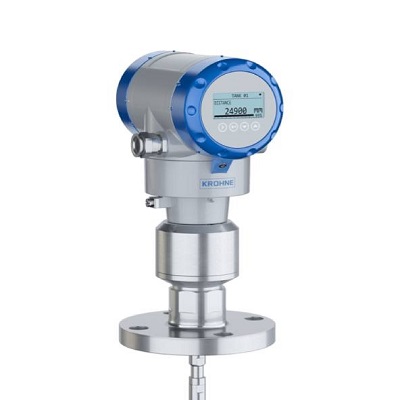

Krohne Radar level transmitters / OPTIFLEX 3200 C/F

 VFAD401110211610410GFT006 - (level transmitter for liquids with
hygienic requirements)

The KROHNE OPTIFLEX 3200 uses Time Domain Reflectometry (TDR) to measure liquid level and interface in hygienic applications. It transmits electromagnetic pulses along a probe, which are reflected by the liquid surface. The device measures the time it takes for the pulse to travel to the liquid and return, using this transit time to calculate the distance to the product surface. The reflected signal's intensity varies with the liquid's dielectric constant, allowing for the measurement of the interface between different liquids.

Working Principle Steps

1. Pulse Transmission: The device sends low-intensity electromagnetic pulses along a guided probe.
2. Pulse Guidance: These pulses travel at the speed of light along the rigid or flexible conductor of the probe.
3. Pulse Reflection: When a pulse reaches the liquid's surface, it is reflected back. The intensity of the reflection depends on the liquid's dielectric constant. A high dielectric constant, like water's, results in a stronger reflection.
4. Time Measurement: The device measures the time elapsed from when the pulse is transmitted to when the reflected pulse is received.
5. Distance Calculation: Half of this transit time is equivalent to the distance from the device's probe to the liquid's surface.
6. Level Conversion: This measured time value is then converted into a current output, such as a 4…20 mA signal, representing the liquid's level.

Key Features & Benefits

• Hygienic Design: The OPTIFLEX 3200 is designed for the food, beverage, and pharmaceutical industries, featuring a gap-free hygienic design suitable for CIP (Cleaning In Place) and SIP (Sterilization In Place).
• Interface Measurement: It is capable of measuring interfaces between different liquids, even in small tanks.
• Insensitivity to Conditions: The TDR technology makes it insensitive to steam, foam, and condensation, ensuring reliable performance in various conditions.

 Full Datasheet

Transmitter & Antenna Feature

• Manufacturer :  Krohne - OPTIFLEX 3200
• Product No. :   VFAD401110211610410GFT006
• VFAD  - OPTIFLEX 3200 C/F Guided Radar (TDR) level transmitter for liquids with hygienic requirements up to 40 barg (580 psig) and +150°C (+302°F)
• Special number : 40  Special manufacture
• Regional directives or approvals: 1  - Europe
• Ex approval: 1 - ATEX II 1/2 G Ex ia IIC T6…T* Ga/Gb + II 1/2 D Ex ia IIIC T85°C…T*°C Da/Db 2
• Industry / safety: 1 - SIL2/3 – only available for the compact version (C)
• Special number : 0
• Converter version (Housing material / IP class): 2 - C / Compact version (aluminium housing - IP66/IP68)
• Outputs: 1 - 2-wire / 4...20 mA passive HART®
• Cable entry / cable gland: 1 - M20×1.5 / without
• Display / Housing orientation: 6 - Display / Horizontal side
• Display - Documentation language: 1 - English
• Enhanced functions: 0 - Without
• Process conditions /Process seal: 4 - -1…40 barg (-14.5…580 psig) / -50°C...+150°C (-58°F…+302°F) /
  Fully TFM-T62 PTFE-coated
• Probe / Probe end / Material: 1 - Single rod - Ø8 mm (0.32¨) Ra≤0.76 μm / none / 316L - 1.4404 / 0.6...4 m (1.97. 13.12 ft)
• Special number : 0
• Process connection : Size / Pressure class / Sealing face: GFT - DN40 DIN 11851①4)
• Calibration certificate: 0 - Without (accuracy ±2 mm (0.08¨) up to 10 m (32.81 ft))
• Special number : 0
• Accessories / Tag plate: 6 - Weather protection + stainless steel tag plate (18 characters max.)

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information Transmitter
