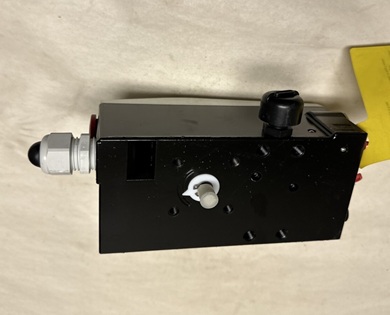

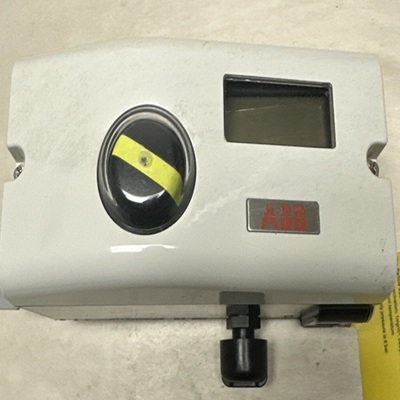

ABB Positioner TZIDC Series - V18345-2020120001

The TZIDC positioner uses an electronic controller with a PI or PID algorithm to compare the desired valve position (setpoint) with the actual position. It then adjusts the pneumatic air pressure to a control valve using an I/P module and a 3/3-way valve, which modifies the flow to the actuator until the setpoint is reached. The positioner also features an auto-adjustment function that automatically determines control parameters for optimal performance.

Working principle

1. Control loop: The positioner takes an electrical command signal and a feedback signal from a position sensor, comparing them to determine the required actuator position.
2. I/P conversion: An electronic-to-pneumatic (I/P) module converts the electrical control signal into a pneumatic signal.

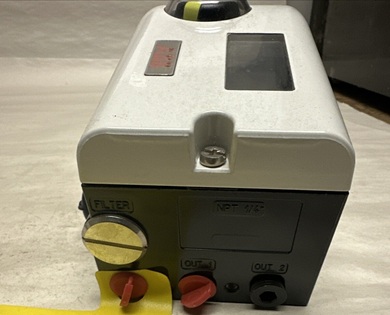

3. Pneumatic control: This pneumatic signal is then sent to a 3/3-way valve, which directs compressed air to either the "out" port for a single-acting actuator or "out 1" and "out 2" for a double-acting actuator.
4. Actuator adjustment: The I/P module continuously adjusts the air pressure to move the actuator to the correct position, ensuring the valve is set correctly to meet the process requirements.
5. Automatic calibration: The system has an automatic adjustment function that opens and closes the valve several times to fine-tune the control parameters for optimal behavior, which saves time and improves performance.
6. Setpoint reached: When the valve reaches its setpoint, the 3/3-way valve is closed in a center position to minimize air consumption.
7. Fail-safe function: If the electrical power is lost, the "fail-safe" function vents the actuator, and the return spring pushes the valve to a predetermined safe position.

 Full Datasheet

Positioner Transmitter Feature

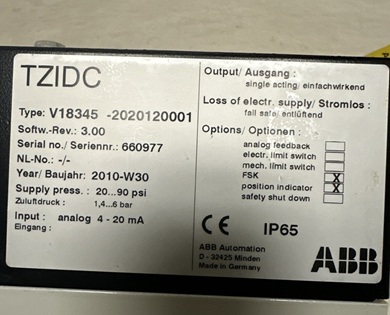

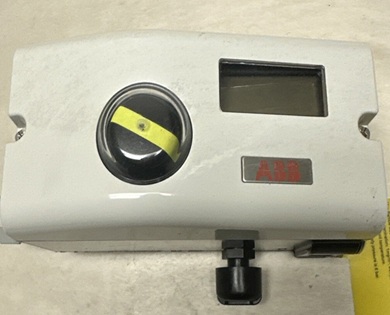

• Manufacturer: TZIDC
• Product No. :  V18345-2020120001
• V18345 -intelligent, configurable with indicator and operator pane
• Case / Mounting: 2 - Case made of aluminium, varnished protection IP 65 (NEMA 4X) for mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845 also ready for integral mounting + with mechanical position indicator
• special number: 0
• Input / communication port: 2 - FSK module for HART communication
• Explosion protection: 0 - without
• Output / safe position (in case of an electrical power failure): 1 - Single acting, fail freeze
• Connections: 2 - Cable: Thread 1/2-14 NPT / Air pipe: Thread 1/4-18 NPT
• Option modules for analog or digital position feedback: 0 - without
• Optional mechanical kit for digital position feedback: 0 -  without
• special number: 0
• VDesign (varnish / coding): 1 - Standard

There are several Model of positioner, for more details read the PDF below

Basic Ordering Information
