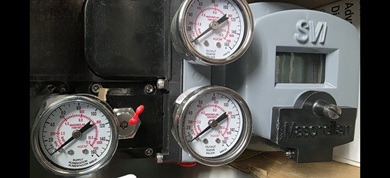

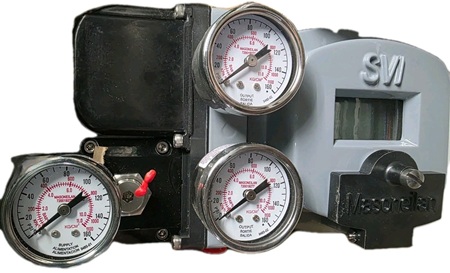

Masoneilan SVI-2 Positioner SVI-2 Series - SVI2-21123111

The Masoneilan SVI-2 features a non-contact position sensor, a universal design for both linear and rotary valves, and a field-upgradable design. It includes an external explosion-proof LCD with pushbuttons, a setup wizard for fast commissioning, and robust diagnostics with online and offline capabilities. The SVI-2 also supports various communication protocols like HART, eDDL, and DTM, and has built-in solid-state switches and a 4-20mA output for position transmission.

Key features

• Position Sensing: Uses a field-proven, non-contact position sensor for high accuracy and reliability.
• Universal Design: Can be used for both linear and rotary valve applications and is available with either a valve-mounted or remote-mounted design.
• User Interface: Features an optional, explosion-proof external LCD and pushbuttons for local setup, calibration, and monitoring without needing to expose wiring to potentially explosive areas.
• Commissioning: Includes a built-in auto-tune function for quick and accurate setup and a setup wizard for easy commissioning.
• Communications: Supports bi-directional communication via the HART protocol and is compatible with eDDL and DTM software. It can also be used with wireless HART adaptors.
• Diagnostics: Offers both online and offline diagnostics to monitor valve performance and health in real time.
• Performance: Provides fast and accurate positioning for enhanced flow control through a responsive two-stage pneumatic system.
• Switches: Includes two configurable and built-in solid-state switches that provide alerts for specific conditions.
• Output: Transmits the valve position via a 4-20mA output signal.
• Housing: Available in an industrial aluminum or stainless steel housing.

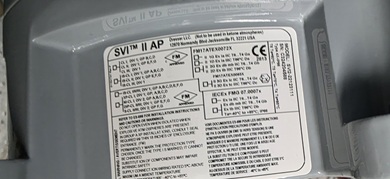

• Approvals: Features universal labeling with approvals for ATEX, USA, Canada, and IEC, among others, making it suitable for a wide range of hazardous environments.
• Field Upgrades: The modular design allows for field-upgradable options and firmware.

 Full Datasheet

Positioner Transmitter Feature

• Manufacturer: Masoneilan SVI-2
• Product No. : SVI2-21123111
• SVI2 - Digital Valve Positioner
• Diagnostics: 2 - SD Version – Standard Diagnostics
• Pneumatic Train / Capacity / Fault State: 1 - Single Acting,
• Volume Capacity: 1 - High Flow Cv 2.6
• LCD Interface / Housing Material: 2 - With Display and Pushbuttons
• Electronics: 3 - 4-20mA - 4-20mA - Loop Powered
• Communications: 1 - 4-20mA Loop Powered with - HART Communications
• Options: 1 -NONE
• Hazardous Area Certification:1 - ATEX / FM / FMc / IEC Intrinsic Safety & Explosion Proof

There are several Model of positioner, for more details read the PDF below

Basic Ordering Information
