MTL Barries - MTL4531 -  VIBRATION TRANSDUCER INTERFACE

. It repeats the signal from 3-wire sensors like eddy-current probes and accelerometers or 2-wire current sensors. The device uses a backplane to provide power and safe-area connections while the hazardous-area connections plug into the front, simplifying installation and maintenance..

Working principle

• Signal isolation: The core function is to provide galvanic isolation between the hazardous and safe areas. This ensures that any fault in the safe area cannot cause a spark or explosion in the hazardous area.
• Signal repetition: The MTL4531 takes the signal from the vibration sensor (e.g., a 3-wire accelerometer or a 2-wire current sensor) in the hazardous location and "repeats" it as a clean, reliable signal to the monitoring system in the safe area.
• Power and connection: A backplane provides the power supply and connections for the safe-area side. The hazardous-area connections are made on the front of the module, which simplifies installation and maintenance procedures.

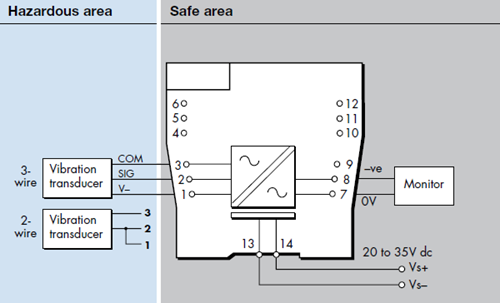

• Hazardous area connection: It connects to the vibration sensor in the hazardous area, which is compatible with both 3-wire probes and accelerometers and 2-wire current sensors.
• Safe area connection: The module outputs a signal to a monitoring system in the safe area, which could be a Distributed Control System (DCS) or other control or data acquisition system.
  Intrinsic safety: The device functions as an intrinsic safety solution, which works by limiting the electrical energy in the hazardous area to a level that is not enough to cause a spark or explosion.

VIBRATION TRANSDUCER INTERFACE

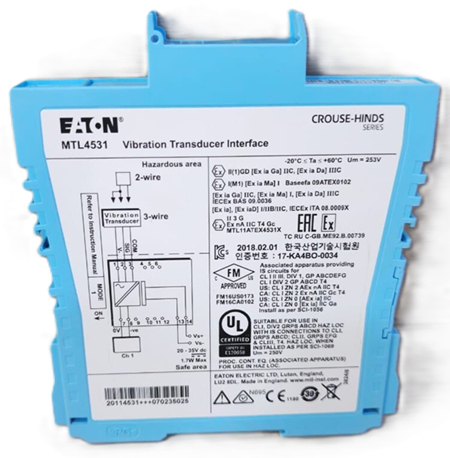

The MTL4531 is a single-channel intrinsically safe (IS) galvanic isolator module designed to safely connect vibration sensors (probes, accelerometers, or 2-wire current sensors) located in a hazardous area to monitoring systems in a safe area.
Its working principle revolves around providing isolation between the two areas while repeating the sensor's signal, power, and frequency information.

Working Principle

• Intrinsic Safety (IS) & Galvanic Isolation: The core function is to ensure intrinsic safety. It uses galvanic isolation (meaning no direct electrical connection) to prevent the transfer of dangerously high voltage or current from the safe area (where control systems and power supplies are) to the hazardous area, thereby preventing the ignition of flammable gases or dust.
• Signal Conversion/Repeating:

• The module provides a low-energy supply voltage to power the vibration sensor/transducer in the hazardous area.
• It receives the sensor's output signal (voltage or current, depending on the sensor type configured via a switch on the module).
• It then accurately repeats or transfers this signal (voltage and frequency characteristics) to the output terminals in the safe area for a monitoring system (like a PLC or DCS input channel) to read and interpret.

• System Compatibility: The module is designed to be compatible with standard industrial vibration sensors, specifically 3-wire eddy-current probes, accelerometers, or 2-wire current sensors.

Key Features and Function

In summary, the MTL4531 acts as a safe, isolated buffer, allowing sensitive monitoring equipment to interface with field instruments in explosive atmospheres without compromising safety standards. More detailed specifications and installation information can be found in the official Eaton MTL4531 datasheet and safety manual.
