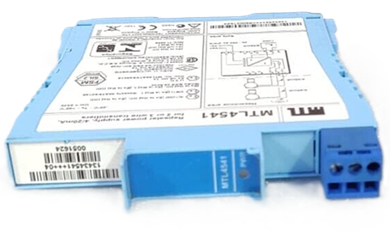

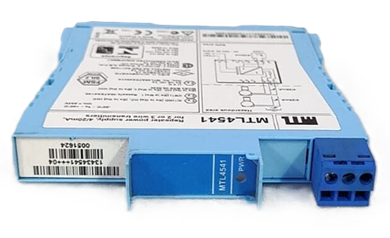

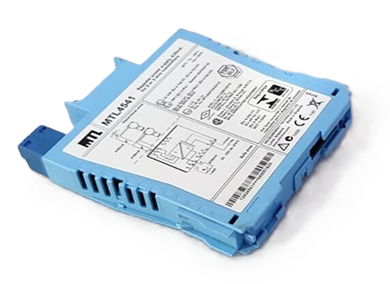

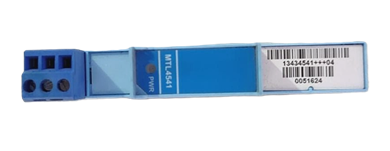

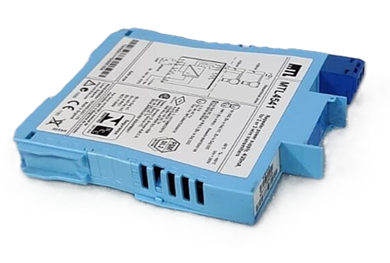

MTL Barries - MTL4541 -  REPEATER POWER SUPPLY

(4/20mA, HART®, 2- or 3-wire transmitters)

The MTL4541 is an intrinsic safety barrier (repeater power supply) that powers 4-20mA transmitters in hazardous areas and isolates/repeats their signal to a safe area, using galvanic isolation to prevent sparks, allowing for bidirectional HART communication on the same loop, and featuring LED status indicators for diagnostics, making it ideal for oil & gas, chemical, and pharma process control. Its core principle involves sourcing power from the safe area (or its own supply), delivering it to a field transmitter, then isolating and faithfully reproducing that 4-20mA current (plus digital HART data) to a safe-area load, ensuring safety and reliable data transfer.ance..

Key Working Principles:

1. Power Sourcing & Isolation:

• It provides a floating DC power supply (up to 16.5V) to energize 2- or 3-wire 4/20mA transmitters located in hazardous zones (like Zone 0).
• Galvanic isolation separates the hazardous area circuit from the safe area, preventing fault energy from reaching the field.

2. Signal Replication:

• The device repeats the 4-20mA current from the field transmitter into a separate, isolated circuit for a safe-area load (like a PLC or DCS input card).
• The standard MTLx541 model drives the current into a load, while the MTLx541S acts as a current sink (for different load types).

3. HART Communication Support:

• It allows digital HART (Highway Addressable Remote Transducer) signals to be superimposed on the 4-20mA loop current, enabling two-way communication (e.g., for configuration or diagnostics) without needing extra wires.

4. Intrinsic Safety:

• By limiting voltage and current, it keeps electrical energy below the ignition level for explosive atmospheres, certified for use in hazardous locations (e.g., IIC/T4-6).

5. User Interface:

• Features include LED indicators for quick status checks (e.g., power, fault) and configuration switches, simplifying installation and diagnostics

In Simple Terms:

Think of the MTL4541 as a smart, safe gatekeeper: it gives power to a sensor in a dangerous area, reads its 4-20mA signal (and any digital messages), and then sends that information safely across an isolated barrier to your control room, ensuring nothing dangerous sparks in the field.

VIBRATION TRANSDUCER INTERFACE

The MTL4541 is a single-channel, intrinsically safe
repeater power supply that provides power to a hazardous-area 2- or 3-wire transmitter and then galvanically isolates and repeats the resulting 4-20mA analog signal to a safe-area control system.

Working Principle

The primary function of the MTL4541 is to safely bridge the hazardous area (where the field instrument is located) and the safe area (where control systems like PLCs/DCS are located)..

1. Power Provision (Hazardous Area Side): The unit receives power from the safe area side and provides a fully-floating DC power supply (approx. 16.5V at 20mA) to energize conventional 2- or 3-wire 4-20mA transmitters (e.g., pressure or temperature sensors) located within the hazardous zone.
2. Signal Conditioning and Isolation: The current signal (4-20mA) from the transmitter flows back into the MTL4541. The module then uses galvanic isolation to ensure there is no direct electrical connection between the hazardous and safe area circuits. This prevents dangerous voltage or current levels from the safe area from reaching the explosive atmosphere.
3. Signal Repetition (Safe Area Side): The isolated current is precisely repeated in a separate, floating safe-area circuit to drive the load (e.g., a PLC analog input card or a chart recorder). The maximum safe-area load resistance is typically up to 450Ω.
4. HART Communication Support: For smart transmitters utilizing the HART communication protocol, the MTL4541 allows bi-directional digital signals to be superimposed on the 4-20mA analog current loop, enabling device configuration and diagnostics without interrupting the primary signal.

Key Features Summary

• Function: Repeater Power Supply / Galvanic Isolator.
• Signal Type: 4-20mA analog input.
• Safety Certification: Intrinsically Safe (IS) design, certified for use in Zone 0, 1, and 2 hazardous areas, and assessed for functional safety applications up to SIL 3.
• Mounting: DIN rail mountable for easy integration into control panels.

For detailed technical specifications, you can refer to the official Eaton MTL4541 datasheet or the MTL safety manual.
