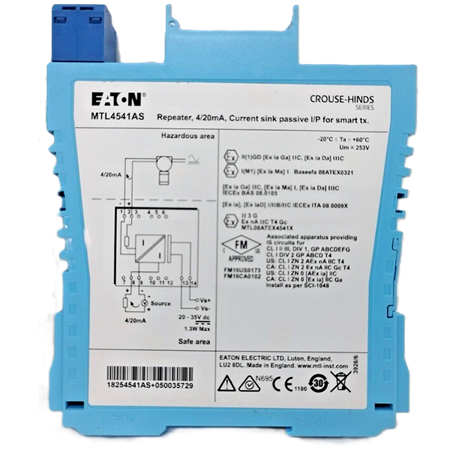

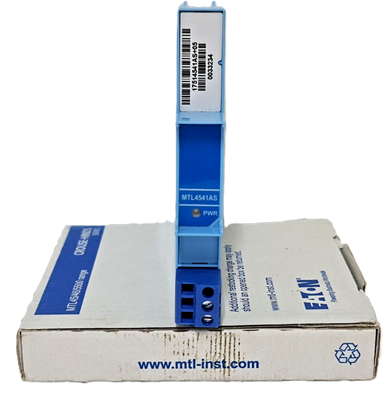

MTL Barries - MTL4541AS -  CURRENT REPEATER

(4/20mA passive i/p for HART® transmitters)

The MTL4541AS is an Intrinsically Safe (IS) (IS) Current Repeater/Isolator, acting as a galvanic barrier, that takes a 4-20mA signal from a hazardous area, isolates it, and transmits a precise, scaled copy (or acts as a sink) to the safe area, supporting HART communication, designed for functional safety (SIL2 capable) in explosive environments by preventing sparks through energy limitation, allowing 4/20mA loops to cross hazardous/safe area boundaries reliably.

Working Principle (Current Repeater/Isolator)

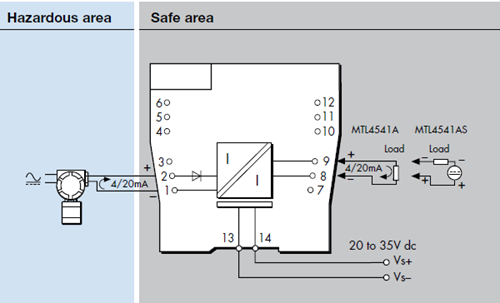

1. Hazardous Area Input: A 4-20mA signal from a field transmitter (like a pressure or temperature sensor) enters the MTL4541AS's hazardous area terminals (terminals 1 & 2).
2. Galvanic Isolation: The device uses optical or transformer isolation (often "One-Core" tech in MTL) to completely separate the hazardous area circuit from the safe area circuit, preventing sparks.
3. Signal Scaling & Repeater Function: It receives the input current and creates an identical, scaled output current (typically 4-20mA) on the safe area side (terminals 3 & 4).
4. HART Support (MTLx541A/AS): It allows bi-directional digital HART communication signals to superimpose on the 4-20mA analog loop, enabling diagnostics without disrupting the main signal.
5. 'S' Version (MTL4541AS): The 'S' denotes a Current Sink function, meaning it draws current from the safe area loop rather than driving it, offering flexibility for different system designs.
6. intrinsic Safety: Energy (Voltage & Current) is strictly limited to safe levels (e.g Uo =28V , Io =93mA) ensuring it cannot ignite flammable atmospheres, meeting IEC 61508 standards for safety.
7. Line Fault Detection (LFD): It can detect open-circuit (o/c) or short-circuit (s/c) conditions in the field loop and repeat these faults to the control system as specific current signals (e.g., 0mA or >24mA), enhancing system awareness.

In essence, it bridges hazardous and safe areas, ensuring process data (4-20mA + HART) is accurately and safely transferred, preventing ignition by limiting energy, and providing diagnostic information.

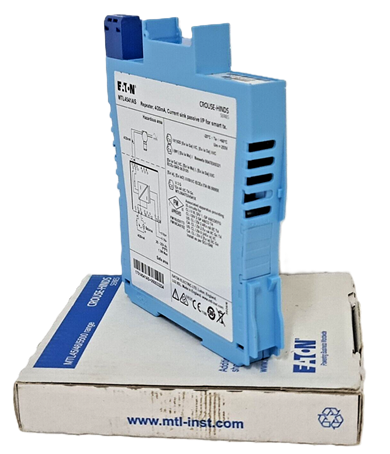

CURRENT REPEATER - (4/20mA passive i/p for HART® transmitters)

The MTL4541AS is a single-channel, backplane-mounted intrinsic safety (IS) current repeater that operates on the principle of galvanic isolation. Its key working principle distinction is that it acts as a current sink for the safe-area connection, rather than driving current into the load, for use with a safe-area controller that provides the power.

Core Principles

• Intrinsic Safety (IS): The primary purpose of the MTL4541AS is to prevent explosions in hazardous areas by limiting the electrical energy (voltage and current) that can enter those areas to a level insufficient to ignite flammable gases or dusts. This allows for "live maintenance" in the hazardous area without needing a gas clearance certificate.
• Galvanic Isolation: The module uses innovative planar transformer technology to provide full isolation between the hazardous-area circuit and the safe-area control circuit. This eliminates the need for a high-integrity earth connection required by zener barriers and avoids earth-loop problems, simplifying installation.
• Current Sinking: Unlike the MTL4541A variant which provides power to the hazardous area transmitter, the 'AS' variant is designed to be a passive input from the perspective of the safe-area system. The safe-area control system provides the power and expects the MTL4541AS to modulate the current (sink) in the loop according to the hazardous-area input signal.

Signal Transmission

The module repeats a 4–20mA current signal from a separately powered transmitter in the hazardous area to the safe area.

• Input (Hazardous Area): It connects to a 4-20mA transmitter in the hazardous area.
• Output (Safe Area): The module sinks current from the safe-area connection, providing an isolated 4-20mA signal to the host system's analogue input card.
• HART Communication: It allows for the bi-directional transmission of Highway Addressable Remote Transducer (HART) communication signals superimposed on the 4-20mA loop current.

Additional Features

• Line Fault Detection (LFD): The unit can detect open-circuit or short-circuit conditions in the field wiring by monitoring currents outside the normal 4-20mA range (e.g., below 3.6mA or above 21mA).
• Functional Safety: The device is assessed for use in IEC 61508 functional safety applications and is rated as SIL2 capable for a single device in a safety instrumented system.
