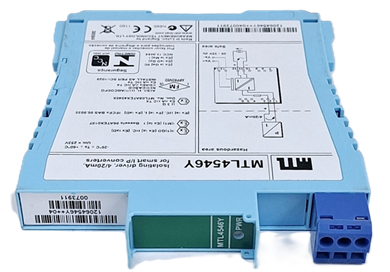

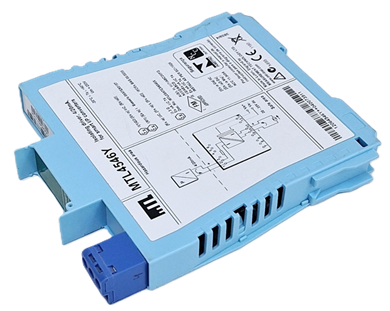

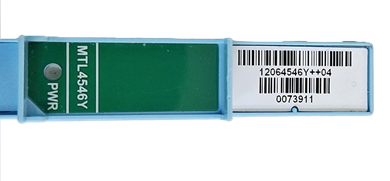

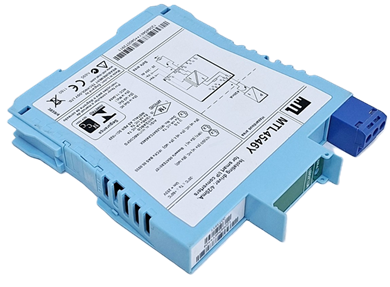

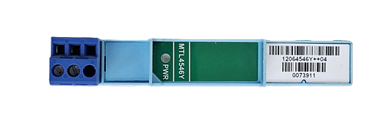

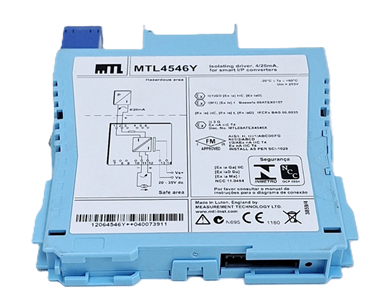

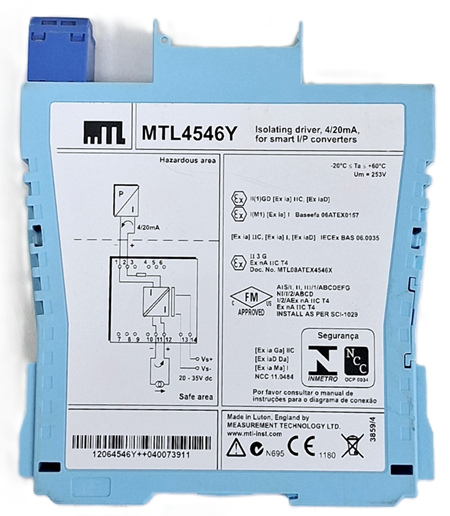

MTL Barries - MTL4546Y - ISOLATING DRIVER
(for 4–20mA HART® valve positioners with line fault detection)
The MTL4546Y is an intrinsically safe, single-channel isolating driver for 4-20mA HART® valve positioners, allowing a safe-area control signal to drive hazardous-area devices while providing line fault detection (LFD) for open circuits. Its principle involves replicating the 4-20mA signal into the hazardous area, but the 'Y' version specifically detects open-circuit faults, dropping the current to a low level (<0.5mA) for the control system to register, enabling digital HART communication and ensuring process safety in potentially explosive environments.
Working Principle Breakdown:
- Signal Input (Safe Area): Receives a standard 4-20mA floating signal from a control system (like a DCS).
Intrinsic Safety Isolation: Provides galvanic isolation between the safe and hazardous areas, limiting energy to prevent ignition.
- Hazardous Area Output: Drives a load (like a valve positioner) in the hazardous area with the same 4-20mA signal, up to 800Ω.
- HART Communication: Superimposes digital HART communication signals onto the analog 4-20mA loop for bi-directional data transfer, crucial for smart positioners.
- Line Fault Detection (LFD - 'Y' Feature): Detects open circuits in the field wiring; if an open circuit occurs, the module reduces the output current to a preset low value (around 0.5mA), signaling the fault back to the controller.
- Safety Integration: Designed for use in Safety Instrumented Systems (SIS) up to SIL 2, where its predictable behavior during faults (like dropping current on an open) helps achieve required safety levels.
| ISOLATING DRIVER - (for 4–20mA HART® valve positioners with line fault detection) |
 |
Key Function of the 'Y' Variant:
- Open-Circuit Detection Only: Unlike standard or 'C' models, the 'Y' variant focuses solely on detecting open circuits (broken wires), dropping the current to <0.5mA, making it ideal for applications where only open faults need flagging.

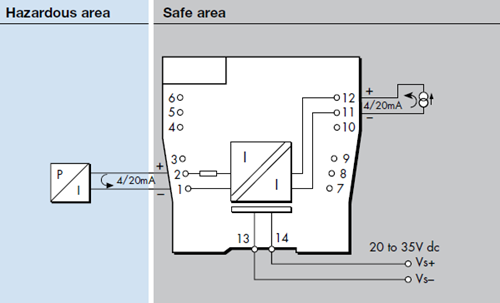

The MTL4546Y is an intrinsically safe isolating driver that accepts a 4-20mA control signal from a safe-area controller and provides an intrinsically safe, isolated 4-20mA output to drive a field device (e.g., a current/pressure converter or valve positioner) located in a hazardous area.
Its working principle revolves around three-port isolation, functional safety, and line fault detection:
- Signal Transmission: The module accurately repeats the analog 4-20mA current signal from the safe area to the hazardous area field device. The internal circuitry ensures that the output current in the hazardous area is limited to comply with explosion hazard requirements.
- Intrinsic Safety: It uses isolation techniques (optocouplers or transformers) to prevent dangerous voltage or current levels from the safe-area equipment or power supply from reaching the hazardous area, ensuring the field wiring remains intrinsically safe.
- HART Communication: The module is suitable for "smart" valve positioners using the HART (Highway Addressable Remote Transducer) protocol. It permits the bi-directional transmission of digital communication signals superimposed on the 4-20mA analog signal.
- Open Circuit Line Fault Detection (LFD): The 'Y' variant specifically provides open circuit detection only. If the current taken into the terminals drops below a preset level (typically <0.9mA) due to a break in the field wiring, the module signals this fault condition to the safe-area controller, typically via a readback facility.
The module performs a fixed function and does not have any user-configurable switches or controls. It is designed for backplane mounting and often used in safety instrumented systems (up to SIL2 capability) in process control applications.
For detailed technical specifications, you can refer to the official Eaton MTL data sheets or the safety manual.
