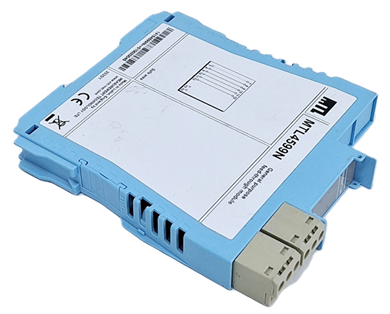

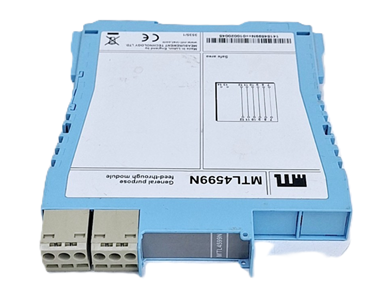

MTL Barries - MTL4599N -  DUMMY ISOLATOR

The MTL4599N is a general-purpose feed-through module for MTL4500/5500 backplanes, www.eaton.com/content/dam/eaton/products/process-safety-automation-test-and-measurement/crouse-hinds/literature/crouse-hinds-mtl4500-range-intrinsically-safety-galvanic-isolators-datasheet.pdf that acts as a simple, tidy way to route spare or non-hazardous (non-IS) field wires through the system, linking directly to the backplane connector without isolating the signals, maintaining separation between safe and hazardous area circuits and simplifying panel wiring. It provides screw terminals for field wiring that connect internally to the backplane's multiway connector, essentially providing passive, non-isolating connections for unused conductors or simple signal passthrough.

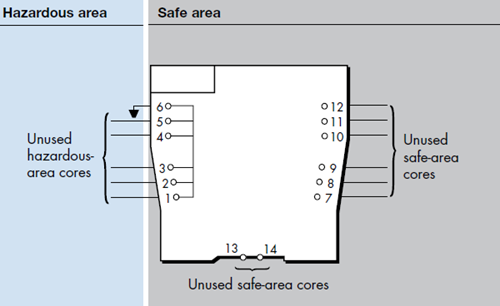

Working Principle

1. hysical Connection:PField wires (spare or non-IS) are connected to the module's top screw terminals.
2. Internal Linking: These terminals are internally wired directly to corresponding pins on the module's multiway connector.
3. Backplane Integration: The module plugs into the MTL4500/5500 backplane, allowing the field wires to pass through to the control system without needing complex isolation.
4. Signal Routing: It functions as a "dummy" isolator or bridge, allowing unused signal conductors to be organized and routed cleanly within the panel.

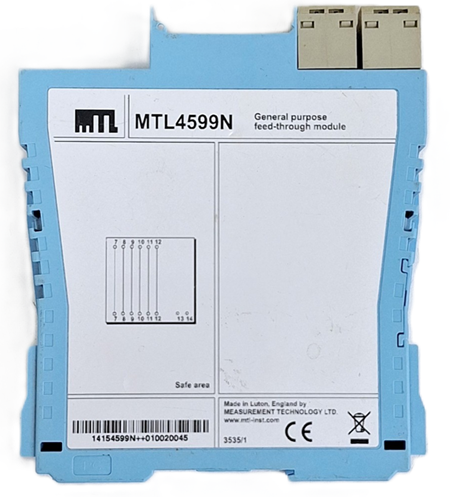

DUMMY ISOLATOR

Key Function

• Wire Management: Organizes spare conductors, preventing clutter and improving system integrity.
• Signal Separation: Maintains physical separation between hazardous-area (IS) and safe-area circuits by providing dedicated pathways, a core concept in intrinsic safety design.
• Passive Pass-Through: Offers a clean, simple route for signals that don't require intrinsic safety (IS) or galvanic isolation.

The MTL4599N is a general-purpose feed-through module, not a complex electronic device with a detailed internal "working principle" in the traditional sense. Its function is fundamentally simple, acting as a pass-through termination point for wiring within an industrial control system backplane.

Working Principle

The module operates as a physical wiring interface, essentially bridging connections between different parts of a system:

• Function: It allows non-intrinsically safe (non-IS) signals or unused cable cores from a hazardous area to be routed through an MTL4500 series backplane.

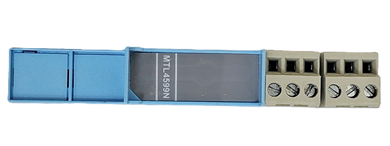

• Connections: Field wires from the process area (which could be hazardous) are connected to six screw terminals located on the top of the module.
• Pass-through: These top terminals are internally linked directly down to the multiway connector on the backplane of the control system.
• Integration: This design allows both intrinsically safe (IS) and non-IS signals to coexist on the same backplane system while maintaining the necessary physical separation and compliance with IS regulations for wiring, ensuring system integrity and tidy wiring management.

In summary, the module's "working principle" is that of a direct, wired connection point designed to facilitate safe and compliant installation practices in industrial environments.
For more technical specifications, you can refer to the official Eaton MTL4599N datasheet.

 Full Datasheet
