MTL Barries - MTL5546Y - ISOLATING DRIVER
(for 4–20mA HART® valve positioners with line fault detection)
The MTL5546 is a 4-20mA isolating driver that uses galvanic isolation to transfer signals between safe and hazardous industrial areas, acting as a 3-port barrier (input, output, power) to protect equipment by limiting energy, supporting HART communication for smart devices, and detecting line faults (open/short circuits) by dropping the current, allowing control systems to identify issues and maintain safety in intrinsically safe environments..

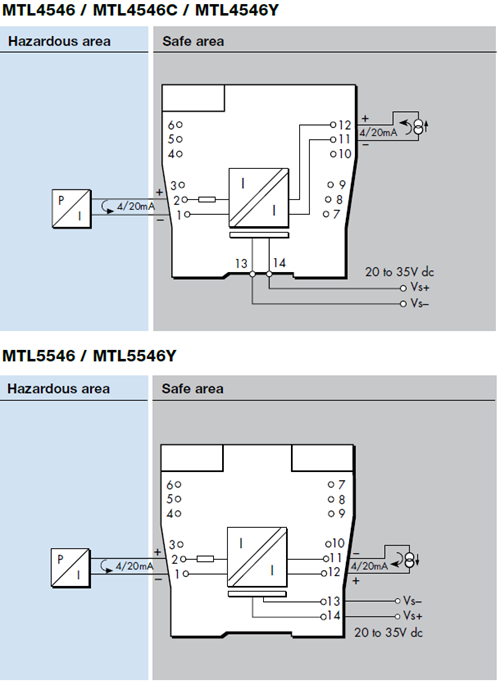

Working Principle Breakdown:
- Signal Input: It receives a standard 4-20mA floating signal from a safe-area controller (like a PLC or DCS).
- Galvanic Isolation: The device uses an isolating transformer (3-port isolation) to separate the hazardous area circuit from the safe area, preventing earth loops and energy transfer that could ignite flammable atmospheres.
- Signal Driving: It drives the current loop in the hazardous area, powering loads like current/pressure converters or smart valve positioners, handling up to 800Ω.
- HART Communication: For smart devices, it allows bidirectional digital signals (500Hz to 10kHz) to pass through, enabling interrogation and diagnostics from the control room or handheld devices.
- Line Fault Detection (LFD): If the field wiring develops a fault (open or short circuit), the MTL5546 forces the input current to a very low level (e.g., <0.9mA), which the control system recognizes as a fault and acts upon, ensuring safe shutdown or alarm.
- Output: The output mirrors the input signal (4-20mA) while maintaining isolation, with high output resistance and low ripple for accurate signal transmission.
-
| ISOLATING DRIVER - (for 4–20mA HART® valve positioners with line fault detection) |
 |

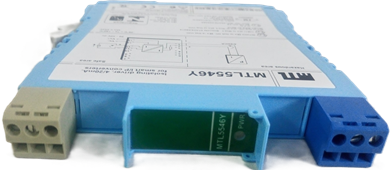

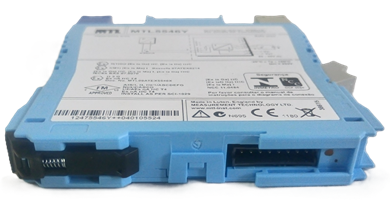

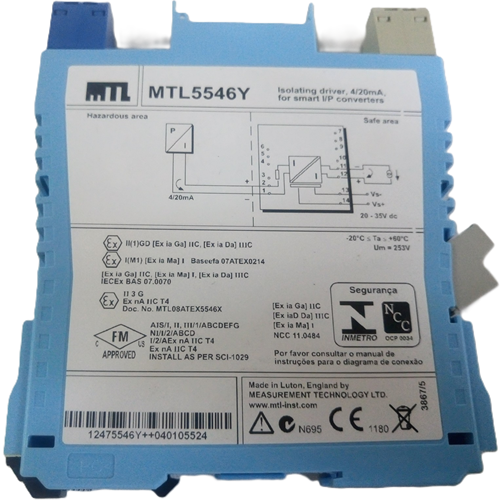

Key Features:
- Intrinsic Safety: Protects circuits in explosive environments (ATEX, IECEx, FM certified).
- DIN Rail Mount: Easy installation in cabinets.
- Power: Runs on 20-35 VDC, often powered by the signal itself.
- LED Indicator: Shows power status.
The MTL5546 is an intrinsically safe isolating driver that provides a communication barrier between control equipment in a safe area and devices (like valve positioners) in a hazardous area.
Its working principle is based on galvanic isolation and signal conversion/limiting:
- Signal Isolation: The module uses isolating transformers to provide complete galvanic isolation (3-port isolation) between the safe area, the hazardous area, and the power supply. This prevents dangerous voltages or current surges in the safe area from reaching the hazardous area, ensuring intrinsic safety.
- Signal Conversion/Transfer:
- It accepts a standard 4–20mA analog current signal from a control system (e.g., a PLC or DCS) in the safe area.
- It then repeats and drives this 4–20mA signal to a field device, such as a current/pressure (I/P) converter or smart valve positioner, located in the hazardous area.
- Current Limiting: The output current to the hazardous area is limited to comply with intrinsic safety standards, preventing the generation of sparks or excessive heat that could ignite an explosive atmosphere.
- HART Communication Support: A key feature is its ability to superimpose bi-directional digital communication signals (HART protocol) on top of the 4–20mA analog current. This allows the smart field device to be interrogated or configured remotely from the control station using a handheld communicator or the operator console.
- Line Fault Detection (LFD): The module includes a feature where if an open or short circuit occurs in the field wiring, the current drawn into the terminals drops to a preset level, allowing the safe-area controller with a read-back facility to detect the fault condition.
In essence, the MTL5546 acts as a bridge, safely transferring control and communication signals while adhering to strict intrinsic safety requirements for hazardous industrial environments. For technical specifications and datasheets, you can check resources from manufacturers and distributors like Eaton or Farnell.
 Full Datasheet
|
