MTL Barries - MTL5533 -  VIBRATION TRANSDUCER INTERFACE (2-channel)

The MTL5533 is a dual-channel vibration transducer interface that safely repeats signals from vibration sensors (like eddy-current probes or accelerometers) in hazardous zones (Zone 0/Div 1) to monitoring systems in safe areas, providing electrical isolation and signal conditioning, supporting both 2-wire and 3-wire sensors with configurable settings via switches for accurate vibration analysis in industrial settings.ance..

Working Principle Breakdown:

1. Signal Reception (Hazardous Area): The MTL5533 accepts low-level vibration signals (voltage or current) from sensors placed in hazardous environments (explosive gas/dust areas).
2. Sensor Compatibility: It's flexible, working with:

• 3-Wire Sensors: Like eddy-current probes, using terminals 3 & 1 (for power/ground) and 2 (signal).
• 2-Wire Sensors: Like some accelerometers or current sensors, with a user-selectable 3.3mA supply current.

3. Intrinsic Safety & Isolation: The device uses galvanic isolation to prevent sparks from hazardous area circuits reaching the safe area, meeting strict safety standards (ATEX, etc.).
4. Signal Conditioning: Inside the module, the analog signal is processed, amplified, and conditioned to a standard output.
5. Signal Transmission (Safe Area): The processed signal is sent to the safe area control system (e.g., PLC, DCS) as a clean, reliable analog output (voltage/current) for vibration monitoring.
6. Configuration: Switches on the module allow selection between sensor types and adjustment of parameters, simplifying setup without complex programming.

In essence, it acts as a safe bridge, converting potentially dangerous sensor signals into usable data for monitoring without compromising safety standards..

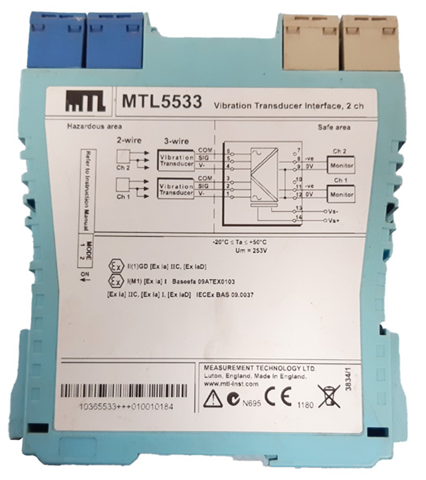

VIBRATION TRANSDUCER INTERFACE (2-channel)

Working Principle

The primary function is to provide an intrinsically safe interface for vibration sensors, ensuring that no spark or hot surface in the hazardous zone can ignite a potentially explosive atmosphere.

Key aspects of its operation:

• Signal Isolation: The module uses galvanic isolation to separate the hazardous-area circuitry from the safe-area control system. This means there is no direct electrical connection between the two areas, which simplifies installation and avoids earth-loop problems.
• Signal Conversion/Repeating: It takes the input signal from a vibration sensor (such as a 3-wire eddy-current probe, accelerometer, or 2-wire current sensor) located in the hazardous area. It then processes and repeats this signal to the monitoring equipment (e.g., a DCS or PLC) in the safe area.
• Energy Limiting: Internal circuitry (isolators) ensures that the voltage and current levels provided to the hazardous area are significantly below the energy required to initiate an explosion, fulfilling the criteria for intrinsic safety.

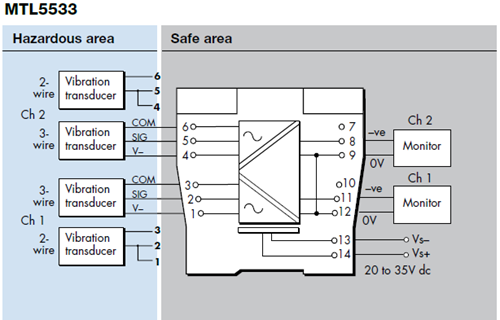

• Compatibility: The module is user-configurable via switches on the side to work with either 2-wire or 3-wire sensors, providing flexibility for different applications.
• Power: The unit itself is typically powered by a 24V DC supply in the safe area. A green LED indicates when power is present.

In essence, the MTL5533 facilitates the safe transfer of vital vibration data without compromising the integrity of hazardous area safety protocols. The specific technical details and connection diagrams can be found in the product's official datasheet from Eaton.
