MTL Barries - MTL5526 - SWITCH-OPERATED RELAY (2–channel IS–output)
The MTL5526 is a two-channel intrinsically safe (IS) relay isolator, working by galvanically isolating safe-area control signals (like on/off switches) to drive IS devices (solenoids, alarms, strain gauges) in hazardous areas, preventing explosions by limiting energy. Its principle involves two independent circuits, allowing safe-area switches to control IS loops, with options for loop-powered or contact/logic control and even a "1-in-2-out" mode, all while providing simplified DIN-rail mounting and live maintenance capability.
Key Working Principles
- Intrinsic Safety (IS) Isolation: It uses galvanic isolation, separating the safe area (control room) from the hazardous area (field) by transformers/optocouplers, preventing sparks by limiting voltage/current.
- Signal Conversion: A low-power signal (volt-free contact, logic) from the safe area is "translated" into a safe energy level for the hazardous area, driving IS devices like solenoids, LEDs, or sounders.
- Two Independent Channels: It offers two channels, each controllable by separate safe-area signals, ideal for driving two IS devices or managing two separate IS circuits.
- Flexible Control Modes:
- Loop-Powered: The device itself draws power from the hazardous area loop.
- Contact/Logic: Controlled by external contacts or logic signals from the safe area.
- Special Mode (1-in-2-out): A switch setting allows one safe-area input to trigger both outputs, useful for synchronizing alarms or testing.
- Live Maintenance: A key advantage is that instruments in hazardous areas can be serviced while energized (live), eliminating gas clearance certificates for maintenance on IS loops, says Eaton and Eaton.
- Easy Installation: DIN-rail mounting and plug-in connectors simplify setup and reduce wiring errors, according to Eaton, Automated Control and Eaton.
In essence, the MTL5526 acts as a secure, versatile bridge, letting safe-area control systems manage field devices in explosive atmospheres without compromising safety.

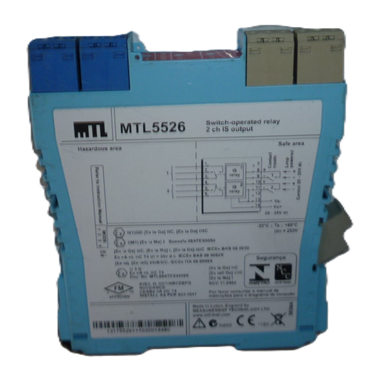

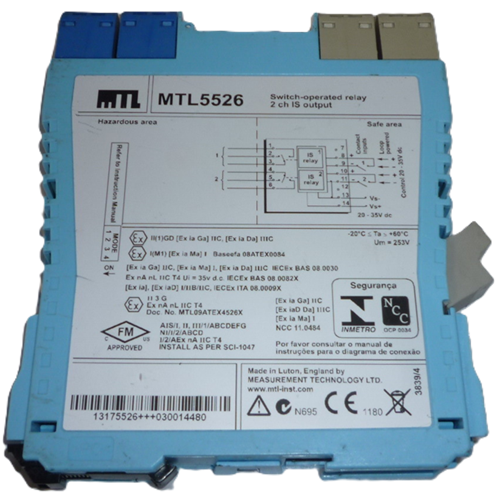

| SWITCH-OPERATED RELAY (2–channel IS–output) |
 |
The MTL5526 is a 2-channel, switch-operated relay (an intrinsically safe galvanic isolator) that enables control signals from a safe area to operate equipment in a hazardous area
.
Working Principle
The primary working principle of the MTL5526 is galvanic isolation. This means there is no direct electrical connection between the safe-area circuits and the hazardous-area (intrinsically safe or IS) circuits. Instead, signals are transferred using components like isolating transformers or opto-isolators.
Here is a breakdown of its operation:

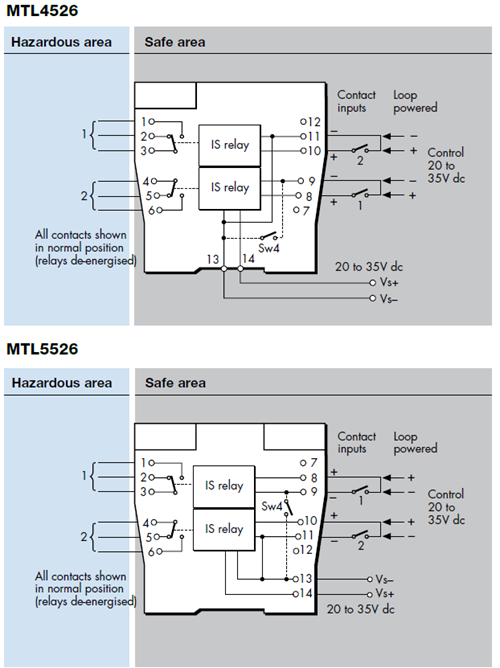

- Input (Safe Area): The module receives on/off control signals from switches or logic signals in the safe area. These inputs are suitable for switch contacts, open-collector transistors, or logic drives.
- Isolation: The input signal triggers internal circuitry that transfers the signal across an isolation barrier without transferring dangerous levels of electrical energy (voltage or current).
- Output (Hazardous Area): In the hazardous area, the isolated signal activates an output relay. The contacts of this relay are certified as "non-energy-storing apparatus," meaning they cannot store enough energy to ignite an explosive atmosphere.
- Safety: This isolation ensures that any fault (e.g., high voltage surge) in the safe-area wiring cannot propagate to the hazardous area, thus preventing explosions.
Key Features and Operation Modes
- Two Channels: It provides two independent channels for control.
- Switch Selection: The device features switches for selecting operating modes, such as "loop-powered" or "contact/logic" control, for each channel.
- 1in2out Option: A further switch option allows a single input in contact/logic mode to activate both outputs simultaneously.
For detailed technical specifications, you can refer to the official MTL4526/MTL5526 Datasheet provided by Eaton.
