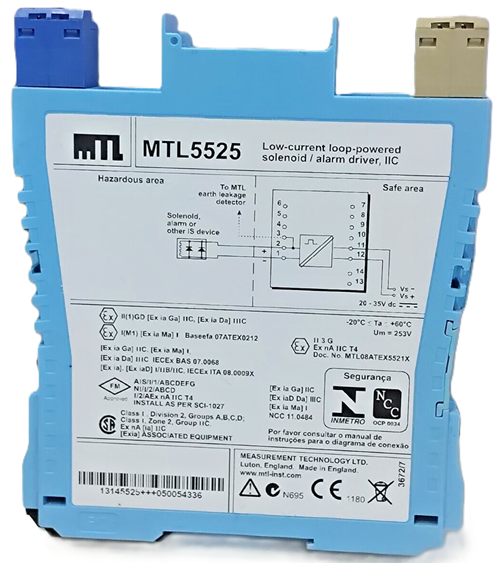

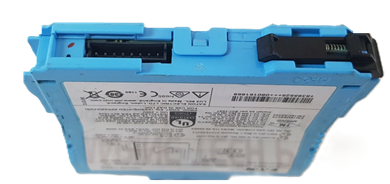

MTL Barries - MTL5525 -  SOLENOID/ALARM DRIVER

(switch operated with override, IIC, low power)

The MTL5525 is an intrinsically safe (IS) solenoid/alarm driver, a loop-powered isolator that allows a safe-area switch or logic signal to control a low-power device (like a solenoid or alarm) in a hazardous area, preventing sparks by limiting energy, while providing galvanic isolation to avoid earth loops and enabling live maintenance. Its principle involves using the safe-area input to switch power to the hazardous-area output, with a current limit (around 48mA) and voltage regulation ensuring the hazardous load stays within safe energy levels, often with an override input for safety system control.

Working Principle Breakdown

1. Intrinsic Safety (IS): It's a technique that prevents explosions by limiting electrical energy (voltage/current) in hazardous areas, allowing conventional instrumentation to be used safely.
2. Isolation: The device galvanically separates the safe area (control room) from the hazardous area (explosion-risk zone), preventing ground loops and faults from causing sparks.
3. Loop Power: The MTL5525 draws its power from the control loop itself, simplifying installation.
4. Input Control: A simple switch closure or logic signal (e.g., from a PLC or DCS) in the safe area closes the input circuit.
5. Hazardous Output: This input action switches the limited power to the hazardous-area output terminals, energizing devices like solenoids, alarms, or LEDs.
6. Current/Voltage Limitation: Crucially, the output is clamped (e.g., to 7.8V at 48mA), ensuring the hazardous device receives insufficient energy to ignite flammable gases, even if it's a fault.
7. Override: An optional second input allows a safety system to disable the output, overriding the normal control signal for emergency shutdown or maintenance

In essence, it acts as a highly reliable, energy-limiting electronic switch, protecting hazardous environments while simplifying control.

SOLENOID/ALARM DRIVER (switch operated with override, IIC, low power)

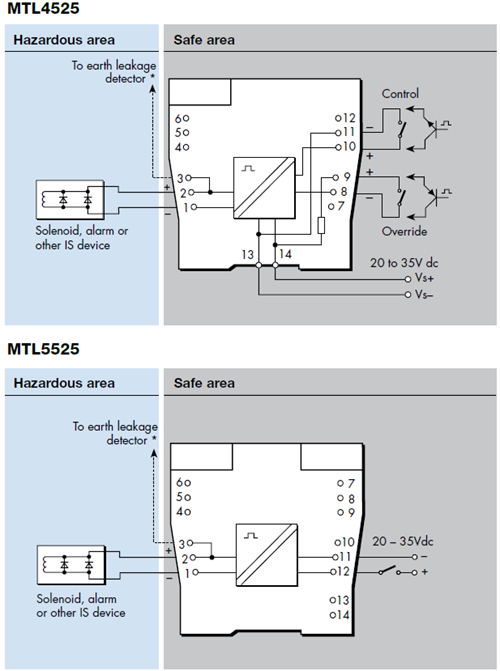

The MTL5525 is a single-channel solenoid/alarm driver (an isolating interface unit) that enables an on/off device in a hazardous area to be controlled by a switch or logic signal in a safe area. Its primary working principle revolves around intrinsic safety (IS) galvanic isolation to prevent explosions in hazardous environments.

Working Principle

The core function is to safely transmit a control signal from a non-hazardous (safe) area to a low-power device (like a solenoid, alarm, or LED) in a hazardous area, while simultaneously ensuring that the power and voltage levels in the hazardous area remain below the ignition point of the surrounding flammable atmosphere.

1. Input Signal: A volt-free contact or logic signal in the safe area acts as the control input (on/off switch).
2. Galvanic Isolation: The MTL5525 uses an internal isolating transformer to provide a complete separation (galvanic isolation) between the safe-area control circuit and the hazardous-area output circuit. This prevents dangerous voltages or current surges from the safe area from reaching the hazardous area, eliminating potential earth-loop problems and ensuring safety.
3. Current/Voltage Limiting: The unit precisely limits the voltage and current supplied to the hazardous area to specified intrinsically safe levels (e.g., maximum output current is 48mA).
4. Output: The limited, intrinsically safe power drives the connected device (solenoid, alarm, etc.) in the hazardous area. The module indicates the output status via a yellow LED.

Key Features

• Intrinsic Safety: The fundamental protection method, making it suitable for use in Zone 0, IIC hazardous areas.
• Galvanic Isolation: No direct electrical connection between the input and output circuits.
• Solenoid/Alarm Driver: Specifically designed for low-power, on/off loads.
• Override Function (if applicable to the specific model): Some models in the MTLx525 range allow a secondary input to disable the output for safety system overrides.

For detailed technical specifications, you can refer to the official MTL5500 Range Instruction Manual provided by Eaton.
