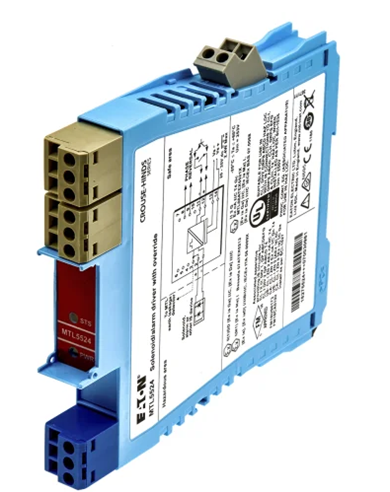

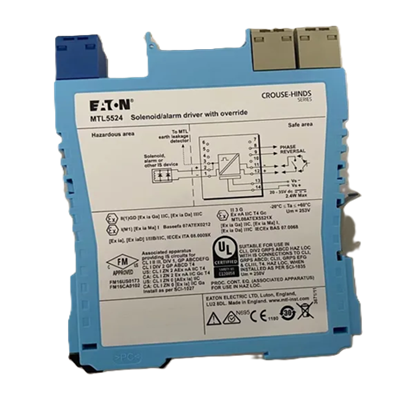

MTL Barries - MTL5524 -  SOLENOID/ALARM DRIVER

(switch operated with override, IIC)

The MTL5524 is an Intrinsically Safe (IS) Solenoid/Alarm Driver that lets a safe area's volt-free switch or logic signal control an on/off device (like a solenoid or alarm) in a hazardous area, isolating the circuits for safety using galvanic isolation. Its principle involves: a safe-area control signal activates/deactivates the hazardous-area output; it provides phase reversal via a link; and it's designed to limit energy to prevent ignition in explosive atmospheres, often using galvanic isolation to prevent earth loops.

Working Principle Breakdown

1. Galvanic Isolation: The core principle is isolating the safe-area circuit from the hazardous-area circuit, preventing dangerous energy transfer.
2. Control Input (Safe Area): A switch (volt-free contact) or logic signal in the safe zone provides the control input (e.g., closing the switch turns the output on).
3. Hazardous Area Output: The module drives an Intrinsically Safe (IS) load (solenoid, alarm) in the hazardous zone, ensuring it receives limited voltage and current.
4. Phase Reversal (MTL5524 Specific): A wire link allows the output's phase to be reversed, useful for different control logic requirements.
5. Intrinsic Safety: The design ensures that even if a fault occurs, the energy (voltage/current) delivered to the hazardous area device is below the ignition threshold for flammable gases/dusts, preventing explosions.
6. Override (MTL4524/MTLx524): While the MTL5524 has phase reversal, the related MTL4524 offers a separate override input for direct control, independent of the main input.
7.

SOLENOID/ALARM DRIVER (switch operated with override, IIC)

In Simple Terms

You use a switch in a safe location (like an office) to turn something on or off in a dangerous area (like a chemical plant). The MTL5524 acts as a safe barrier, isolating the circuits and limiting power so the switch in the safe zone can control the hazardous device without any risk of causing a spark or fire.

Working Principle

The module achieves intrinsic safety through galvanic isolation, which uses transformers to provide isolation between the safe and hazardous area circuits, eliminating the need for a high-integrity earth connection.

• Signal Conversion: It accepts a standard control input (volt-free contact or logic signal) from a control system (e.g., a PLC or DCS) located in the safe area.
• Energy Limiting: The internal circuitry limits the voltage and current supplied to the hazardous area to intrinsically safe levels (e.g., max 24V and current limited to 48mA), insufficient to ignite flammable atmospheres.
• Output Drive: This limited-energy output is used to drive a low-power "on/off" device, such as a solenoid valve, alarm, or LED, which must be certified as intrinsically safe or simple apparatus in the hazardous area.
• Isolation: The galvanic isolation ensures that ground loops are avoided and that any fault condition in the safe area (like a high voltage surge) does not propagate to the hazardous area.

Key Features Related to Operation

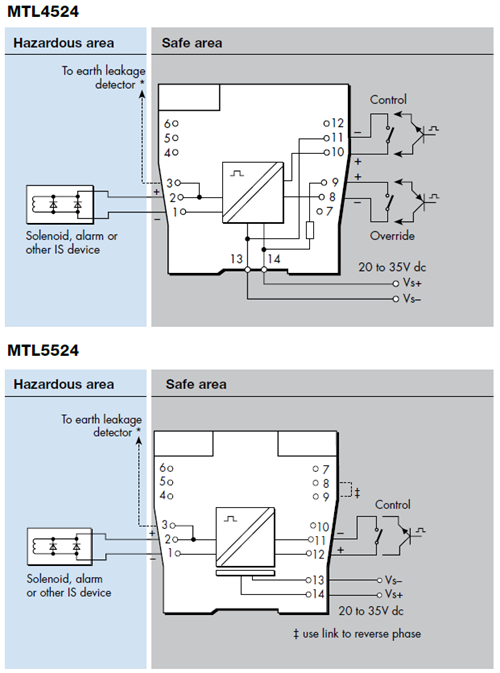

• Override Function: Unlike its counterpart, the MTL4524, the MTL5524 does not have a separate override input. Instead, its phase can be reversed by connecting a wire link between specific pins (8 and 9).
• LED Indicators: The module includes a green LED to indicate power status and a yellow LED that illuminates when the output is active, aiding in troubleshooting.

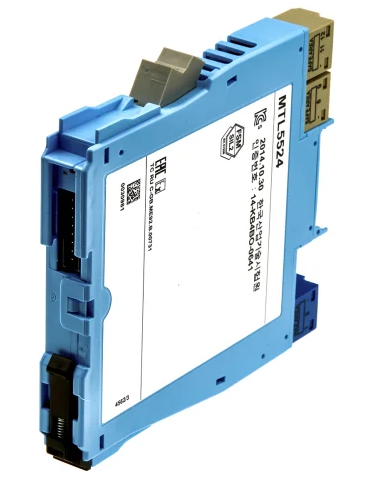

• DIN-Rail Mounting: It is designed for easy installation on a standard DIN rail, with plug-in connectors simplifying wiring.

In essence, the MTL5524 acts as a protective interface, bridging the gap between standard industrial control signals and sensitive equipment in explosive environments, all while adhering to strict safety standards like IEC 61508. More technical details can be found in the product's official datasheet from Eaton.
