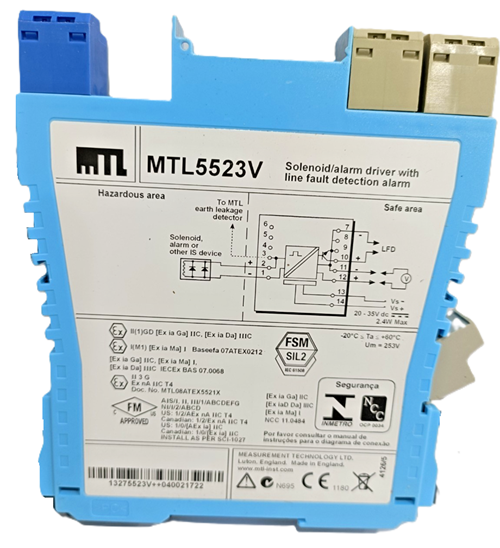

MTL Barries - MTL5523 -  SOLENOID/ALARM DRIVER (with line fault detection, IIC)

The MTL5523 is an intrinsically safe (IS) galvanic isolator that acts as a bridge, letting a safe-area control system (like a PLC) switch a hazardous-area device (like a solenoid valve) on or off, using a simple logic signal or contact closure, while providing vital Line Fault Detection (LFD) by signaling shorts or opens in the field wiring back to the safe area for enhanced safety and monitoring. Its core principle is galvanic isolation, preventing hazardous energy from crossing into the explosive zone, and it allows easy DIN rail mounting with plug-in connectors for simplified, error-free installation in process automation.

Here's a breakdown of its working principle:

• Safe Area Input: A volt-free contact or a 24V logic signal from a control system (PLC, DCS) triggers the module in the safe area.
• Galvanic Isolation: The MTL5523 uses transformer coupling (not shown in snippets but typical for IS barriers) to create electrical separation, preventing sparks or excessive energy from the safe area from reaching the hazardous zone.
• Hazardous Area Output: The module then controls the power to an IS field device (solenoid, alarm) in the hazardous area, ensuring it's intrinsically safe.
• Line Fault Detection (LFD): It continuously monitors the field wiring for open circuits (O/C) or short circuits (S/C).
• Fault Indication: If a fault occurs, the module de-energizes (or uses a separate switch in some models) to signal the fault back to the safe area, often via an LED or a safe-area solid-state switch, without relying on the output state.

Key Functions:

• Control: Switches IS solenoids/alarms from a safe-area signal.
• Isolation: Separates safe and hazardous circuits for intrinsic safety.
• Monitoring: Detects line faults (open/short) in the field loop.

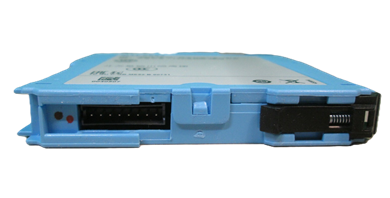

• Installation: Easy DIN rail mounting and plug-in connectors.

SOLENOID/ ALARM DRIVER - (with line fault detection, IIC)

Working Principle

The MTL5523 operates on the principle of intrinsic safety, which limits the electrical energy (voltage and current) that can enter the hazardous area, thus preventing sparks or hot surfaces that could ignite an explosive atmosphere.

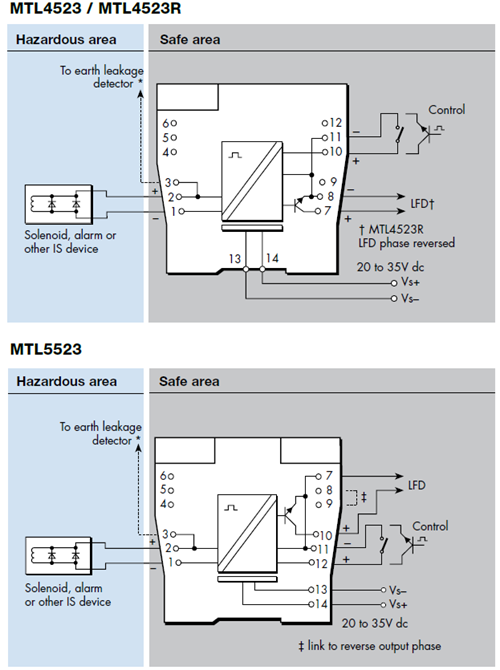

1. Signal Transmission: A control signal (either a volt-free contact or a logic signal) in the safe area is applied to the MTL5523's input terminals.
2. Isolation: The module provides galvanic isolation between the safe-area and hazardous-area circuits, eliminating the need for a high-integrity earth and preventing earth-loop problems.
3. Hazardous Area Output: The module converts the input signal into a limited, intrinsically safe output that is sufficient to drive the load (e.g., a solenoid) in the hazardous area.
4. Control:

• If the input switch is closed (or a low voltage applied, <1.4V), the output in the hazardous area turns on.
• If the input switch is open (or a high voltage applied, >4.5V), the output in the hazardous area turns off.

Key Features

• Intrinsic Safety: Designed for use in Zone 0, IIC, T4–6 hazardous areas.
• Load Driving: Suitable for driving inductive loads like solenoids, as well as alarms.
  Line Fault Detection (LFD): The unit constantly monitors the field wiring for open or short circuits, irrespective of the output state. A separate solid-state switch signals any detected line fault back to the safe-area control system.

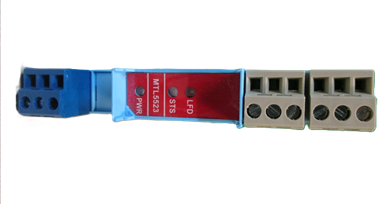

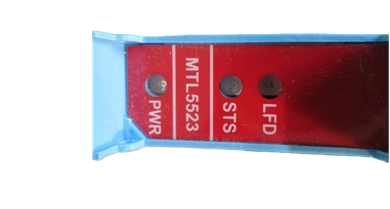

• LED Indicators: Onboard LEDs provide visual status indication for power (green), output status (yellow), and line fault detection (red).
