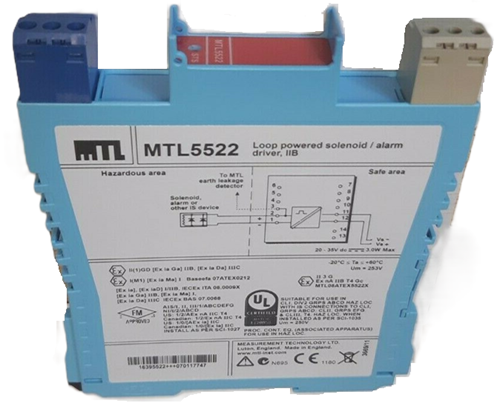

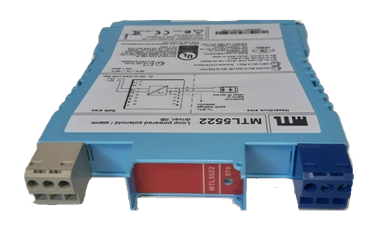

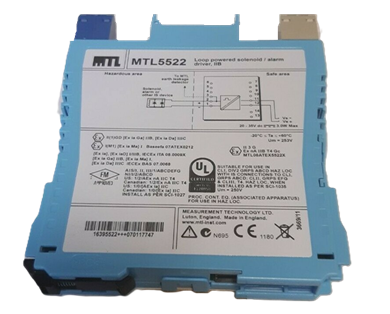

MTL Barries - MTL5522 -  SOLENOID/ALARM DRIVER (loop-powered, IIB)

The MTL5522 is a loop-powered galvanic isolator that safely interfaces hazardous area (like explosive gas zones) switches or sensors with safe area control systems (PLC/DCS) by providing intrinsic safety (IS), preventing sparks; its core principle involves using 3-port isolation and low-power design (powered by the loop itself) to drive intrinsically safe loads (LEDs, solenoids) while detecting line faults (open/short circuits) for enhanced safety and simplified wiring in process plants.

Working Principle Breakdown:

• 1. Galvanic Isolation: Uses transformers (like the isolating transformer in its "One-Core" tech) to separate the hazardous and safe area circuits, preventing earth loops and ground faults.
  2. Loop-Powered: Draws power from the 24V DC control loop itself, eliminating the need for a separate power supply in the hazardous area, simplifying installation.
  3. Hazardous Area Control: The module sits in the safe area but receives signals from the hazardous area, allowing control of low-power IS devices (solenoids, LEDs) within the hazardous zone.
  4. Line Fault Detection (LFD): Monitors the sensor/switch loop for open or short circuits, signaling these faults back to the control system for immediate action.
  5. Fail-Safe Operation: Provides electronic outputs that switch to a predetermined safe state (e.g., off) upon detecting a line fault or power loss.

In essence:

SOLENOID/ ALARM DRIVER - (loop-powered, IIB)

The MTL5522 is a single-channel, loop-powered solenoid/alarm driver that acts as an intrinsically safe galvanic isolator. Its primary working principle involves using galvanic isolation to control a device in a hazardous area from a safe area, while strictly limiting the electrical energy transferred to the hazardous area to a level that cannot ignite an explosive atmosphere.Working Principle

Working Principle

1. Galvanic Isolation: The core principle of the MTL5522 is galvanic isolation, which provides a complete electrical separation between the safe-area control circuit and the hazardous-area field circuit. This is achieved using transformers or optical isolators within the module, meaning there is no direct electrical connection between the input and output terminals.
2. Energy Limiting: By using isolation techniques instead of Zener barriers, the module precisely limits the voltage and current that can reach the hazardous area under both normal and fault conditions (e.g., accidental application of mains power).
3. Loop-Powered Design: The module is "loop-powered," meaning it draws its operational power directly from the 24V dc control signal loop in the safe area. This simplifies wiring by eliminating the need for a separate power supply connection to the module itself.

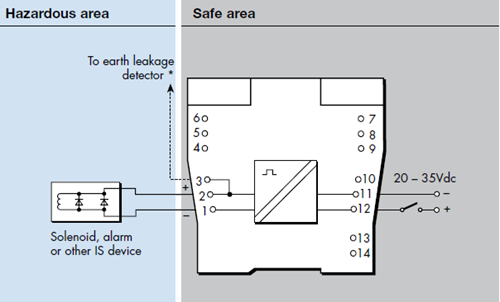

4. Signal Transmission: The input signal from the safe area (e.g., a signal from a PLC or control system) modulates the power and signal that is safely passed to the hazardous area. This allows the MTL5522 to drive loads such as a low-power solenoid valve, an alarm, or an LED.
5. Fault Avoidance: This isolation method inherently prevents ground loop problems and removes the need for a high-integrity, dedicated safety earth connection, which simplifies installation compared to traditional Zener barrier systems.
6.

Key Functions

1. Enables Control: Allows control systems in a safe area to operate devices (actuators) in a potentially explosive (hazardous) area.
2. Ensures Safety: Guarantees that the energy levels in the hazardous area remain below the ignition point of the surrounding gases or dust, adhering to intrinsic safety standards like IEC 61508.
3. Provides Isolation: Offers 3-port isolation, which allows the control switch in the safe area to be connected on either side of the supply circuit.

For detailed technical specifications and safety instructions, refer to the official MTL5522 Datasheet from Eaton.
