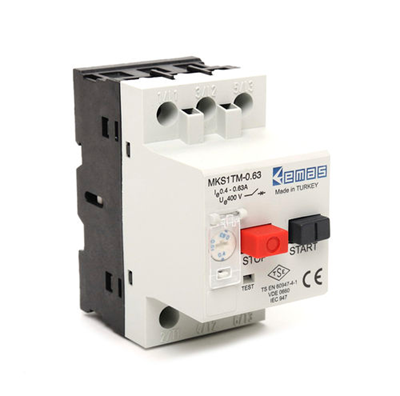

Short-circuit protection for motor relays

Short-circuit protection for motor relays involves using devices like fuses, circuit breakers (MCB (Miniature Circuit Breaker) / MCCB (Molded Case Circuit Breaker)), or dedicated motor protection relays (MPRs - motor protection relays) to instantly cut power during a low-resistance fault, preventing massive current surges that damage windings, and protecting against overloads, phase loss, and ground faults, ensuring safety and reliability by monitoring electrical parameters and tripping when preset limits are exceeded, sometimes with time delays for coordination

Miniature Circuit Breaker (MCB)

• Function: Protects lower-current circuits from overloads and short circuits.
• Current Rating: Typically up to 100 amps (e.g., 10A, 20A, 63A).
• Use: Residential homes, apartments, small offices for lighting, outlets, and small appliances.
• Features: Fixed trip curves (B, C, D), simple operation, compact size (standard module).

Molded Case Circuit Breaker (MCCB)

• Function: Protects higher-current circuits, feeders, and large equipment from overcurrents and short circuits.
• Current Rating: Higher ratings, from 100 amps up to 2500 amps or more.
• Use: Industrial plants, large commercial buildings, main distribution panels, heavy machinery.
• Features: Adjustable thermal and magnetic trip settings for fine-tuning, can be larger, and often have higher breaking capacity.

Key Similarities

• Both provide overload and short-circuit protection.
• Both can be reset manually after tripping.
• Both are essential for electrical safety, preventing fires and equipment damage.

Circuit breakers (MCB and MCCB) are automated electrical switches designed to protect circuits and equipment from damage caused by overloads and short circuits. They function by "tripping"—automatically interrupting the flow of electricity when they detect an abnormal current level.

MCB (Miniature Circuit Breaker)

MCBs are compact devices used primarily for low-voltage, low-current applications in residential and light commercial settings.

• Capacity: Typically rated for currents up to 100A–125A.
• Breaking Capacity: Can safely interrupt short-circuit currents up to 10kA–15kA.
• Tripping: Features fixed trip characteristics that cannot be adjusted.
• Usage: Commonly found in home distribution boards to protect individual circuits like lighting, sockets, and small appliances.

MCCB (Molded Case Circuit Breaker)

MCCBs are larger, more robust devices designed for higher power requirements in industrial and heavy commercial environments.

• Capacity: Ranges significantly higher, from 15A to 2500A or more.
• Breaking Capacity: Can handle much higher fault currents, typically from 10kA to 100kA+.
• Tripping: Often features adjustable trip settings (current and time delay), allowing for precise coordination with other protection devices.
• Usage: Used for main power distribution, protecting large motors, welding machines, and entire industrial systems.

Summary of Key Differences (2026)

Note: Both devices are resettable after a trip, unlike traditional fuses which must be replaced after they blow.
