UPS Boost/Equalize Charging - Working Principle

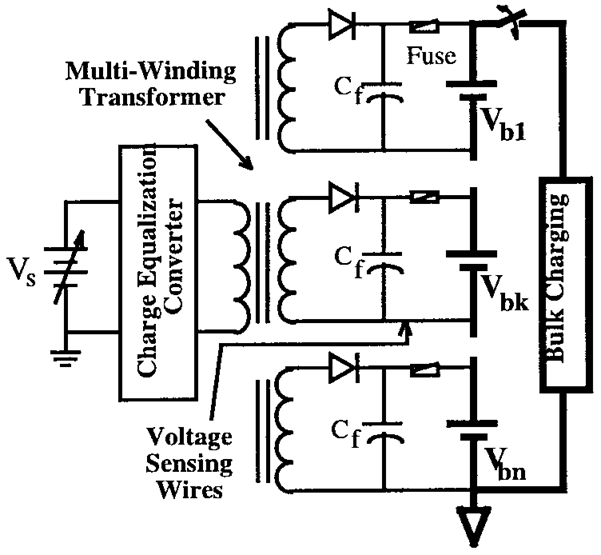

Charge equalization

Boost/Equalize charging in a UPS raises the voltage above normal float levels to rapidly replenish charge and balance individual battery cell voltages. It acts as a controlled overcharge to remove sulfate crystals

, usually charging with constant current until a specific voltage is reached, ensuring all cells are equally charged.

Key Aspects of Boost/Equalize Charging

Working Principle: The charger elevates its voltage output higher than the typical floating voltage (approx. 2.25 VPC - Volts Per Cell) to force a higher, more consistent charge across all battery cells.
Boost Charging: Primarily used for rapid replenishment of energy after a deep discharge, allowing for faster recharging times. It often involves a constant current, constant voltage (CCCV) approach.
Equalize Charging: A preventive maintenance process, usually performed every 1-2 months, to prevent, or remove, sulfation on battery plates. This involves a deliberate, controlled overcharge, often causing gassing and requiring monitoring of the specific gravity of the electrolyte.
Benefits:

Rebalances capacity differences between individual cells.
Eliminates built-up sulfate crystals.
Ensures all cells in a battery bank are fully charged.

Precautions: Equalizing should only be done on flooded/vented lead-acid batteries and can be harmful to sealed (VRLA/AGM) batteries if done incorrectly. It is important to check electrolyte levels as this process can cause water loss

Note: For many modern UPS systems, this is an automated process or one initiated by service personnel for routine maintenance.

In an Uninterruptible Power Supply (UPS), Boost and Equalize charging are specialized high-voltage modes designed to restore battery capacity and maintain health, operating in contrast to the standard Float charging mode.

Boost Charging (Rapid Recharge)

Boost charging is an accelerated charging mode used primarily after a significant discharge.

Working Principle: The UPS rectifier applies a higher constant voltage (above the standard float level) to the battery bank. This increased voltage difference forces more current into the batteries, overcoming internal resistance to "boost" the state of charge quickly.
Key Feature: It shortens the recharge time so the UPS is ready for the next power failure as soon as possible.

Equalize Charging (Cell Balancing)

Equalize charging is a controlled, periodic overcharge applied to a fully charged battery bank.

Working Principle: The UPS increases the charging voltage even further—often between 2.4V to 2.7V per cell for lead-acid batteries. This "over-voltage" ensures that even the weakest cells in a series string reach a full state of charge.
Purpose:

Removes Sulfation: Dissolves sulfate crystals that build up on plates during discharge.
Prevents Stratification: In flooded batteries, the high voltage triggers "gassing" (bubbling), which mechanically mixes the acid to prevent it from settling at the bottom.
Balance: Ensures all cells have identical voltage and specific gravity.

Comparison of Charging Modes

Mode	Purpose	Voltage Level	Duration
Float	Maintenance; compensates for self-discharge.	Low (~2.25V/cell)	Continuous.
Boost	Rapidly replenishes energy after an outage.	Medium (~2.4V/cell)	Until ~80-90% SOC.
Equalize	Balances cells and removes chemical buildup.	High (~2.5V+/cell)	Short (1–3 hours).

Warning: Equalize charging should generally not be performed on sealed VRLA (AGM/Gel) batteries unless explicitly specified by the manufacturer, as it can lead to excessive gassing and permanent damage.
