UPS In Line-Interactive - Working Principle

A line-interactive UPS is a type of uninterruptible power supply that provides both battery backup and voltage regulation, acting as a middle ground between offline and online systems. During normal operation, it uses an Automatic Voltage Regulator (AVR) to correct minor brownouts or overvoltages without switching to battery power, only engaging the inverter during total power failures, typically within 2-8 milliseconds.

Key Features and Benefits

• Automatic Voltage Regulation (AVR): Constantly stabilizes voltage fluctuations (sag/surge) without using the battery, enhancing battery lifespan.
• Faster Response Time: Faster than offline (standby) UPS, with a typical 2–8 millisecond switch time.
• Efficiency: Highly efficient operation with reduced heat generation.
• Ideal Applications: Perfect for protecting PCs, network equipment (servers, routers), and small business IT systems.
• Cost-Effective: Offers superior protection compared to standby units at a lower cost than full online systems.

How It Works

Under normal utility power, the load is powered by the grid, while the UPS filters the voltage and charges the battery. When the power fails or fluctuates outside set thresholds, the inverter takes over, providing clean AC power from the batteries.

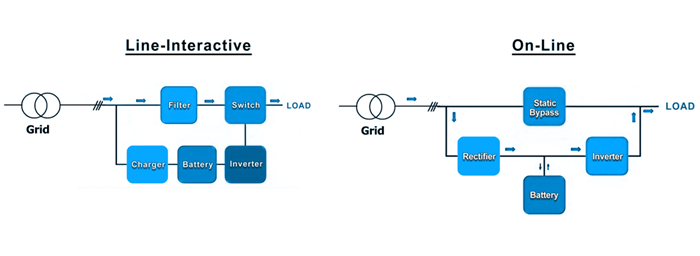

Comparison

Unlike an offline (standby) UPS, a line-interactive unit can fix voltage issues (under/overvoltage) without using the battery. Compared to an online (double-conversion) UPS, it does not provide continuous power regulation and has a small transfer time.

A Line-Interactive UPS (Uninterruptible Power Supply) is a type of power protection that bridges the gap between basic Offline (Standby) systems and high-end Online (Double-Conversion) systems.

How It Works

• Normal Mode: It filters the incoming AC power from the wall and passes it to your devices.
• Power Conditioning: It uses Automatic Voltage Regulation (AVR) to correct minor voltage fluctuations (sags and surges) without switching to battery power, which prolongs battery life.
• Battery Mode: If the power fails completely or fluctuates outside a safe range, the unit switches to its internal battery in roughly 2 to 6 milliseconds.

Key Benefits

• Efficiency: More energy-efficient and generates less heat than Online UPS models.
• Protection: Guards against brownouts, spikes, and surges better than standard standby units.
• Cost-Effective: Offers professional-level features at a price point suitable for small to medium businesses or home offices.

Best Uses

It is ideal for protecting non-critical networking equipment, departmental servers, workstations, and gaming PCs. However, for highly sensitive medical or data center equipment that requires zero transfer time, an Online UPS is generally preferred.
