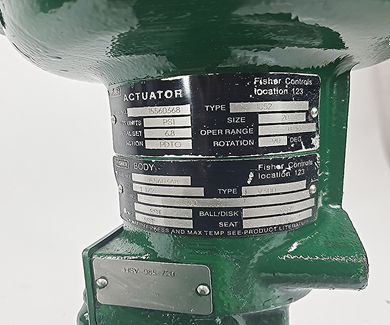

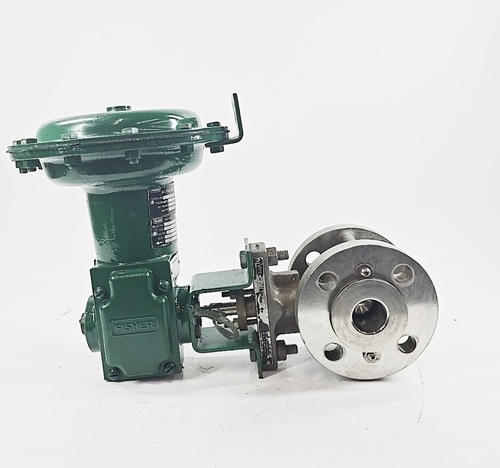

Fisher™ Vee-Ball™ V150, V200, and V300 Rotary Control Valves
This bulletin covers the DN 25 through 600 (NPS 1 through 24) V150, V200 and V300 Vee-Ball control valves. The Vee-Ball valve combines globe valve ruggedness with the efficiency of a rotary valve. The Vee-Ball valve is a segmented ball valve which features a contoured segmented V-Notch ball. A shearing action between the V-notch ball and the ball seal (figure 1) promotes smooth, nonclogging operation. The unrestricted straight-through flow design provides high capacity for gas, steam, liquids, and fibrous slurries.
Control Valve Feature
- Contoured V-Notch Ball: Features a segmented ball design with a precise V-notch that delivers a modified equal percentage flow characteristic for accurate throttling.
- Shearing Action: A cutting action between the V-notch ball and the seal prevents clogging, making it ideal for fibrous slurries, viscous fluids, and clean services alike.
- High-Capacity Flow: An unrestricted straight-through flow design provides high capacity and efficiency for gas, steam, liquids, and slurries.
- Body Constructions:

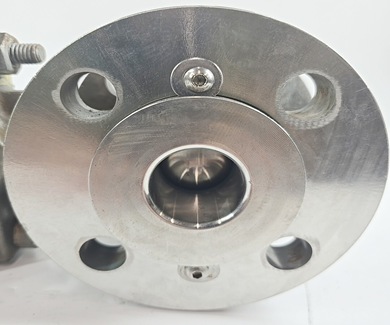

- V150 & V300: Raised-face flanged designs.

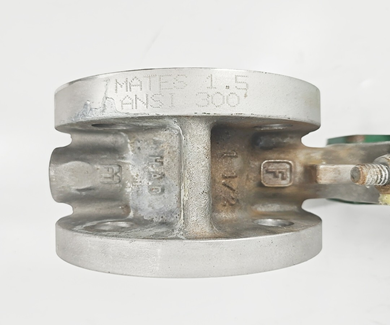

- V200: Flangeless (wafer-style) construction.
- Trim Versatility: Interchangeable internal components across the V150, V200, and V300 models help lower spare parts inventory and simplify maintenance.
- Durable Sealing Options: Available with heavy-duty (HD) metal seals or soft seal materials to match specific pressure, temperature, and fluid requirements.

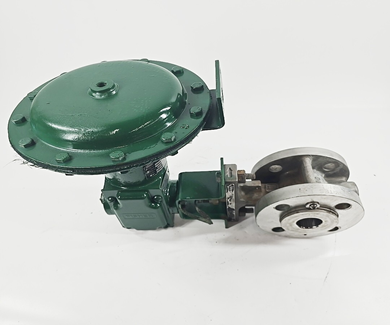

- Reliable Actuation: A splined drive shaft connects securely to a broad range of manual, pneumatic, or power-operated rotary actuators with minimal backlash.
- Compliance: Special material constructions are available to meet NACE standards for sour gas and liquid applications

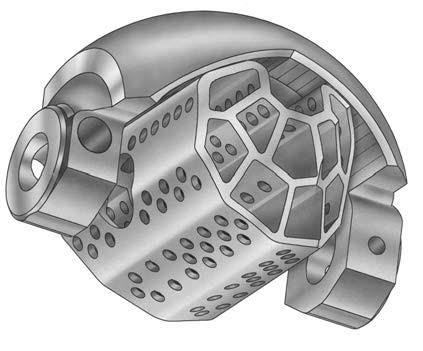

| Control Valve Internal Gauge |
 |
Internal Body Characteristic
|
VALVE DESIGN
|
VALVE BODY MATERIAL
|
SIZE
|
RATINGS
|
|
NPS / DN
|
ASME / PN
|
|
V150
|
WCC
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12, 14, 16, 20, 24x20(5), 24
|
CL150
|
|
WCC / 1.0619(1)
|
DN 80, 100, 150
|
PN 10-16
|
|
DN 200, 250, 300
|
PN 10 or PN 16
|
|
LCC
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
CL150
|
|
DN 80, 100, 150
|
PN 10-16
|
|
DN 200, 250, 300
|
PN 10 or PN 16
|
|
CF3M,(2)CF8M/1.4408(2)
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
CL150
|
|
CF3M/1.4409(1)CF8M/1.4408(1)
|
DN 80, 100, 150
|
PN 10-16
|
|
DN 200, 250, 300
|
PN 10 or PN 16
|
|
R50550
|
NPS 1, 1-1/2, 2, 3, 4, 6
|
CL150
|
|
CG8M
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12, 14, 16, 20, 24x20(5), 24
|
|
CW2M
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
|
M35-2
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8
|
|
CD3MN(3)
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
|
CD3MWCuN(3)
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
|
CK3MCuN
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
|
V200(4)
|
WCC, LCC, CG8M, or CF3M(2)
|
NPS 1, 1-1/2, 2
|
CL150/300/600 flangeless
|
|
NPS 3, 4
|
CL150 and CL300/600
flangeless
|
|
NPS 6, 8
|
CL150/300 and CL600
flangeless
|
|
NPS 10
|
CL150/300/CL600
flangeless
|
|
WCC, LCC, or CG8M
|
NPS 2, 3, 4, 6, 8, 10
|
CL600
|
|
WCC/1.0609(1)
|
NPS 2, 3, 4, 6, 8, 10
|
CL600
|
|
CF8M/1.4408(2)
|
DN 50, 80, 100, 150, 200
|
PN 63-100
|
|
CW2M, M35-2, or CK3MCuN
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8
|
CL150/300/600 flangeless
|
|
CK3MCuN
|
NPS 10
|
CL150 flangele
|
|
V300
|
WCC
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12, 14, 16, 20, 24
|
CL300
|
|
WCC / 1.0619(1)
|
DN 25, 40, 50
|
PN 10-40
|
|
DN 80, 100, 150
|
PN 25-40
|
|
DN 200, 250, 300
|
PN 25 or PN 40
|
|
LCC
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
CL300
|
|
DN 25, 40, 50
|
PN 10-40
|
|
DN 80, 100, 150
|
PN 25-40
|
|
DN 200, 250, 300
|
PN 25 or PN 40
|
|
CF3M(2)CF8M/1.4408(2)
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
CL300
|
|
CF3M/1.4409(1)CF8M/1.4408(1)
|
DN 25, 40, 50
|
PN 10-40
|
|
DN 80, 100, 150
|
PN 25-40
|
|
R50550
|
NPS 1, 1-1/2, 2, 3, 4
|
CL300
|
|
CF3M/1.4409(1)CF8M/1.4408(1)
|
DN 200, 250, 300
|
PN 25 or PN 40
|
|
CG8M
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12, 14, 16, 20, 24
|
CL300
|
|
CW2M
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8
|
|
M35-2
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8
|
|
CD3MN(3)
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
|
CD3MWCuN(3)
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
|
CK3MCuN
|
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
|
|
1. WCC and EN Stl 1.0619 are dual certified. CF3M and EN SST 1.4409 are dual certified. CF8M and EN SST 1.4408 are dual certified.
2. CF3M is offered in Europe and Asia Pacific. CF8M / 1.4408 is only offered in Europe.
3. NORSOK compliant materials available upon request.
4. Flangeless V200 assemblies mate with raised-face flanges.
5. Valve body mates with NPS 24 ASME CL150 flanges. Internal based on NPS 20 valve design.
|
