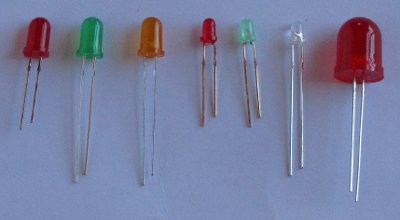

The symbol for an LED used in circuit diagrams is shown here:

LED Polarity

An LED has a positive lead know as the anode and a negative lead known as the cathode. An LED must be connected in a circuit the right way around – observe the polarity of the LED.

The way that the schematic symbol of the LED maps to the physical LED is shown in the diagram below:

On the physical LED, the longer lead (or leg) of the LED is the anode. The cathode is marked on the rim of the LED body with a flat area shown in the diagram.

Another way to tell which lead is the anode and which is the cathode is to look at the two plates at the end of the leads inside the body of the LED. The bigger plate will be the cathode.

Tips and Hints

Never connect an LED directly across a battery or other power source – it will burn out. LEDs must always be connected in series with a resistor.

 LEDs are diodes which means that current can only flow through an LED from the anode to the cathode and not the other way around.

 If an LED is connected the wrong way around in a circuit (anode to negative and cathode to positive) it is said to be "reverse biased" and will not emit light. When connected the right way around the LED is said to be "forward biased".

 LEDs, unlike other diodes, can not withstand large reverse bias voltages.
