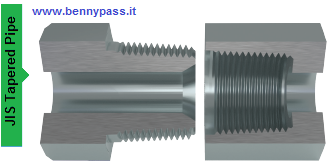

JIS Tapered Pipe Thread (PT)

 JIS Tapered Pipe (PT) has metric threads per JIS B 0203. These are JIS tapered threads and are comparable to the design of BSPT fitting connections in their dimensions and appearance. JIS tapered thread connections are interchangeable with BSPT connections. However, the male end does not have a 60° chamfer and will only seal when the threads are crushed together in an appropriate JIS or BSP port

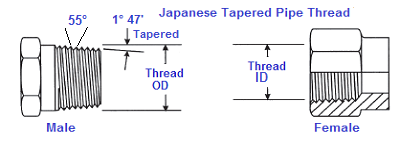

 Thread Identification Table

Identification

Both male and female have tapered threads that conform to JIS B 0203.

Seal

The seal is made within the threads through threaddistortion. A thread sealant is recommended.

Comments

The JIS tapered pipe thread is similar to a BSPT fitting and is fully interchangeable.
