JIS 30° Inverted Seat, Parallel Pipe Threads - JIS B 0202

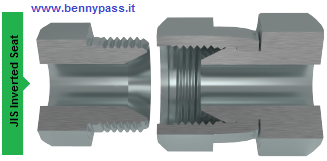

JIS 30° Male Inverted Seat connections are parallel pipe threads per JIS B 0202. JIS parallel connections are comparable to BSPP connections. JIS parallel thread connections are interchangeable with BSPP connections.

Seat and chamfer. The seal takes place by compression of the 30-degree seat on the chamfer. The threads hold the connection mechanically.

 Thread Identification Table

Identification

The JIS 30 Parallel has straight threads, conforming to JIS B 0202.

Seal

Both male and female have a straight thread and 30-degree

Comments

The BSPP fitting is fully interchangeable with the JIS 30, male inverted seat
