Japanese Komatsu 30° Flare w/ Metric Threads

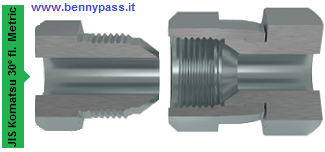

 JIS Komatsu 30° fl. metric

The JIS connector is similar to, and can be Interchanged with BSPP parallel connection. Thread conform to JIS B 0202



Thread Identification Table

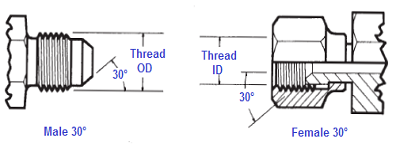

 Japanese Komatsu 30°



Dash No.

 Metric Size Equiv.

Metric Thread

 Male Thread O.D. Female Thread I.D.
mm in

mm

in
-6 9 M18 x 1.5 18 .71 16.5 .65
-8 12 M22 x 1.5 22 .87 20.5 .82
-10 16 M24 x 1.5 24 .94 22.5 .88
-12 19 M30 x 1.5 30 1.18 28.5 1.12
-16 25 M33 x 1.5 33 1.30 31.5 1.24
-20 32 M36 x 1.5 36 1.42 34.5 1.36
-24 38 M42 x 1.5 42 1.65 40.5 1.59



 Identification

Same as JIS B 0202, but conforms to JIS B 0207 with metric threads

Seal

Both male and female have a straight thread, and 30-degree seat and chamfer. The seal takes

Comments

Also known as the Komatsu® style, it is used extensively on Komatsu® equipment.
