French Metric GAZ w/24° Seat

franch fitting 24° 1

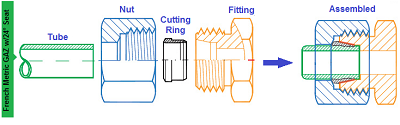

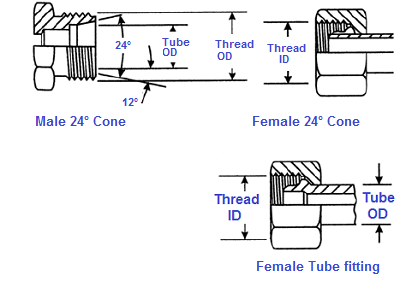

This metric connection consists of a male and two female styles, both of which seal on the 24° taper in the male end. These connections are generally found only on French made equipment.

Thread Identification Table

franch fitting 24° 2

Hose Dash Size	Thread Size	Male Thread O.D.		Female Thread I.D.		Tube O.D. “T” DIM.
Hose Dash Size	Thread Size	mm	in	mm	in	mm	in
-6	M20 x 1.5	20	.78	18.5	.73	13.25	.52
-8	M24 x 1.5	24	.94	22.5	.89	16.75	.66
-10	M30 x 1.5	30	1.18	28.5	1.12	21.25	.83
-12	M36 x 1.5	36	1.41	34.5	1.36	26.75	1.05
-16	M45 x 1.5	45	1.77	43.5	1.71	33.50	1.32
-20	M52 x 1.5	52	2.04	50.5	1.99	42.25	1.66

Identification

GAZ fittings have a 24-degree seat and straight, metric threads. While similar to DIN fittings, the French use fine threads on all sizes while the DIN fitting may have a coarse thread on the larger sizes.

Seal

The French Metric (GAZ) male with 24-degree seat will mate with the female, 24-degree cone or the female tube fitting.

Comment

The Millimetrique Series is used with whole number metric OD tubing and the GAZ Series is used with fractional number metric OD pipe size tubing.
