Fuji Transmitter

As reliability, the Fuji transmitters are one of the best on the market.

Fuji Electric's FCX series pressure transmitters, particularly the FCX-AII V5, are often considered top contenders in the field, especially for high-pressure and demanding applications like those in the oil and gas industry. Fuji's transmitters are known for their high accuracy, long-term stability, and robust construction, making them reliable for harsh environments

What are the different pressure transmitters technologies?

Among the most common technologies are piezoresistive pressure transmitters, capacitive pressure transmitters, thin-film resistive pressure transmitters and fiber-optic pressure transmitters. Each of these technologies will be described in more detail below.

Piezoresistive pressure sensor The most common type of pressure transmitter is the piezoresistive pressure transmitter . These pressure transmitters are constructed from a resistive material which changes resistance in response to applied pressure. This change in resistance can be measured and converted into a digital signal, giving the user an overview of the situation. Piezoresistive pressure transmitters can be found in a wide variety of applications, from automotive to medical devices.

Thin-film resistive pressure transmitter  Thin-film resistive pressure transmitters are another type of transmitter. These transmitters use a very thin layer of resistive material to measure the applied pressure. This layer is usually only a few hundred nanometers thick, making it highly sensitive to changes in pressure. Thin-film resistive transmitters are often used in industrial solutions, where accuracy and precision are essential.

Optical pressure sensor Another type of transmitter is pressure transmitters . These sensors use optical fibers to measure applied pressure. The principle behind these sensors is quite simple: as light passes through a fiber, its properties (such as wavelength) change according to the pressure exerted on the fiber. By measuring the change in wavelength, pressure can be accurately determined. The fibre optic pressure transmitters are often used in pressure measurement applications such as hydraulic systems and gas pipelines.

Hydrostatic pressure transmitter for level measurement  Hydrostatic pressure transmitters operate on the hydrostatic principle to provide a pressure measurement proportional to the applied head. In a hydrostatic pressure transmitter, the fluid is contained in a sealed chamber. When pressure is applied to the chamber diaphragm, it deforms the chamber walls, resulting in a change in the fluid height measurement. This change can be measured and converted into a digital signal. The hydrostatic pressure transmitter is often used in process and level measurement solutions on tanks and reservoirs.

 What are the output signals of a pressure transmitter ?

The output signals of a pressure transmitter can vary, but are usually an analog current or voltage, or a digital signal.
The analog current or voltage output signal is generally a continuous signal that varies according to the pressure applied.

 What is special about an industrial pressure transmitter ?

Industrial pressure transmitters are generally more accurate and have a longer service life than pressure transmitters consumer products.
They are also more expensive, but this is often worthwhile for applications where precise measurement is essential.

An industrial pressure transmitter can be used to measure fluid or gas pressure in a variety of environments, including factories, laboratories and other industrial facilities.
For critical pressure applications, annual calibration of pressure transmitters may be required.

What are the most common applications for industrial pressure transmitters?

Common applications for pressure transmitters include the following industrial applications:

• Pressure measurement and control
• Monitoring and displaying critical processes
• Measurement of tank filling levels and level control in tanks
• Measurement of fluid flow
• Process safety
• Pressure leak detection
• Pump control system

Pressure transmitters are used in a wide variety of applications where accuracy and precision of measurement are essential.

Let's took for example the the FCX-A2 V5 series transmitter, which accurately measures the differential pressure, level of liquid, gauge pressure or flow rate, and transmits a proportional current signal of 4 to 20mA DC.All the adjustment functions are incorporated in the transmission unit for making adjustments easily and exactly.Transmitter settings (such as range and damping time constant, etc.) can be changed from an HHC (Hand Held Communicator). The transmitter utilizes a unique micromachined capacitive silicon sensor with state-of-the-art microprocessor technology to provide exceptional performance and functionnality.The transmitter is compact and light, provide high accuracy and reliability. Local adjustment of zero and span are possible from outside screw on the electronic housing. For more details see Figure 1 below

Figure 1 - Fuji Transmitter Drawing

Specifications

Accuracy :

• ± 0.065% of the calibrated span (standard)
• ± 0.04% of the calibrated span (option)
• Long term stability : ± 0.1% max.span /10 years
• Differential pressure transmitters for static pressure : up to 1035 bar (15 000 PSI)
• Various materials available for wetted parts : Tantalum, Monel, Hastelloy C, ou PVDF
• Applications : chemicals, petrochemicals, energy, steel-making, paper, food & beverage or water treatment

Cells sensitive element : Silicon chip Micro capacitance based technology

The FCX-All V5 transmitter may be equipped with an analog or digital indicator. The digital indicator is based on LCD technology and shows the information on 2 lines each of 6 digits and also includes 3 push buttons. The indicator enables the measurement in physical units and the local configuration of the transmitter.

Main settings

• Zero/Span calibration without reference pressure service
• Linear or square root signal
• Damping
• Digital indicator configuration
• Zero/Span calibration
• Self-diagnosis
• Output circuit calibration
• Direction and value of burnout

Figure 5 - Digital Indicator

In conformance with the recommendations of NAMUR NE 43, the output of the transmitter can be driven to a specific value should the transmitter experience an internal failure. The standard output signal limits are 3.2 to 22.5 mA.
In case of a transmitter failure, the burnout direction can be down scaled (3.2 to 4 mA) or up scaled (20 to 22.5 mA), being programmable.

Figure 6 - Maintenance functions

The calibration parameters are saved in the transmitter. At any time, it is possible to come back to the factory calibration of the transmitter.
Min and max temperatures are stored in the transmitter memory.
It is always possible to visualize the values in a specific menu on the screen of the hand held communicator. All the adjustment functions of the transmitter can be locked by a password (the external adjusting screw is also locked).

Transmitter measurement diaphragm materials coating for prevention of hydrogen diffusion in the measurement cell (hydrogen sulphide) : Gold and Ceramic

Figure 7 - Double coating seal diaphragm for the prevention of hydrogen permeationn

For certain configurations, the process fluids generate hydrogen atoms that may be diffused through the metal diaphragm. The contamination of the oil associated with this diffusion degrades the transmitter’s measurement accuracy and life time. Thanks to our gold and ceramic double-coating diaphragm, the hydrogen’s permeation is stopped.

In this configuration, the transmitters may be used in Sulphur reduction installations, hydrogen production units, oil refineries and putrefaction mud treatment works.

Different materials and coatings are available for the pressure transmitter diaphragms to guarantee the longevity and reliability of your measurements. For more details, please fill the form on the main page

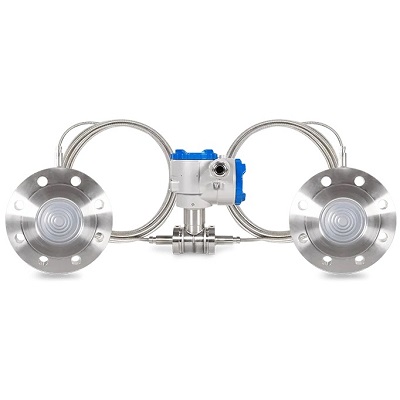

   FUJI Electric FKDT63VFBKCGY + SRJVCBY Differential pressure transmitter

FFuji Electric's FKD pressure transmitter, part of the FCX-AII V5 series, utilizes a micro-capacitive silicon sensor and digital signal processing to accurately measure differential pressure and transmit a 4-20 mA output signal. The sensor, housed within a "floating cell" design, converts pressure into a capacitance change, which is then processed by the transmitter's electronics to generate the output signal.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric
• Product No. : FKDT63VFBKCGY
• Model : FKD - Differential pressure transmitter - Smart, 4-20 mAdc + Fuji/Hart® digital signal
• Conduit connection: T - 1/2"-14NPT
• Diaphragm seal rating: 6 -  PN 50 - 300 lbs
• Spans: 3 - 0 to 3,2/320 mbar
• Indicator, arrester and initial setting: VFB: Indicator Analog, 0-100% linear scale / Arrester none  / Initial setting  4-20mA DC + Hart ® /Fuji digital signal "SMART''
• Hazardous location approvals: K - ATEX - Intrinsic Safety
• Mounting design (*3): C - Capillary on HP & LP side / Ambiant temperature correction Transmitter and diaphragm seal assembly
• Cell flange design: GY - Operating pressure (bar) p ≤ 100 bar / Bolts/nuts SS 316/SS 316 / SS tag plate Yes / SS housing Yes

Diaphragm Feature

• Manufacturer :  Fuji Electric
• Product No. :  SRJVCBY
• Model : S - Remote seal diaphragms
• Flange / Capillary connection: R - Radial - Not possible with rigid assembling design (digit 6 = "R")
• Flanges RF (Flange size and rating) : J -  ANSI-300LB 2''-ISO PN 50 DN 50
• Diaphragm seal material: V - Diaphragm SS 316 L/ Flange raised face SS 316 L / Flange SS 316 L
• Diaphragm seal design: C  - Diaphragm extension 150 mm
• Transmission diaphragm seal to measuring cell: B - Mounting design Capillary / Capillary length 3 m / Capillary design PVC protection
• Special applications and fill fluid for the diaphragm seal only: Y  - Treatment None (standard) / Fill fluid Silicone oil

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

Diaphragm Ordering Information

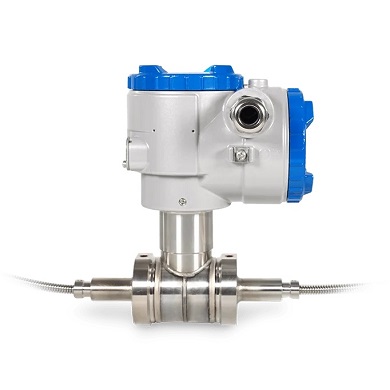

FUJI Electric  FKHT64V6PKLY0Y + SR6HYSY Pressure Transmitter

Fuji Electric's FKH absolute pressure transmitter uses a micro-capacitive silicon sensor and digital signal processing to accurately measure pressure and transmit a proportional 4-20 mA output signal. The sensor, made from a silicon chip, is designed for high reliability and stability, minimizing issues like hysteresis and mechanical fatigue. It's a direct-mounting transmitter, meaning it measures absolute pressure (with a fixed vacuum reference) and converts it into an electrical signal without needing a separate reference.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric
• Product No. : FKHT64V6PKLY0Y
• Model : FKH - pressure transmitter - Smart, 4-20 mA + HART/Fuji Electric communication protocols
• Conduit connection: T - 1/2"-14NPT
• Diaphragm seal rating: 6 -  PN 50 - 300 lbs
• Measuring range 0…min to max: 4 - 0...1.875 to 30 bar abs / 0...187.5 to 3000 kPa abs / 0. 27.20 to 435.11 psi abs
• Empty: V
• Design revision number: 6
• Indicator: P - Digital, Custom scale / Arrester none
• Hazardous location approvals: K - ATEX - Intrinsic Safety
• Assembling design: L - Rigid
• Stainless steel parts: Y - Tag plate None / Housing None
• Empty: 0
• Special options: Y - none

Diaphragm Feature

• Manufacturer :  Fuji Electric
• Product No. : SR6HYSY
• Model : S - Remote seal diaphragms
• Flange / Capillary connection: R - Radial - Not possible with rigid assembling design (digit 6 = "R")
• Flanges RF (Flange size and rating) : 6 ANSI-300 lLbs 3" / ISO PN50 DN80
• Seal diaphragm design: H Diaphragm Hastelloy-C / Flange raised face SS 316 L / Flange SS 316 L
• Diaphragm extension: Y
• Remote seal assembling characteris tics: S Rigid assembly - Not possible with digit 2 = "R", "W" - Maximum process temperature: 150 °C
• Specific applications and filling fluids for the remote seal: Y Treatment None (standard) / Fill fluid Silicone oil

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

Diaphragm Ordering Information

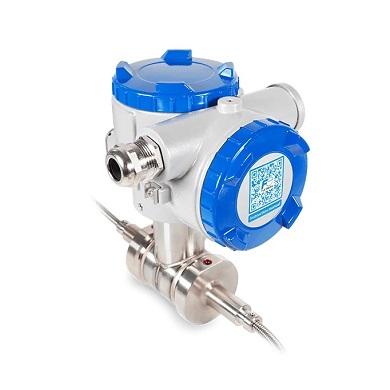

  FUJI FKBT42VFAAB1Y + SR4HYBY Pressure Transmitter

Fuji Electric's FKB differential pressure transmitter utilizes a capacitive sensor to measure the pressure difference between two points, converting it into a proportional 4-20mA output signal, with an optional superimposed digital signal. The core principle involves the deflection of a measuring diaphragm, which is part of a capacitive cell, due to the applied differential pressure. This deflection alters the capacitance, which is then converted to an electrical signal.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric
• Product No. : FKBT42VFAAB1Y
• Model : FKB - pressure transmitter - Smart, 4-20 mA + HART/Fuji Electric communication protocols
• Conduit connection: T - 1/2"-14NPT
• Diaphragm seal rating: 4 -  PN 20 - 150 Lbs
• Spans : 2 - 0 to 0.05/5 bar
• Indicator, arrester and initial setting: VFA - Indicator None / Arrester none / Initial setting 4-20mA DC + Hart® /Fuji digital signal "SMART''
• Approvals for hazardous locations (consult FUJI for availability): A - None (Standard)
• Mounting design (*5): B - Capillary / Ambiant temperature correction Transmitter and diaphragm seal assembly
• Cell flange design: 1Y -Operating pressure (bar) p ≤ 50 bar / Bolts/nuts none / SS tag plate none /  SS housing & mounting bracket none

Diaphragm Feature

• Manufacturer :  Fuji Electric
• Product No. : SR4HYBY
• Model : S
• Flanged radial diaphragm seal connection - Not possible with rigid mounting design digit 6 : code R : R
• Flanges RF (Flange size and rating) : 4 ANSI-150LB 3''-ISO PN 20 DN 80
• Diaphragm seal material: H Diaphragm Hastelloy-C / Flange raised face SS 316 L / Flange SS 316 L
• Diaphragm seal design: Y Flush mounting
• ransmission diaphragm seal to measuring cell: B Mounting design Capillary / Capillary length 3 m / Capillary design PVC protection
• Special applications and fill fluid for the diaphragm seal only: Y Treatment None (standard) / Fill fluid Silicone oil

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

Diaphragm Ordering Information

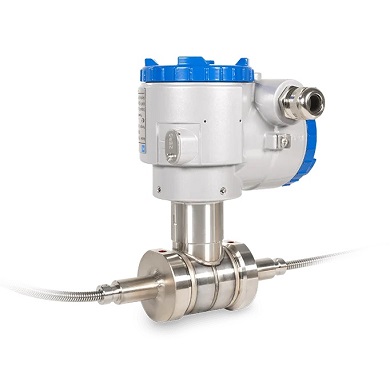

  Fuji FKCTU6H4PKCEPWWA Differential Pressure Transmitter

The differential pressure transmitter for high static pressure measures the differential pressure of a multiphase flow measurement system using a primary element. This high-precision sensor is designed to withstand the high static pressures resulting from the drilling depth of subsea wells. It withstands the extreme conditions of the marine environment and accurately measures water, oil and gas flows in topside drilling and offshore subsea production systems.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric
• Product No. : FKCTU6H4PKCEPWWA
• Model : FKC - Differential pressure transmitter - Smart, 4-20 mA + HART/Fuji Electric communication protocols
• Electrical Connections: T - 1/4"-18 NPT
• Max working pressure (static pressure): U -  0 - 1035 bar (Test pressure 1545 bar (22 408 Psi))
• Range (mbar): 6 - Min 0 - 500  / Max 0 - 5000
• Wetted parts material: H - Measuring cell wetted parts in Hast C 276 - process cover in SS316L
• Indicator Arrester Communication type: 4P -LCD, Custom scale / no Arrester / 4/20 mA - Hart TM
• Approvals for hazardous locations (consult FUJI for availability): K - Intrinsic Safety ATEX xII 1 GD - EEx ia IIC T4/T5
• Mounting bracket (SS) -  C
• Tag plate Electronics housing: E  - SS 316L
• Fill fluid: P  - Specific oil fill for cell. Wetted parts and bolting in conformity with NACE
• Welded process cover design: W
• Process cover bolts/nuts in ASTM A 453 grade 660: W
• Process connection: A  - 1/4 NPT

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
