Inconel 718
Developed in the early 1960's, IN718 is still considered the material of choice for the majority of aircraft engine components with service temperatures below 1200°F (650°C). Inconel 718 is a precipitation-hardenable nickel-chromium alloy containing also significant amounts of iron, niobium, and molybdenum along with lesser amounts of aluminum and titanium. It combines corrosion resistance and high strength with outstanding weldability including resistance to post-weld cracking. The alloy has excellent creep-rupture strength at temperatures to 1300°F (700°C). Standard Specification Common Names:
Plate, Sheet, and Coil:
Round Bar:
Chemical Composition Inconel 718
Table 1 - Chemical Composition Applications of Inconel 718
Physical Properties 718 Inconel is an alloy often used in engineering and aerospace applications requiring a combination of high strength and corrosion resistance. It has a yield strength greater than 90 ksi, making it a material preferred for components and parts requiring considerable strength. The Young’s modulus for Inconel 718 is around 28msi, resulting in good formability, ductility and weldability. Additionally, it has excellent creep-rupture properties at 1300°F and can tolerate temperature extremes ranging from -422°F to 1500°F depending on heat treatment condition. As such, Inconel 718 is often used in high-temperature engine and airframe components due to the robust physical properties that make it an ideal material for challenging engineering conditions.
Table 2 - Physical Properties Mechanical Properties This combination gives the alloy excellent mechanical properties like high tensile strength, yield strength, creep resistance, fatigue life, oxidation resistance, and corrosion resistance. The alloy also has good thermal stability, which means it can be used in temperatures up to 1300 degrees Fahrenheit without losing its mechanical or chemical properties.
Table 3 - Modulus of Elasticity
Table 4 - Thermal Properties
Work condition and Heat Resistance of Inconel 718 It also has excellent heat resistance, making it suitable for applications that involve very high temperatures, like jet engine components or combustion chambers in cars or motorcycles. The alloy is used in jet engines and high-speed airframe parts such as wheels, buckets and spacers, and high-temperature bolts and fasteners. Inconel 718 is also used in the oil and gas drilling and production industries due to its high strength and resistance to chlorides, stress corrosion and sulfide stress cracking. Within these industries, the alloy has been used for valves, pump shafts and wellhead components. Inconel 718 Slit Coil, Inconel® 718 Sheets, Inconel Alloy 718 CR Plates, WNR. 2.4668 Sheets, Inconel 718 Sheets, UNS N07718 Plates, Alloy 718 Circle, Inconel Alloy 718 Plates Distributors. The addition of molybdenum and niobium makes the alloy stiffen thus providing high strength with no heat treatment. They can be readily welded and fabricated in precipitated or annealed hardened conditions. These superalloys are made available in various dimensions, specifications, and sizes that ultimately make is suitable for marine engineering, chemical processing, and other applications too. Hot and Cold Forming Because of its strength, Alloy 718 is more resistant than most materials to deformation during hot forming. Its relative resistance is shown by pressures developed in the roll gap at 20% reduction (Table 5). It is readily hot-worked if sufficiently powerful equipment is used. Hot forming is performed in the 1650°-2050°F temperature range. In the last operation, the metal should be worked uniformly with a gradually decreasing temperature, finishing with some light reduction in the 1650°-1750°F range. This procedure is necessary to ensure notch ductility in stress-rupture applications when the material has been annealed and aged. In heating for hot working, the material should be brought up to temperature, allowed to soak a short time to ensure uniformity, and withdrawn. To avoid duplex grain structure Alloy 718 should be given uniform reductions. Final reductions of 20% minimum should be used for open-die work and 10% minimum for closed-die work. Parts should generally be air-cooled from the hot working temperature rather than water-quenched. Care should be taken to avoid overheating the metal by heat build-up due to working. Also, the piece should be reheated when any portion has cooled below 1650°F. Preheating tools and dies to 500°F is recommended. Any ruptures appearing on the surface of the workpiece must be removed at once. Data shown in Table 48 show the importance of a 1650°F-1750°F finish-forging temperature for the achievement of notch ductility in large forgings in stress-rupture applications. In these tests, a 0.75-in. square forged bar was cut into 12-in. lengths, heated to the rolling temperatures shown in Table 6 and 7, and given a 25% reduction in one pass. Following annealing and aging, specimens were ruptured tested at 1200°F and 100 ksi. Success in achieving notch rupture ductility with forgings of alloy 718 through this type of procedure has also been reported by others.
Table 5 - Pressure, ksi, Developed in Roll Gap at 20% Reduction
Table 6 - Effect of Hot-Forging Temperature on Rupture Properties (1200°F, 100 ksi)

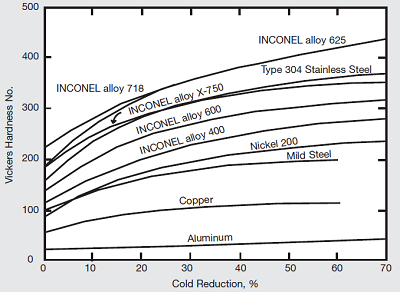

Table 7 - Effect of Cold Reduction on Properties of Sheet INCONEL alloy 718 can be cold-formed by standard procedures used for steel and stainless steel. Figure 1 below shows its rate of work hardening in comparison with other materials. The effect of cold reduction on the tensile properties of the sheet in the cold-rolled and cold-rolled and aged conditions is shown in Table 7.
Corrosion Resistance of Inconel 718 The high chromium content of Inconel 718 makes it highly resistant to corrosion from strong acids like hydrochloric acid or sulfuric acid at room temperature or elevated temperatures up to 1000°C (1800°F). Alloy 718 has excellent corrosion resistance to many media. This resistance, which is similar to that of other nickel-chromium alloys, is a function of its composition. Nickel contributes to corrosion resistance in many inorganic and organic, other than strongly oxidizing, compounds throughout wide ranges of acidity and alkalinity. It also is useful in combating chloride-ion stress-corrosion cracking. Chromium imparts an ability to withstand attack by oxidizing media and sulfur compounds. Molybdenum is known to contribute to resistance to pitting in many media.
Stress-Corrosion Cracking Alloy 718 is generally considered a highly corrosion-resistant material but can still be susceptible to stress corrosion cracking (SCC). The combination of factors leading to SCC susceptibility in the alloy is not always clear enough. For more details click here Fabrication Inconel 718 alloy can be readily machined however the strength and work toughening features should be considered while choosing and using the precise apparatus alloys and design, processing speed and quenchers. When machining in the age-toughened form, the strip offers the enhanced finish, and chip performance on the chip breaker tools are enhanced. If annealed alloy is used, it provides more convenient machining and extended tool life.
Machinability Nickel & cobalt base corrosion, temperature and wear-resistant alloys, such as Inconel 718, are classified as moderate to difficult when machining, however, it should be emphasized that these alloys can be machined using conventional production methods at satisfactory rates. During machining these alloys work to harden rapidly, generate high heat during cutting, weld to the cutting tool surface and offer high resistance to metal removal because of their high shear strengths. The following are key points which should be considered during machining operations:
Table 8 - Tool Type and Matching Conditions
Table 9 - Tool Type and Matching Conditions
Table 10 - General plasma cutting
Welding of Inconel 718 Welding can be done using several different welding processes like Gas Tungsten Arc Welding(GTAW), Plasma arc welding(PAW), Gas Metal Arc Welding(GMAW) etc., depending on the size/shape/location/thickness of the weld joint required for joining two pieces together using this material, e.g., GTAW would be preferred when welding thin sections. At the same time, GMAW would be suitable when welding thicker sections with larger weld beads, etc. INCONEL alloy 718 is readily welded by the gas tungsten arc (TIG) process using INCONEL Filler Metal 718. The composition of this filler metal is shown in Table 11. The mechanical properties of its all-weld metal specimens are shown in Table 1 above. These test data show the effect of postwelding treatment on tensile properties. The highest room temperature ductility is obtained by annealing at 1950°F prior to ageing.
Table 11 - Effect of Post Welding Heat Treatment on Tensile Properties of INCONEL Filler Metal 718 All-Weld Metal (Manual Gas Tungsten-Arc Process between 0.5-in. Plates) (Average of 2 Tests) Slow response of alloy 718 to age hardening enables parts to be welded and directly age-hardened without intermediate stress relief. Joint efficiencies very close to 100% were realized in the tests shown in Table 12; these specimens were from plate that had been annealed, then welded and aged. Better properties, however, are obtained by re-annealing after welding prior to ageing.
Table 12 - Room Temperature Tensile Properties of Welds (Aged 1325°F/8 hr, F.C. to 1150°F, Held at 1150°F for Total Aging Time of 18 Hours) Silver brazing compounds are known to cause stress cracking in nickel-based alloys. If alloy 718 is cold-worked and/or precipitation-hardened, silver brazing compounds should not be used. Also, brazing alloys containing cadmium are best avoided; while cadmium has not been shown to cause cracking by itself, it can aggravate cracking from other sources. Weld Tensile Properties Room-temperature properties of welds receiving the low-temperature anneal and/or age can be compared with the results of the high-temperature anneal and/or age in Tables 12 and 13 Additional properties of welds annealed at 1950°F/15 min. and aged at 1400°F/10 hr, F.C. to 1200°F, hold at 1200°F for a total ageing time of 20 hours are shown in Table 14. Welding was done by the manual gas tungsten-arc process, using Filler Metal 718. These welds were found satisfactory in bend tests and radiographic examination. Slightly better results were obtained when helium was used as the torch gas. The notch strength of the butt-welded sheet in both the heat-affected zone and weld is shown in Table 15. These welds were heat-treated by the low-temperature schedule. Another laboratory using the high-temperature heat treatment has found that the notch toughness of the parent metal and that of the weld metal are quite consistent and exceed a notch-to-smooth bar tensile ratio of 1.30 throughout the test temperature range of -423°F to 1200°F. Test data are shown in Table 16. The weld joint efficiency is approximately 93% at -423°F and 95% at room temperature and 1200°F. For more details regarding the welding system click here.
Weld Fatigue Properties Weldments were found to have a room-temperature fatigue strength (108 cycles) of approximately 62.5 ksi (tested in R.R. Moore rotating-beam apparatus). They were made from hot-rolled, annealed (per AMS 5596) 0.500-in. plate, joined with 0.125-in.-diameter INCONEL Filler Metal 718 by the gas tungsten arc process. Samples were aged 1325°F/8 hr, F.C. to 1150°F, hold at 1150°F for the total ageing time of 18 hours and tested as polished specimens. In incomparable tests, alloy 718 bar had a fatigue strength (108 cycles) of 89.0 ksi. Weld Rupture Properties Rupture strength at 1200° and 1300°F of heat-treated weldments in sheet is compared with parent metal in Table 17. In other tests, welds whose process steps were age, weld, and age had lives of 0.3 hr (1200°F, 100.0 ksi) and 4.9 hr (1300°F, 72.5 ksi); fractures were in the heat-affected zone. Notch-bar life at 1300°F and 75.0 ksi is shown in Table 18.
Table 17 - Rupture Strength of Butt Joints in Annealed Sheet a
Table 18 - Rupture Strength of Weldsa (Test Conditions: 1300°F and 75.0 ksi)
Conclusion Inconel 718’s superior mechanical properties make it an indispensable material for many industries, including aerospace, automotive, medical, nuclear power plants, gas turbines, oil refineries, industrial valves, pressure vessels, fasteners, bolts, nuts etc. Its excellent heat resistance, combined with its corrosion resistance, makes it ideal for any application involving elevated temperatures, like jet engine components or combustion chambers. With correct tool selection & cutting parameters coupled with appropriate heat treatments applied according to desired outcomes from these processes, this material can easily be machined into complex shapes & welded together using various welding processes. Thus making this superalloy an integral part of any industry requiring materials that have superior performance qualities.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Inconel 702 (700)
Standard Specification 702
Chemical Composition Inconel 700 and 702
Table 1 - Chemical Composition Inconel 700
Table 2 - Chemical Composition Inconel 702 Applications of Inconel 702 Superalloy is widely used to produce high-temperature components for gas turbines in the field of aviation, naval vessels and industry, such as turbine blades, guide blades, turbine disc, high-pressure compressor disc, combustors, and also the production of energy conversion devices, such as aerospace craft, rocket motor, nuclear reactor, petrochemical equipment, coaly transforming and so on. The alloy is usually produced by AOD / VD / VIM followed by electroslag refining (ESR) / VAR if necessary for special purposes. Bars and, where applicable, forgings are subjected to ultrasonic examination based on the different levels according to the buyers' requirements. Bars are usually supplied with bright surfaces in the solution-annealed condition. Final heat treatment - solution + Aged or Double aged.
Physical Properties In terms of physical properties, Inconel 702 offers superior thermal stability with a melting point range between 1320°C – 1350°C. Its density is 8 g/cm3, which makes it relatively light when compared to other metals with similar characteristics, such as titanium or stainless steel alloys. The modulus of elasticity for this alloy is 200 GPa which provides it with good formability in extreme temperatures and environments.
Table 3 - Physical Properties Inconel 700
Table 3a - Physical Properties Inconel 702
Mechanical Properties The mechanical properties of Inconel 702 are excellent. It has a high tensile strength that can reach up to 810 MPa at room temperature. The yield strength is also impressive at 690 MPa, while its elongation rate stands at 35%. Additionally, it has good fatigue strength, which makes it ideal for applications that require frequent loading cycles, such as aircraft components or heavy machinery parts. For more details see Table 4 below
Table 4 - Nominal Room-Temperature Mechanical Properties
Corrosion Resistance In addition to its heat resistance capabilities, Inconel 702 also has great corrosion resistance, which allows it to stand up against harsh environments without fear of damage from oxidation or rust over time. This makes it ideal for use in applications such as marine engines and oil refineries where exposure to corrosive elements is inevitable on a daily basis without risk of failure due to material degradation over time. Heat Treatment In order to achieve optimal performance from this alloy, it must be treated using specific heat treatments depending on the application that they will be used in afterwards; however, this treatment should only be done by experienced professionals who have the necessary knowledge and equipment available in order to do so safely and correctly without damaging the material itself during the process. Machinability (Recommendations) Additionally, machining this material requires special tools due to its hardness, so again only experienced personnel should attempt machining operations involving this metal alloy if possible. Machining Inconel Machining Inconel requires high cutting forces and a highly developed skill set to ensure it is done correctly on a consistent, repeatable basis. To properly work with Inconel takes an understanding of its properties and how to compensate for its limitations. Machining tips include:
Forging Inconel Alloys Inconel is widely used in forging industries for quality and oxidation-resistant end products. That’s because corrosion is among the most common problems within industries using forging materials. Manufacturers tried using Inconel in various applications and found it both practical and useful, so they’ve continued using it. Forging presses metal under great pressure into high-tensile strength components. This manufacturing process refines the grain structure and improves the physical properties— ductility, toughness, and strength—of metal so that the grain flow can be oriented in the direction of principal stresses encountered in actual use. Critical advantages of forging are:
Welding of Inconel 702 When welding with this particular alloy, special care must be taken into consideration prior to doing so since welding parameters vary depending on the filler material being used; however, some general considerations need to be taken into account no matter what type of filler materials being used such as preheating before welding if possible so that any residual stresses created during fabrication can relieved before welding begins as well as taking extra care when removing slag from welds since excessive heat input could cause damage. Successfully welded by common fusion and resistance methods, this alloy should not be joined by oxyacetylene welding. AWS E/ER630 filler metal is recommended if required. Is Inconel Considered Steel? Inconel is not considered steel or stainless steel. While stainless steel and Inconel both have silver finishes and use a numbering system for alloys and strengths, they are different in quality, characteristics, uses, and weight.
Conclusion In conclusion, Inconel 702 is an incredibly versatile metal alloy thanks to its excellent mechanical, physical, and chemical properties, making it suitable for use in many different industries ranging from aerospace engineering to power generation plants and chemical processing facilities. Its high strength-to-weight ratio allows It to stand extreme temperatures without losing its structural integrity, while its corrosion resistance properties allow it to be used in marine applications without fear of rust formation over time. Finally, the ability to machine and weld with this alloy makes the site even more attractive for industrial-scale use as long as the proper protocol is followed during these operations by experienced professionals to prevent damage or thermal distortion of the material itself.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
