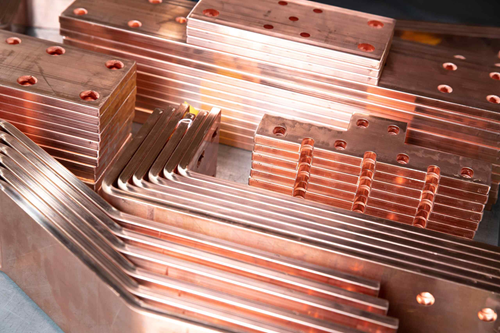

Laminated or flexible busbars - Working Principle

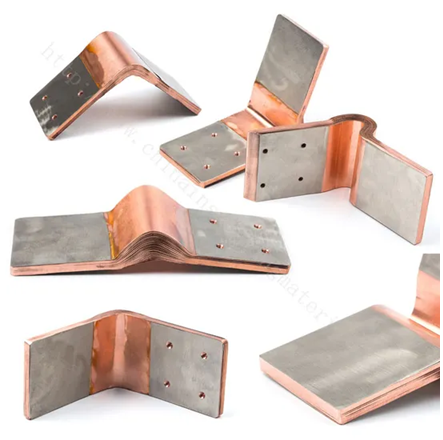

Laminated and flexible busbars function as advanced electrical conductors by stacking thin layers of copper or aluminum with insulation to enhance current density, reduce inductance, and enable flexibility for tight spaces. They work by laminating conductive layers together to provide a low-impedance, compact, and high-efficiency path for power distribution in electronics, EVs, and machinery.

Working Principle & Key Aspects

• Layered Construction: Multiple thin conductors (copper/aluminum) are insulated and pressed together, which reduces inductance (high-speed switching, <10nH) and increases capacitance, essential for high-frequency applications like inverters.
• Reduced Skin Effect: The thin, stacked layers reduce the "skin effect" (where current flows mostly on the outer surface of a thick conductor), improving electrical performance at high frequencies.
• Thermal Management: The large surface area of the stacked design enables efficient heat dissipation, allowing for higher current capacity compared to traditional cables.
• Flexibility: Flexible versions use insulated lamellae, allowing them to bend, twist, and fit into compact 3D spaces, resisting vibration, and making them ideal for robotics and electric vehicles.
• System Integration: They consolidate multiple conductors into one assembly, reducing connection points, minimizing installation time, and lowering overall system costs.

Main Applications

• Electric Vehicles (EVs): Transferring power from batteries to inverters and motors.
• Power Electronics/Inverters: IGBT modules, motor drives, and solar inverters.
• Industrial Power Distribution: Switchgear, UPS systems, and automatic transfer switches (ATS).

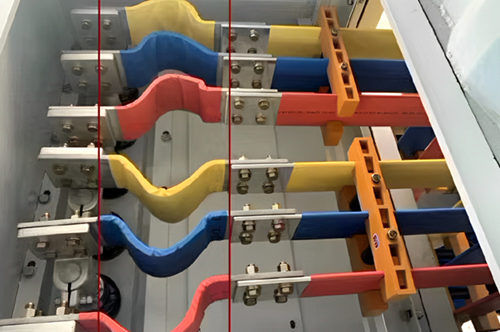

Special cross-section busbars - Working Principle

Special cross-section busbars—such as U, T, L, or hollow shapes—function as high-capacity electrical conductors that optimize current distribution, heat dissipation, and structural rigidity. By increasing the surface-area-to-cross-section ratio compared to flat bars, they reduce the skin effect, improve cooling, and provide better bending stiffness for industrial applications.

Key Principles of Special Cross-Section Busbars

• Optimized Heat Dissipation: Non-flat profiles (e.g., hollow tubes or shaped, laminated bars) provide a higher surface-area-to-volume ratio, allowing faster heat dissipation, which prevents overheating at high currents.
• Reduced Skin Effect: At high alternating current (AC) frequencies, electricity travels on the surface of the conductor. Shaped, thin, or hollow conductors reduce this "skin effect" by maximizing the surface area, thereby increasing efficiency and reducing resistance.
• Structural Strength & Rigidity: "U," "T," or "L" cross-sections are designed for enhanced structural, mechanical, and bending stiffness, reducing the need for supports over long spans compared to thin rectangular bars.
• Current Distribution: These conductors act as a central junction (input/output) to collect and distribute electricity to multiple loads.
• Flexible Application: They are used in power systems to manage large loads, with configurations like hollow tubes for high-voltage outdoor substations and shaped bars for compact switchgear.

Shapes and Their Advantages

• Hollow/Round: Ideal for high voltage to minimize corona effects and provide high rigidity.
• U-Shape/L-Shape: Provides excellent structural stability for heavy-duty industrial busway systems.
• Laminated/Flexible: Composed of thin copper/aluminum foil layers, offering flexibility in tight spaces while increasing surface area for cooling.

 Specialized Configurations

•  Hollow Tubular: Primarily used in high-voltage substations; the hollow center reduces weight while the circular exterior manages the Corona Discharge effect and provides high rigidity.
• Slotted/Trough: Two trough-shaped bars used in parallel to achieve currents up to 12kA with uniform current distribution and superior cooling.
• Laminated/Sandwich: Multiple thin layers pressed together with insulation to minimize inductance and Electromagnetic Interference (EMI), essential for power electronics and EV batteries.

Rigid busbar (flat bar) - Working Principle

A rigid flat busbar is a solid, rectangular conductor—typically copper or aluminum—that functions as a central, low-impedance highway for high-current power distribution. Mounted on insulators within enclosures, they collect power from sources and distribute it to loads, utilizing their high surface area for efficient heat dissipation and mechanical strength.

Key Working Principles

• High-Capacity Conduction: The flat, rigid structure provides a low-resistance path, allowing for high current density and minimal power loss, often superior to traditional cabling.
• Centralized Distribution: It acts as an electrical junction point where incoming power (e.g., from a transformer) merges and is subdivided among multiple outgoing feeders or devices.
• Thermal Management: The large, uninsulated surface area of flat bars facilitates rapid heat dissipation through convection, preventing overheating under high load.
• Mechanical Stability: Being rigid, these bars are securely bolted on insulators, which allows them to withstand electromagnetic forces during short-circuit events.
• Voltage Consistency: It maintains a uniform voltage potential across the entire length of the conductor.

Rigid busbars are commonly used in switchgear, industrial machinery, and substation applications where structural rigidity and high current handling are required.

Working Principle

The core principle of a rigid busbar is to provide a low-resistance, high-capacity path for electricity to flow between power sources (like transformers or generators) and multiple output loads (like circuit breakers or machinery).

Key Components & Safety

• Insulated Support: Rigid bars are typically mounted on insulated pillars or spacers to keep them away from the enclosure body and prevent short circuits.
• Protection: Systems are often paired with circuit breakers or isolators. If a fault is detected, the breaker trips to isolate the specific section of the busbar, preventing a total system failure.
• Connection Points: Devices are securely bolted or clamped directly to the bar. This provides a mechanically strong and electrically stable connection that resists loosening from vibrations.

Electrical switchboards and switchgear - Working Principle

Introduction

Article 240 of the National Electrical Code (NEC) covers overcurrent protection and notes that all electrical conductors shall be protected. Overcurrent protective devices (OCPDs) consist of fuses and circuit breakers. This article covers the basics of panelboards, switchboards, and switchgear, the three main options for organizing, housing, and utilizing the OCPDs. For simplicity, only breakers will be referenced in this article when discussing OCPDs.

Both were patented by Thomas Edison — the circuit breaker in 1879 and the fuse in 1890. Although fuses were the first OCPDs widely used in homes and commercial buildings, circuit breakers have also had a rich history of protecting electrical installations and are very common today.

Working Principle of Electrical Switchgear

Electrical switchgear and switchboards, often housed in metal cabinets with busbars and breakers, safely control, protect, and distribute electricity. Switchgear handles high/medium voltage (up to 350kV) with automatic, compartmentalized, and draw-out components for fault isolation. Switchboards typically handle low voltage (≤ 600V) for distribution with fixed-mounted components, often acting as the main service entrance.

• Function: Designed for high-voltage and industrial environments to manage power flow and protect equipment from damage due to short circuits, overloads, and surges.
• Components: Utilizes circuit breakers (often vacuum or air-insulated), relays, and fuses housed in separate, secure compartments for safety.
• Operation: If a fault occurs, relays detect abnormal conditions (e.g., overcurrent) and trigger circuit breakers to immediately break the circuit. They feature draw-out breakers, allowing maintenance without shutting down the entire system.
• Protection Level: High, with advanced capabilities for fault isolation.

Switchboard Working Principle (Distribution & Monitoring)

• Function: Used primarily for low-voltage power distribution in commercial or residential buildings, dividing a main power source into smaller circuits.
• Components: Consists of a front-mounted panel holding buses, molded case circuit breakers (MCCBs), and meters.
• Operation: Takes incoming power and distributes it to various loads. It provides manual control over these loads, allowing for the isolation of specific circuits for maintenance.
• Safety Level: Lower than switchgear, usually without extensive compartmentalization.

In conclusion:

Electrical switchboards and switchgear are the primary "traffic controllers" and "bodyguards" of an electrical system. While they share similar components, their working principles differ based on their primary function: distribution (switchboards) versus protection (switchgear).

1. Electrical Switchboard Working Principle

• Power Intake: Electricity enters through a main breaker or lugs from a transformer or utility line.
• Division & Routing: The power flows onto horizontal and vertical busbars (conductive bars), which act as common connection points for multiple branch circuits.
• Protection: Each branch circuit has its own molded case circuit breaker (MCCB) or fuse. These protect the downstream equipment from overloads or short circuits by physically breaking the connection if the current exceeds safe levels.
• Control: Operators can manually toggle switches to de-energize specific parts of a building (e.g., lighting, HVAC) for maintenance.

Switchgear Working Principle

• Continuous Monitoring: Protective relays act as sensors, constantly measuring voltage and current. If they detect an abnormality (like a massive surge), they send a signal to the circuit breaker.
• Fault Interruption: Unlike a simple switch, switchgear uses power circuit breakers (often air, vacuum, or SF6 gas-insulated) that can safely quench the massive electrical "arc" created when high-voltage contacts pull apart.
• Isolation & Safety: Components are often compartmentalized (isolated in metal bins). This "draw-out" design allows a technician to pull out a single breaker for repair without shutting down the entire system, preventing widespread downtime.
• Coordination: Switchgear is built to withstand faults for a longer duration (up to 30 cycles) to allow downstream devices to trip first, ensuring only the faulty section is disconnected.

Core Differences Summary

Modular Connections Busbar System - Working Principle
