Constant Voltage (CV)

Constant Voltage (CV) is a power supply operating mode that maintains a fixed voltage output regardless of changes in load current or temperature. It automatically adjusts current to maintain the set voltage, provided the load does not exceed the set current limit. This mode is ideal for powering electronics like circuits, sensors, and LED drivers.

Key Characteristics and Functions

Voltage Stability: The primary goal is to keep the voltage steady at a pre-set level, such as 5V or 12V.
Variable Current: The current (I) drawn from the supply varies depending on the load resistance (R), according to Ohm's Law (V = IR).
Transition to CC: If the load attempts to draw more current than the predefined limit, the supply automatically switches from CV to Constant Current (CC) mode to protect the equipment.
Applications: Commonly used in laboratory power supplies, battery charging (specifically in the final stage to avoid overcharging), and to power devices that require a stable voltage source.

Comparison with Other Modes

CV vs. CC: While CV holds voltage stable, Constant Current (CC) mode holds current stable, allowing voltage to drop if necessary.
CV vs. CP: Constant Power (CP) mode keeps output power stable by adjusting both, whereas CV focuses solely on voltage.

Core Mechanism

Voltage Regulation: The supply uses a feedback control loop (typically an error amplifier) to monitor the output and adjust its internal operation to keep the voltage steady.

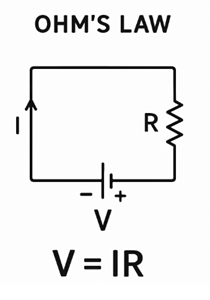

Variable Current: According to Ohm's Law (I = V/R), if the voltage (V) is constant, the current (I) must change inversely with the load resistance (R).
The "CV to CC" Transition: Most modern benchtop power supplies allow you to set a maximum current limit. If the load tries to draw more current than this limit, the supply will automatically switch from CV mode to Constant Current (CC) mode to protect the circuit, causing the voltage to drop.

legge OHMS

Key Applications

Application	Use of CV Mode
Electronic Circuits	Most digital devices (microprocessors, ICs) require a steady voltage (e.g., 3.3V or 5V) to function reliably.
Battery Charging	In the final stage of charging (e.g., Li-ion), a fixed voltage is applied while the current naturally tapers off as the battery reaches full capacity.
LED Strips	CV drivers are used for parallel LED strips (like under-cabinet lighting) that have built-in resistors to manage individual LED current.
Welding (GMAW)	CV power sources are standard for MIG welding, where they provide "self-regulation" of the arc length by varying current based on wire feed speed.

Electrical limits by capping the total power output

Capping the total power output is a fundamental technique in electrical engineering, computing, and renewable energy management used to protect infrastructure, improve efficiency, and ensure stability. By setting a hard limit on wattage (W), systems can prevent overheating, avoid circuit breaker trips, and manage thermal loads.

Here is an overview of how electrical limits are applied by capping power output across different fields:

Power Supply Units (PSUs) and Electronics

Maximum Power Limits: Power supplies have a "max output rating," which is the highest amount of electrical energy they can safely deliver.
Constant Current/Power Limitation: When a load tries to draw more power than the limit, the regulator acts by dropping the voltage to keep the total power (P = V*I) within limits, often called "folding back" the voltage.
Heat Management: Every watt consumed eventually becomes heat; capping power directly limits the heat generated by components.

2. Renewable Energy (Solar/PV Systems)

Maximum Feed-in Power Clipping: To comply with grid regulations, solar inverters can be set to limit the output (e.g., capping a 10 kW system to 7 kW). This is often done at the inverter output or the feed-in point to prevent overloading the grid.
I-V Characteristic Adjustment: Instead of simply cutting power, inverters can alter the I-V (current-voltage) characteristics of solar modules to operate at a lower power point.

3. Computing and Hardware (CPUs/GPUs)

Power Capping (RAPL): Modern CPUs (Intel/AMD) use interfaces like RAPL (Running Average Power Limit) to artificially cap power usage, reducing power consumption and thermal throttling without shutting down the component.
GPU Limiting: Setting a 80–90% power limit on a GPU (e.g., 300W reduced to 250W) can significantly reduce power consumption and heat output with only a minor, often negligible, loss in performance.

4. Residential Electrical Systems

Load Management: To prevent main breakers from tripping, smart home systems (e.g., CBI Astute) can monitor total power and automatically switch off high-consumption devices (kettles, HVAC) if the limit is exceeded.
Safety Buffers: It is recommended to have a power capacity higher than the sum of all simultaneous appliance usage to avoid overload, usually adding a 0.5 to 1 kW safety buffer.

Key Concepts in Power Capping

Efficiency vs. Load: Efficiency typically peaks below full load. Operating exactly at the maximum rated load can reduce efficiency and increase heat.
Current vs. Power: While fuses generally protect against over-current (A), power capping manages the total wattage (W), which is crucial for components sensitive to heat.
Impact on Performance: Power capping almost always results in lower performance (e.g., lower clock speeds), but it offers better energy efficiency.

Hardware Capping (Circuit Level)

Circuit Breakers & Fuses: These are the primary safety caps for home and industrial circuits. A 15A breaker on a 120V line effectively caps the continuous power at 1,800 Watts; exceeding this trips the breaker to prevent fire hazards.
Constant Current Regulation: Many power supplies are designed to "fold back" or drop the output voltage if the load attempts to draw more power than the unit's rated limit, maintaining a safe total wattage.
Passive Resistance: Resistors and the internal resistance of batteries naturally limit power by converting excess energy into heat.

Digital & Software Capping (System Level)

CPU/GPU Power Capping: Modern processors use technologies like Intel RAPL (Running Average Power Limit) to artificially cap power draw. For example, capping a GPU at 80-90% can significantly reduce heat and noise with minimal performance loss.
Smart Plugs & Load Shedding: Systems like the CBI Astute allow users to set rules that automatically shut off specific outlets if they exceed a pre-set wattage.
IT Infrastructure: In data centers, power capping allows administrators to set a wattage limit on an individual server or an entire enclosure to prevent overloading the facility's power capacity.

Most efficient way to utilize the battery's Total Energy

To maximize the efficiency and total energy utilization of a battery, the most effective approach is to avoid extreme charge levels (0% or 100%) and maintain optimal operating conditions. This is often summarized by the 40–80 rule for lithium-ion batteries, which suggests keeping the state-of-charge (SoC) between 40% and 80% to reduce chemical and thermal stress, thereby increasing the total energy delivered over the battery's lifespan.

Here are the most efficient ways to utilize a battery's energy based on industry best practices:

1. Optimal Charging Habits (The 40–80 Rule)

Avoid Full Charges and Deep Discharges: Regularly charging to 100% or discharging to 0% speeds up wear and tear.
Maintain 20%–80% Window: Keeping the battery within this range is the "sweet spot" for longevity, as it reduces voltage stress.
Limit 100% Charges: Only charge to 100% when absolutely necessary, such as for long trips or extended outages.
Use Smart Features: Enable "optimized charging" or "battery protection" modes on devices to manage charging behavior automatically.

2. Temperature Management

"Goldilocks Zone": Operate and store batteries at temperatures between 60-80°F (15-27°C).
Avoid Extreme Heat: High temperatures accelerate degradation and permanently reduce capacity.
Avoid Freezing Temperatures: Charging below freezing can cause permanent, irreversible damage to the anode.

3. Usage and Discharge Optimization

Lower C-Rates: Charge and discharge at a slower, more consistent rate. High-power usage (high C-rate) increases internal heat and lowers Round Trip Efficiency (RTE).
Avoid Deep Discharge Cycles: Frequent, deep discharges (0%–100%) can reduce the total lifespan of a battery to as low as 300 cycles, whereas shallower cycles (40%–80%) can allow for thousands of cycles.
Use Efficient Power Management: Utilize "Battery Saver" modes on devices to limit background processes

4. Technical and Environmental Setup

Use Certified Chargers: Always use original or certified, high-quality chargers to avoid overheating and overcharging.
Proper Ventilation: Ensure adequate airflow around the battery to prevent heat buildup.
Store Properly: If storing a battery for a long time, keep it at a 40–60% charge, not fully charged or fully drained.
Choose the Right Chemistry: For stationary storage, LiFePO4 (Lithium Iron Phosphate) batteries offer high efficiency, often exceeding 90–95% Round Trip Efficiency (RTE)

By implementing these strategies, you maximize the total energy throughput over the life of the battery, ensuring that more energy is available for use over a longer period.

Standardized Discharge Curve

mettere la foto disharge_curve

A standardized battery discharge curve represents the relationship between a battery's terminal voltage and its capacity (or time) when discharged at a constant current rate, usually measured at 25°C. The curve typically exhibits an "S" shape, dividing into an initial voltage drop, a long, flat plateau, and a sharp final drop.

Working Principle of Battery Discharge

Electrochemical Reaction: Discharge converts stored chemical energy into electrical energy. During discharge, the anode acts as the negative electrode (oxidation, electron generation) and the cathode as the positive electrode (reduction, electron consumption).
Charge Transfer: Ions move through the electrolyte while electrons flow through the external circuit, powering the device.
Voltage Drop Factors: As the battery discharges, the voltage (V) drops due to:
- IR Drop: Internal resistance causes a linear voltage drop proportional to the discharge current.
- Activation Polarization: Voltage loss due to the kinetics of the chemical reaction.

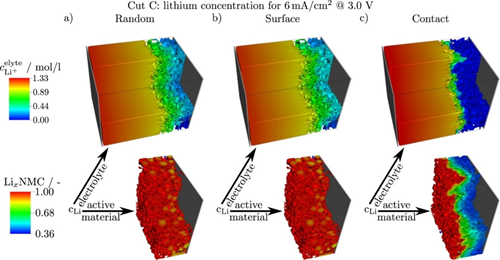

- Concentration Polarization: Resistance caused by mass transfer limitations of ions in the electrolyte.

Standardized Discharge Curve Regions

A typical discharge curve, particularly for Li-ion, comprises three distinct regions:

Initial Nonlinear Region: A rapid initial drop from the fully charged voltage (e.g., 4.2V) as the battery enters the active discharge state.
Linear Voltage Plateau: A relatively flat region where the voltage remains stable for a large percentage of the discharge cycle. This provides consistent power to devices.
Final Nonlinear Region (The "Knee"): A steep decline in voltage as the battery nears 0% state of charge (SoC) and the active materials are depleted.

Factors Influencing the Curve

C-Rate (Discharge Current): Higher discharge currents result in a lower voltage plateau and earlier onset of the "knee" (faster discharge).
Temperature: Lower temperatures decrease capacity and voltage, while higher temperatures may improve capacity but shorten overall battery life.
Battery Chemistry: For instance, LFP (Lithium Iron Phosphate) cells have a flatter discharge curve compared to NMC (Nickel Manganese Cobalt) cells.
Internal Resistance: Higher resistance (due to aging) leads to a more rapid voltage drop.

Standard Testing Conditions

To create a standardized curve, the following parameters are usually applied:

Temperature: Room temperature, often 25 ± 2°C.
Procedure: The battery is fully charged, left for a set time (e.g., 1 hour), then discharged at a constant current (e.g., 1C or 0.2C) until the cutoff voltage is reached.
End-of-Discharge: The point where the voltage reaches a minimum allowable limit (e.g., 3.0V for many Li-ion cells).

For more technical details, you can explore the Battery University guide on discharging or view analytical models for discharge characteristics.

Rohde & Schwarz DC Power Supplies

mettere la foto Rohde_Schwarz1

Rohde & Schwarz (R&S) DC power supplies operate primarily as programmable, high-efficiency, switch-mode power supplies (SMPS) or hybrid designs, featuring Constant Voltage (CV), Constant Current (CC), and optional Constant Resistance (CR) modes. They convert line voltage by rectifying, chopping, and filtering, providing stable, precise voltage/current to devices under test (DUT) with low ripple, often using linear regulators to further refine output, notes Rohde & Schwarz.

Core Working Principles

Operating Modes (CV/CC):
- Constant Voltage (CV): The unit maintains a fixed output voltage; current varies based on the load. If the current exceeds the user-set limit, the unit automatically switches to CC mode to protect the device.
- Constant Current (CC): The power supply acts as a current source, limiting the output current to a preset value while adjusting the voltage to match the load requirements.
- Constant Resistance (CR): The unit behaves like a programmable resistor, useful for simulating battery discharge, as seen in this document from Farnell.

Power Conversion Technology:
- Switch-Mode (SMPS) (e.g., R&S NGP800): Used in high-power series like the R&S®NGP800, these supplies chop DC voltage at high frequencies using switching transistors. Regulation is achieved by adjusting the duty cycle (Pulse Width Modulation), which offers high efficiency and a compact footprint.
- Linear/Hybrid Design (e.g., R&S NGE100B, HMP): Combines a transformer with switching regulators for efficiency, followed by a linear stage to minimize noise and ripple at the output.

Functionality & Features:

Programmability: Users can set voltage, current, and Protection limits (OVP/OCP).
Arbitrary (EasyArb): The capability to program sequences of different voltage/current levels over time.
Tracking & Parallel/Series: Channels can be linked for synchronized operation or combined for higher voltage/current.
Sink Operation: Some models can operate as an electronic load (sinking current), detailed in this document from Farnell.
