Parker Autoclave Engineers male/female adapters are designed to join a female 37º flare (JIC) connection directly to another size and/or type of connection without the need for an additional coupling. In selecting an adapter involving two different sized connections, the larger connection should be on the male end where it is possible to maximize the mechanical strength of the adapter. Materials: Coldworked Type 316 stainless steel. Special material one piece adapters may be supplied with four flats in place of standard hex. Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.

Description

Fittings manufactured according to SAE J514 (ISO 8434-2) standard are widely used in many branches of industry to connect steel pipes with outside diameters from 6 to 38 mm. Fittings, according to SAE J514 can also be used to connect flexible hose assemblies. Widely used in hydraulic and pneumatic drive and control systems as well as in industrial applications. For more details, the dedicated page here

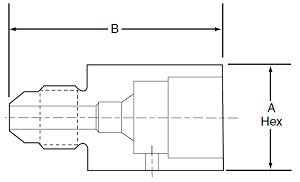

Dimensions and Specifications
