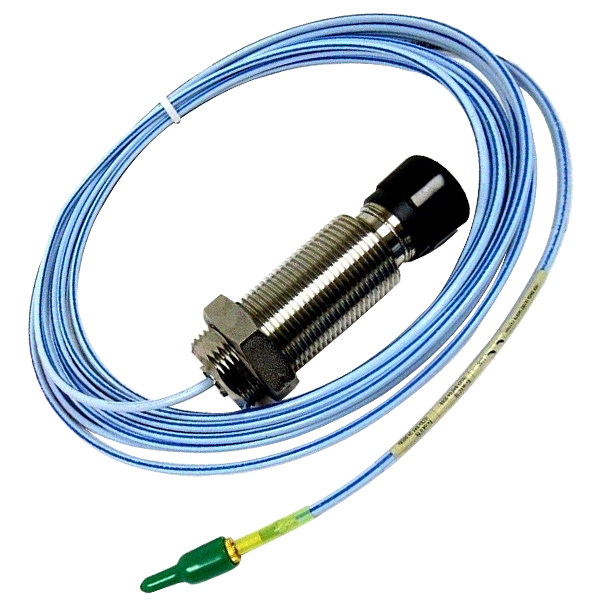

Bently nevada 330851 - AA-BBB-CCC-DD-EE-FF-3300 XL 25 mm Proximitor Probe

Functional Description

A: Probe Case Type Option

• 01= 1 1/4 - 12 thread
• 02 = M30x2 Thread
• 03 =  Smooth 1.06 in. dia. - Rear Exit
• 04 = Smooth 1.06 in. dia. - Side Exit
• 05 = 1 1/2 - 12 thread
• 06 =  M39x1.5 Thread
• 07 = Smooth 1.5 in. dia. - Rear Exit
• 08 = Smooth 1.5 in. dia. - Side Exit

BBB: Unthreaded Length Option

Standard unthreaded length is 0.0 mm or 0.0 in. There is an additional charge for non-standard unthreaded lengths

Unthreaded length must be at least 26 mm or 1.0 in. less than the case length.

Unthreaded length option is 0.0 for smooth case probe types.

Metric Case Types Order in increments of 2 mm

• Maximum Unthreaded Length = 224 mm
• Minimum Unthreaded Length = 0mm

Example: 050 = 50 mm

English Case Types Order in increments of 0.1 in.

• Maximum Unthreaded Length = 8.9 in.
• Minimum Unthreaded Length = 0.0 in.

Example 025 = 2.5 in

Available

• 050 = 50mm
• 060= 60 mm

CC: Overall Case Length Option

Standard csae lengths are 26, 40, 60, 80, 100 and 250 mm for Metric cases and 1.0, 2.0, 3.0, 4.0, and 9.9 in. for Englich cases. There is an additional charge for non-standard lengths.

Metric Case Types Order in increments of 2 mm

• Maximum Unthreaded Length = 250 mm
• Minimum Unthreaded Length = 26mm

Example: 050 = 50 mm

English and Smooth Case Types Order in increments of 0.1 in.

• Maximum Unthreaded Length = 9.9 in.
• Minimum Unthreaded Length = 1.0 in. (1.5 in. for side exit case types)

Example 020 = 2.0 in.

• 01 = High Temperature FluidLoc Cable
• 02 = High Temperature FluidLoc Cable with Armor

Available

• 050 = 50mm
• 060 = 60 mm

DD: Total Length Option

• 10 = 1.0 metre (3.3 feet)
• 50 = 5.0 metres (16.4 feet)
• 90 = 9.0 metres (29.5 feet)

EE: Armor Option

• 00 = No Armor
• 01= with SST Armor

FF: Agency Approval Option

• 00 = No Approvals
• 05 = Multiple Approvals

For a shorter delivery time, order commonly stocked multi-approvals probes. Currently, stocked probes consist of the following part numbers

Form more details see datasheet here
