Bently nevada 3500/15 - AC and DC Power Supplies

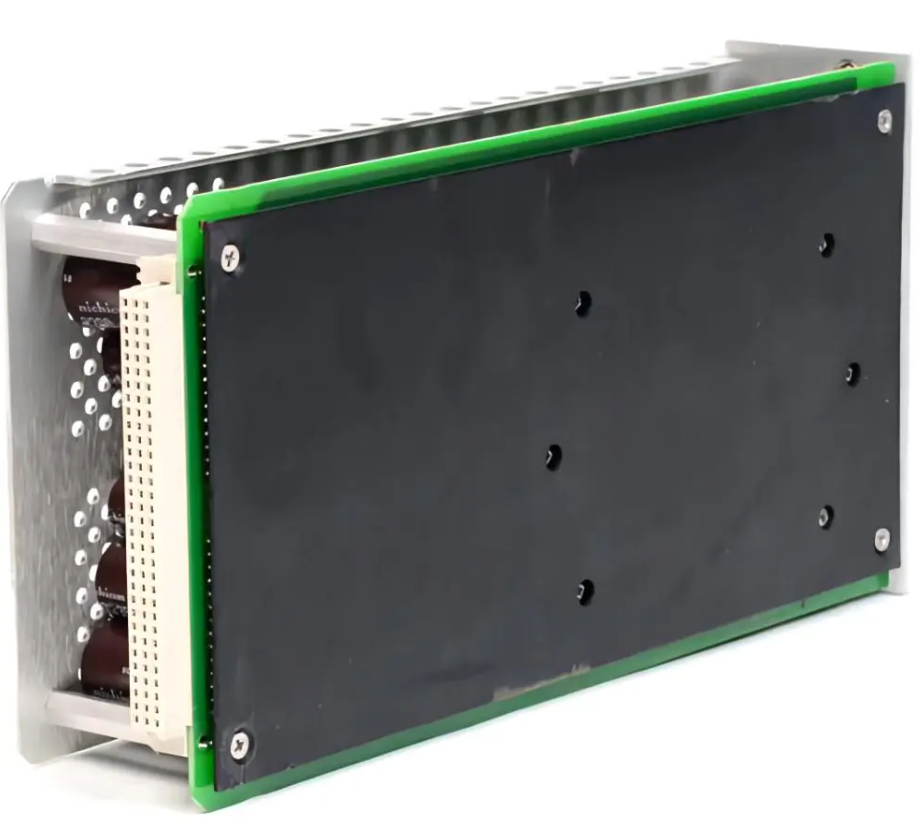

Bently Nevada 3500/15-05-00-05 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack.The 3500 rack can contain one or two power supplies with any combinations of AC and DC.

Electronic board

Series: 3500
Manufacturer: Bently Nevada
Model Number: 3500/15 (Please choose other three option before order)
Part Number: 133292-01
Description: Bently Nevada 3500/15-04-04-00 133292-01 Low Voltage dc Power Supply Module
price: $1300
Product Type: Replacement Fuse
Dimensions: 6.3 x 32 mm
shipping port: validate
Availability: In stock

Ordering Information

For the detailed listing of country and product specific approvals, refer to the Approvals Quick Reference Guide (108M1756) available from Bently.com.
3500/15 Power Supply Module
3500/15 - - AA- BB- CC

A: Power Supply Type (Top Slot)
01 Low Voltage ac (85 to 132Vac rms)
02 High Voltage ac (175 to 264Vac rms)
03 High Voltage dc (88 to 140Vdc)
04 Low Voltage dc (20 to 30Vdc)

B: Power Supply Type (Bottom Slot)
00 No supply (use when only one supply is required)
01 Low Voltage ac (85 to 132 Vac rms)
02 High Voltage ac (175 to 264 Vac rms)
03 High Voltage dc (88 to 140 Vdc)
04 Low Voltage dc (20 to 30 Vdc)

C: Agency Approval Option
00 None
01 CSA/NRTL/C
02 ATEX/CSA (Class 1, Zone 2)

For more details see datasheet here

 Spare

127610-01 - ac Power Supply Module
125840-01 -  High Voltage ac Power Input Module (PIM)
129480-02  - Low Voltage ac Power Input Module (PIM)
129486-01 - High Voltage dc Power Supply Module
129478-01 - High Voltage dc Power Input Module (PIM)
133292-01 - Low Voltage dc Power Supply Module
133300-01 - Low Voltage dc Power Input Module (PIM)

Functional Description

Bently Nevada 3500/15-05-00-05 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.
When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one.
Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed.
The 3500/15 AC and DC Power Supplies accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:
1. Universal AC Power
2. High Voltage DC Power Supply
3. Low Voltage DC Power Supply

Bently nevada 120M3877 Replacement Fuse (Universal AC Power Input Module),Order 120M3877

120M3877 is a Replacement Fuse developed by Bently Nevada. It is a part of the Bently Nevada 3500/15 AC and DC Power Supplies.

Replacement Fuse

Series: 3500
Manufacturer: Bently Nevada
Model Number: 3500/15
Part Number: 120M3877
Product Type: Replacement Fuse
Dimensions: 6.3 x 32 mm
Availability: In stock

Functional Description

120M3877 is a Replacement Fuse developed by Bently Nevada. It is a part of the Bently Nevada 3500/15 AC and DC Power Supplies.Fast blow rated at 5A/500 Vac.
The 3500/15 AC and DC Power Supplies are half-height modules and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.
When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one.
Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed.
The 3500/15 AC and DC Power Supplies accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:
1. Universal AC Power
2. High Voltage DC Power Supply
3. Low Voltage DC Power Supply
