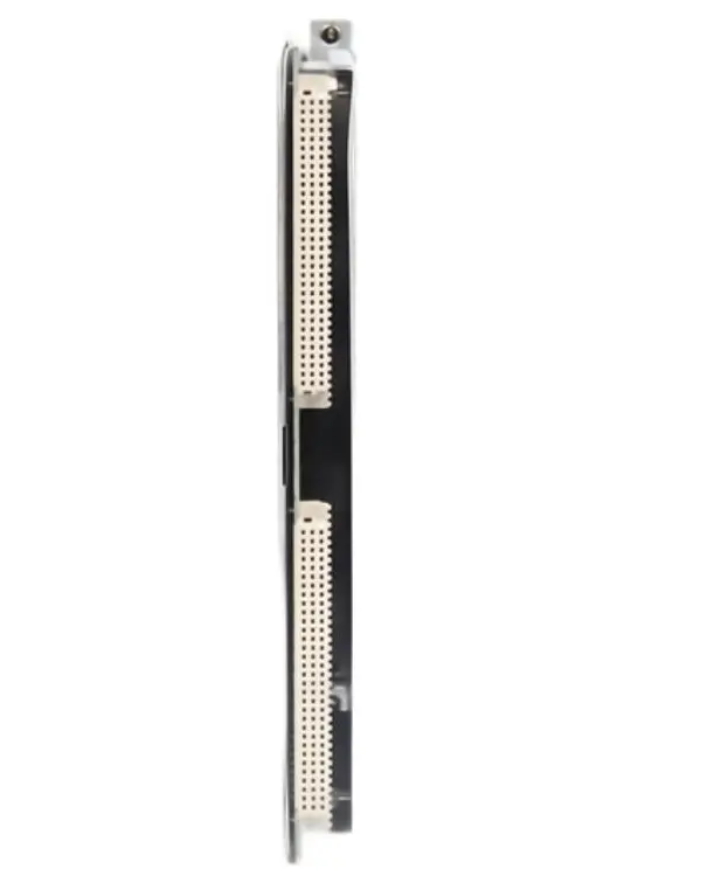

Bently nevada 3500/62 Process Variable Monitor

Bently Nevada 3500/62-03-01 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows,temperatures, and levels.

Manufacturer: Bently Nevada
Model Number: 3500/62 (Please choose other three option before order)
price:$1600
Part Number: 3500/62 (complete di order choose last part number if require)
Product Type: Process Variable Monitor
Dimensions: 241.3 mmx 24.4 mmx 241.8 mm
Weight: 0.46 kg
Series: 3500
Availability: In stock

Ordering Information

For the detailed listing of country and product specific approvals, refer to the Approvals Quick Reference Guide (108M1756) available from Bently.com.
Process Variable Monitor
3500/62-AA-BB

A: I/O Module Type
01 -10 to +10 Vdc I/O Module with Internal Terminations
02 -10 to +10 Vdc I/O Module with External Terminations
03 Isolated +4 to +20 mA I/O Module with Internal Terminations
04 Isolated +4 to +20 mA I/O Module with External Terminations
05 Non-Isolated +4 to +20 mA I/O Module with Internal Barriers and Internal Terminations

B: Agency Approval Option
00 None
01 CSA/NRTL/C
02 ATEX/CSA (Class 1, Zone 2)

Spares
163179-03 3500/62 monitor
136590-01 Firmware IC
04425545 Grounding wrist strap (single use)
04400037 IC removal tool
136491-01 -10 Vdc to +10 Vdc I/O Module with internal terminations
136499-01 -10 Vdc to +10 Vdc I/O Module with external terminations
136294-01 Isolated +4 to +20 mA I/O Module with internal terminations
136483-01 Isolated +4 to +20 mA I/O Module with external terminations
137110-01 4 to 20 mA Barrier I/O Module with internal terminations

For more details see datasheet here

Functional Description

Bently Nevada 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 monitor:
1. Continuously compares monitored parameters against configured alarm setpoints to drive alarms for machinery protection.
2. Provides essential machine information for both operations and maintenance personnel.
You can program the 3500/62 using the 3500 Rack Configuration Software to perform either current or voltage measurements. The 3500/62 offers I/O modules for three signal input scenarios: +/-10 Volts DC, isolated 4-20 mA, or 4- 20 mA with Intrinsically Safe zener barriers. The Internal Barrier I/O provides external power input terminals to provide intrinsically safe power to the 4-20 mA transducers.
When used in a Triple Modular Redundant (TMR) configuration, you must install Process Variable Monitors adjacent to each other in groups of three. When used in this configuration, the monitor employs two types of voting to ensure accurate operation and to avoid loss of machinery protection due to single-point failures.

Spares

163179-03 3500/62 monitor
136590-01 Firmware IC
04425545 Grounding wrist strap (single use)
04400037 IC removal tool
136491-01 -10 Vdc to +10 Vdc I/O Module with internal terminations
136499-01 -10 Vdc to +10 Vdc I/O Module with external terminations
136294-01 Isolated +4 to +20 mA I/O Module with internal terminations
136483-01 Isolated +4 to +20 mA I/O Module with external terminations
137110-01 4 to 20 mA Barrier I/O Module with internal terminations
