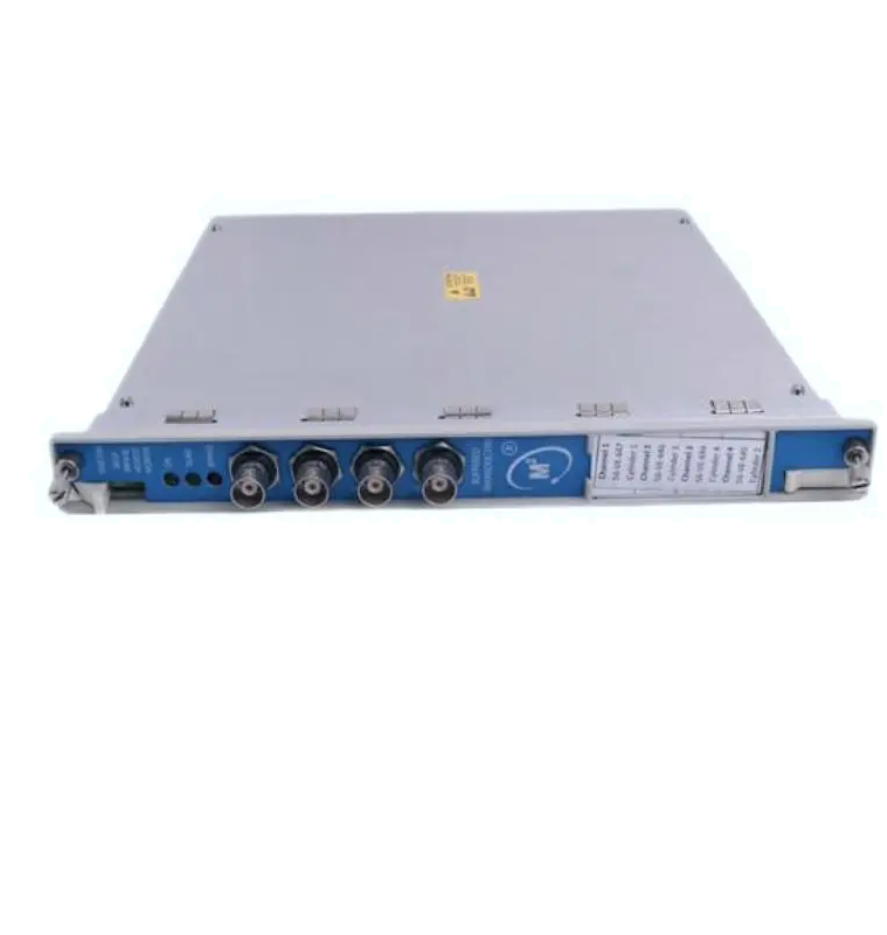

Bently nevada 3500/70M Recip Impulse Velocity Monitor

 Bently Nevada 3500/70M Recip Impulse Velocity Monitor is a 4-channel device used as part of the reciprocating compressor solutions package to monitor compressor crankcase and crosshead vibration.

Manufacturer: Bently Nevada
Model Number: 3500/70M (complete di order choose last part number if require)
Product Type: Recip Impulse Velocity Monitor
Dimensions: 9.50 in x 0.96 in x 9.52 in
Weight: 0.91 kg (2.0 lb)
Series: 3500
Availability: In stock

Ordering Information

3500/70M - AA-BB
A: I/O Module Type
01 - Prox/Velom I/O Module with Internal Terminations
02 - Prox/Velom I/O Module with External Terminations
03 - Internal Barrier, Four Accelerometers
04 - Internal Barrier, Two Accelerometers, Two Velomitors
05 - Internal Barrier, Four Velomitors
B: Agency Approval
00 - None
01 - cNRTLus (Class 1, Division 2)
02 - ATEX/ IECEx/ CSA (Class 1, Zone 2)

Spare

176449-09 - 3500/70M Recip Impulse Velocity Monitor
166226-01 - 3500/70M Recip Impulse Velocity Monitor User Manual
135489-01 - I/O Module with Internal Barriers, Internal Terminations 4 x Prox/Accel
135489-02 - I/O Module with Internal Barriers, Internal Terminations 2 x Prox/Accel and 2 x Velomitor
135489-03 - I/O Module with Internal Barriers, Internal Terminations 4 x Velomitor
140471-01 - Prox/Velom I/O Module with Internal Terminations
140482-01 - Prox/Velom I/O Module with External Terminations -
00561941 - 3500/70M Prox/Velom I/O Module ten-pin connector shunt
00580434 - Internal I/O Module connector header Euro Style, 8 pin For I/O modules 128229-01 and 138708-01
00580432 - Internal I/O Module connector header Euro Style, 10 pin For I/O modules 128229-01, 138708-01
00502133 - Internal I/O Module connector header Euro Style, 12 pin
166M2389 - Connector header Push-in-spring type (Alternative for PN 00580434)
166M2388 - Connector header Push-in-spring type (Alternative for PN
00580432)

For more details see datasheet here

Functional Description

Bently Nevada 3500/70M Recip Impulse Velocity Monitor is a 4-channel device used as part of the reciprocating compressor solutions package to monitor compressor crankcase and crosshead vibration. The monitor accepts input from seismic transducers, conditions the signal to derive vibration measurements, and compares the conditioned signals with user-programmable alarms.
You can program each channel using the 3500 Rack Configuration Software to perform the following functions:
1. Impulse Acceleration
2. Acceleration 2
3. Recip Velocity
4. Low Frequency Recip Velocity
The monitor channels are programmed in pairs and can perform up to two of the aforementioned functions at a time. For example, channels 1 and 2 can perform one function while channels 3 and 4 perform another or the same function.
The primary purpose of the 3500/70M Recip Impulse Velocity Monitor is to provide the following:
1. Machinery protection for reciprocating compressors by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
2. Essential reciprocating compressor machine information for both operations and maintenance personnel
Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.
