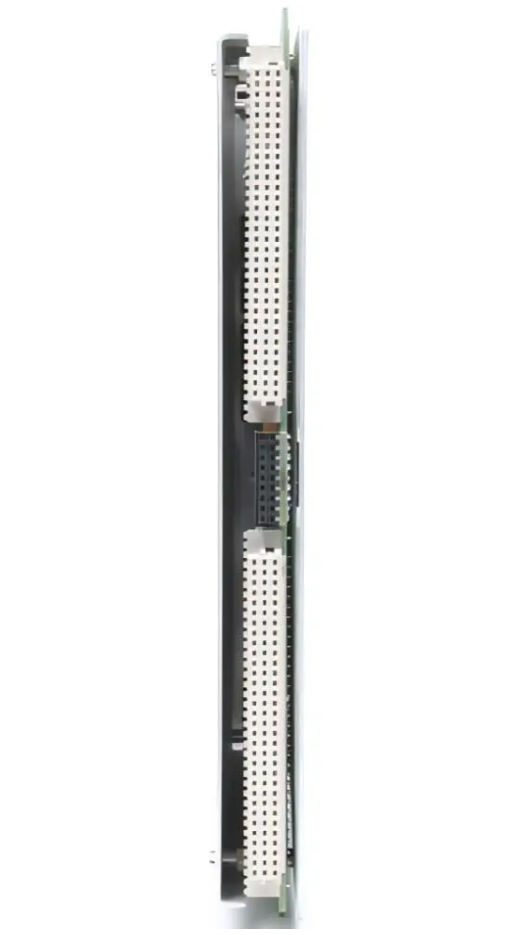

Bently nevada 3500/72M Recip Rod Position Monitor

 Bently nevada four-channel 3500/72M 176449-08 Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements.

Manufacturer: Bently Nevada
Model Number: 3500/72 (complete di order choose last part number if require)
Part Number: 176449-08
price: $5200
Product Type: Recip Rod Position Monitor
Description: Bently Nevada 3500/72M 176449-08 Recip Rod Position Monitor
Origin: United States (US)
Dimensions: 9.50 in x 0.96 in x 9.52 in
Weight: 0.91 kg (2.0 lb)
Series: 3500
Availability: In stock

Ordering Information

For the detailed listing of country and product specific approvals, refer to the Approvals Quick Reference Guide (108M1756) available from Bently.com.
Rod Position Monitor3500/72M - AA-BB

A: I/O Module Type
01 I/O Module with Internal Terminations
02 I/O Module with External Terminations
03 I/O Module with Internal Barriers and Internal Terminations

B: Hazardous Area Approval Option
00 None
01 CSA/NRTL/C (Class 1, Division 2)
02 ATEX/IECEx/CSA (Class 1, Zone 2)

For more details see datasheet here

Spare

125808-08 - Proximitor / Velomitor External Termination BlockEuro Style connectors
128015-08 - Proximitor / VelomitorExternal Termination Block Terminal Strip Connectors
128702-01 - Recorder External Termination Block Euro Style Connectors
128710-01 - Recorder External Termination Block Terminal Strip Connectors

Functional Description

The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms.
Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
Use the 3500 Rack Configuration Software to:
1. Configure alert setpoints for each active measured value and danger setpoints for any two of the active measured values.
2. Protect reciprocating compressors by continuously comparing monitored parameters against configured alarm setpoints to display alarms and trigger relays, if needed.
3. Monitor the condition of essential reciprocating compressor machinery.
The monitor channels are programmed in pairs and can perform up to two functions at a time. For example, channels 1 and 2 can perform one function while channels 3 and 4 perform another or the same function.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures:
1. Rod position
2. Rod drop
3. Hyper-compressor
