BXS 04 3/2 direct acting (Auto & Manual-Reset)BXS-04-04-E1-32-NC-00-V-74AT4-24D-36

This product ships globally

SKU : BXS-596-BX-001

In Stock

(0 Reviews)

BXS 04 3/2 direct acting (Auto & Manual-Reset)

Model Code : BXS-04-04-E1-32-NC-00-V-74AT4-24D-36

BXS-04-04-E1-32-NC-00-V-74AT4-24D-36 BXS-04-04-E1-32-NC-00-V-77A-24D-18 BXS-04-04-E1-32-NC-00-V-78A-260 BXS-04-04-E5-32-NC-00-V-74AT4-24D-36 BXS-04-04-E5-32-NC-00-V-77A-24D-18 BXS-04-04-E5-32-NC-00-V-78A-260

Quantity

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

About This Item
Reviews

Order Details

¼" NPT Ports, 3 Way 2 Position, Pilot Operated, Direct Acting, Normally Closed, Spring Return, 24Vdc, Auto Reset Internal Pilot.
¼" NPT Ports, 3 Way 2 Position, Pilot Operated, Direct Acting, Normally Closed, Spring Return, 24Vdc, Manual Reset Internal Pilot.

Model Code: BXS 04 3/2 direct acting (Auto & Manual-Reset)
Selection Chart	Code	Feature
Operator:

Connections	04	¼" Body Ported (Stainless Steel)
Connections	A04	¼ Body Por ted (Aluminium) (Option only available with the type 27 Ex d and type 28 Ex ia solenoids)

Primary Operator	E1	Auto Reset Internal Pilot
	E3	Manual Override Internal Pilot (M)
	E5	Manual Reset Internal Pilot (ML)
	E13	Manual Reset Tamperproof Internal Pilot (MLT)
	E15	Manual Override Rotary Internal Pilot (MOR)

Valve Configuration	22	2 Way 2 Position
Valve Configuration	32	3-way, 2-position

Valve Configuration1	NC	Normally close
Valve Configuration1	NO	Normally Open

Secondary Operator	00	Spring Return
	02	Spring Return + Plunger
	E1	Auto Reset Internal Pilot
	E3	Manual Override Internal Pilot (M)
	E5	Manual Reset Internal Pilot (ML)
	E13	Manual Reset Tamperproof Internal Pilot (MLT)
	E15	Manual Override Rotary Internal Pilot (MOR)

O-ring Material	SA	Nitrile (Low Temperature) (-25ºC to +130ºC)
	V	Viton (Standard) (-15ºC to +130ºC)
	AL	Fluorosilicone (-55ºC to +130ºC)

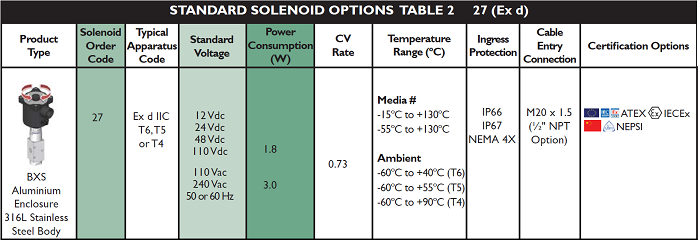

Solenoid **	27	see Figure here

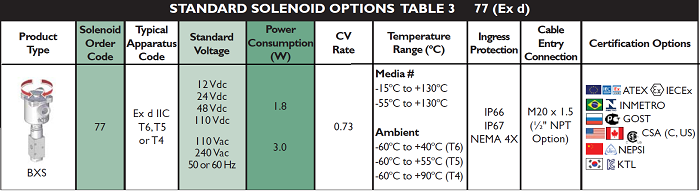

	77	see Figure here

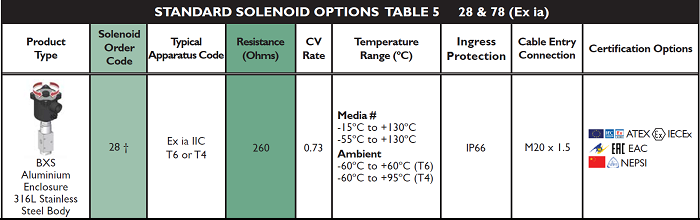

	28	see Figure here

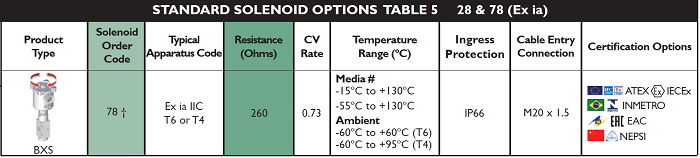

	78	see Figure here

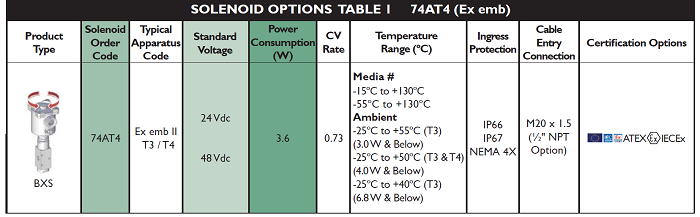

	74AT4	see Figure here

Solenoid Approval	A	ATEX/IECEx Dual Certified/Labelled
	G	GOST
	I	INMETRO
	N	NEPSI*
	U	CSA (US) ATEX Dual Certified/Labelled
	K	KTL/IECEx Dual Certified/Labelled

Voltage	12D	see Figures 27 - 77 28 - 78 74AT4
	24D
	48D
	110D
	110A
	240A
Resistance		Resistance ( ) 28 & 78 (Ex ia) - 260 Ohms

Power	18	see Figure 27 - 77
	30	see Figure 27 - 77
	36	see Figure 74AT4

Cable Entry		NO LETTER will be M20 x 1.5 Cable Entry
	K85	½" NPT Cable Entry

Option	L142	Banjo Assembly

Option1		NO LETTER will be NPT Ports - Block Before Bleed (BBB)
	K6	BSPP Ports
	K54	Block After Bleed (BAB)

** Special conditions for safe use Type 74AT4 - The supply circuit shall be fitted with a fuse capable of meeting a 1500 Amp short circuit current. Must be compliant with special conditions for safe use as de ned in EC Type Examination Certi cate Sira01ATEX3248U.

For further information read the datasheet here

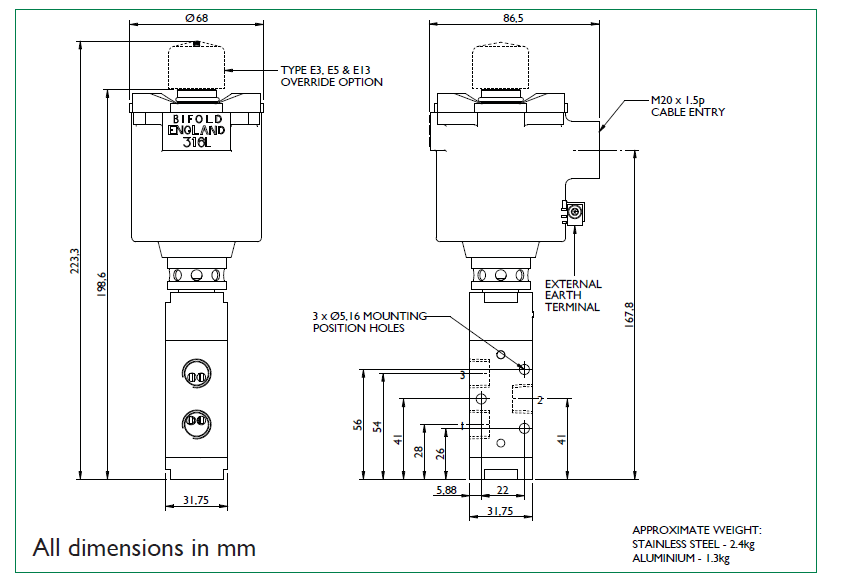

For dimension Click here

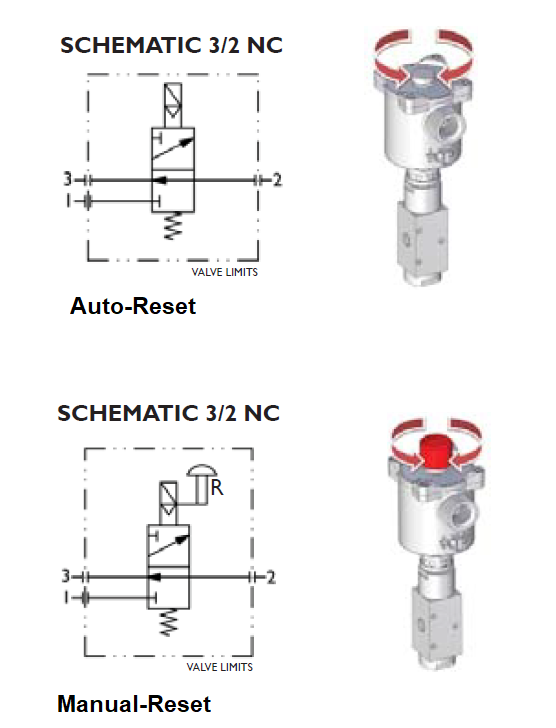

For diagram click here
Solenoid Valves - SIL Certificate here

Feature

SIL 3 capability: The product has met manufacturer design process requirements of safety Integrity Level (SIL) 3.
Force balanced valve design with high safety factors to de-energize at all pressures in normally open and normally closed configurations.
100% computerized diagnostic testing to ensure each solenoid valve is proven along with confirmed safety factors.
Bifold has state of the art product qualification and production equipment including flow (Cv), environment (-70° to 180° C), function and leakage testing and data logging.
The standard solenoid operator is a holding magnet type which ensures the valve will operate in damp conditions. The risk of corrosion to internal components is reduced, unlike other valve types that incorporate a solenoid core tube design with a 'wetted' armature that will only operate in dry air conditions!
Tolerant to moist air in control lines.
The standard solenoid valve has proven arctic service and low temperature performance.
Products are manufactured, inspected, assembled and tested in our state of the art production facilities.
Large clearances, metal back up to seals and no knife edge sealing to prevent long term valve sticking.
Dry solenoid armature to prevent corrosion and affecting safe shut down.
Simple maintenance - Removable transient suppression diode on Ex d DC solenoid valve assemblies and removable solenoid coil without removing valve from the tubing.
