BXS-04 5/2 Indirect Acting (Auto & Manual-Reset)

Model Code : BXS-04-04-E1-52-XX-E1-V-74AT4-24D-36-L142

BXS-04-04-E1-52-XX-E1-V-74AT4-24D-36-L142 BXS-04-04-E1-52-XX-E1-V-77A-24D-30-L142 BXS-04-04-E1-52-XX-E1-V-78A-260-L142 BXS-04-04-E5-52-XX-E5-V-74AT4-24D-36-L142 BXS-04-04-E5-52-XX-E5-V-77A-24D-30-L142 BXS-04-04-E5-52-XX-E5-V-78A-260-L142

[{"id":24367,"product_id":597,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"BXS-597-BX-001","weight":"","catid":71,"image":{"id":1188,"src":"\/images\/easystore\/product-597\/auto_reset1.png","name":"auto_reset1.png","type":"image","is_featured":1,"alt_text":"BXS-04 5\/2 Indirect Acting (Auto & Manual-Reset)BXS-04-04-E1-52-XX-E1-V-74AT4-24D-36-L142"},"combination":"BXS-04-04-E1-52-XX-E1-V-74AT4-24D-36-L142","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"BXS-04-04-E1-52-XX-E1-V-74AT4-24D-36-L142"}},{"id":24368,"product_id":597,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"BXS-597-BX-002","weight":"","catid":71,"image":{"id":1188,"src":"\/images\/easystore\/product-597\/auto_reset1.png","name":"auto_reset1.png","type":"image","is_featured":1,"alt_text":"auto_reset1.png"},"combination":"BXS-04-04-E1-52-XX-E1-V-77A-24D-30-L142","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"BXS-04-04-E1-52-XX-E1-V-77A-24D-30-L142"}},{"id":24369,"product_id":597,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"BXS-597-BX-003","weight":"","catid":71,"image":{"id":1188,"src":"\/images\/easystore\/product-597\/auto_reset1.png","name":"auto_reset1.png","type":"image","is_featured":1,"alt_text":"auto_reset1.png"},"combination":"BXS-04-04-E1-52-XX-E1-V-78A-260-L142","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"BXS-04-04-E1-52-XX-E1-V-78A-260-L142"}},{"id":24370,"product_id":597,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"BXS-597-BX-004","weight":"","catid":71,"image":{"id":1189,"src":"\/images\/easystore\/product-597\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"BXS-04-04-E5-52-XX-E5-V-74AT4-24D-36-L142","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"BXS-04-04-E5-52-XX-E5-V-74AT4-24D-36-L142"}},{"id":24371,"product_id":597,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"BXS-597-BX-005","weight":"","catid":71,"image":{"id":1189,"src":"\/images\/easystore\/product-597\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"BXS-04-04-E5-52-XX-E5-V-77A-24D-30-L142","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"BXS-04-04-E5-52-XX-E5-V-77A-24D-30-L142"}},{"id":24372,"product_id":597,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"BXS-597-BX-006","weight":"","catid":71,"image":{"id":1189,"src":"\/images\/easystore\/product-597\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"BXS-04-04-E5-52-XX-E5-V-78A-260-L142","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"BXS-04-04-E5-52-XX-E5-V-78A-260-L142"}}]

Quantity

Social share:

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

About This Item
Reviews

Order Details

¼" NPT Ports, Dual Solenoid, 5 Way 2 Position, Pilot Operated, Indirect Acting, Pilot Return, 24Vdc, Auto Reset Internal Pilot.
¼" NPT Ports, Dual Solenoid, 5 Way 2 Position, Pilot Operated, Indirect Acting, Pilot Return, 24Vdc, Manual Reset Internal Pilot.

Model Code: BXS-04 5/2 Indirect Acting (Auto & Manual-Reset)
Selection Chart	Code	Feature
Operator:

Connections	04	¼" Body Ported (Stainless Steel)

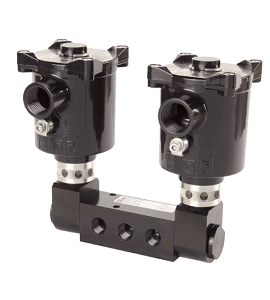

Connections	A04	¼ Body Por ted (Aluminium) (Option only available with the type 27 Ex d and type 28 Ex ia solenoids)

Primary Operator	E1	Auto Reset Internal Pilot
	E3	Manual Override Internal Pilot (M)
	E5	Manual Reset Internal Pilot (ML)
	E13	Manual Reset Tamperproof Internal Pilot (MLT)
	E15	Manual Override Rotary Internal Pilot (MOR)

Valve Configuration	52	5 Way 2 Position
Valve Configuration	53	5 Way 3 Position

Valve Configuration1	XX	5/2 Valve
	YY	5/3 Valve All Ports Blocked
	ZZ	5/3 Valve Cylinder Ports Vented

Secondary Operator	00	Spring Return
	02	Spring Return + Plunger
	E1	Auto Reset Internal Pilot
	E3	Manual Override Internal Pilot (M)
	E5	Manual Reset Internal Pilot (ML)
	E13	Manual Reset Tamperproof Internal Pilot (MLT)
	E15	Manual Override Rotary Internal Pilot (MOR)

O-ring Material	SA	Nitrile (Low Temperature) (-25ºC to +130ºC)
	V	Viton (Standard) (-15ºC to +130ºC)
	AL	Fluorosilicone (-55ºC to +130ºC)

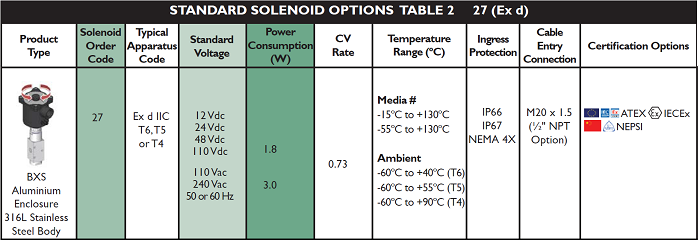

Solenoid **	27	see Figure here

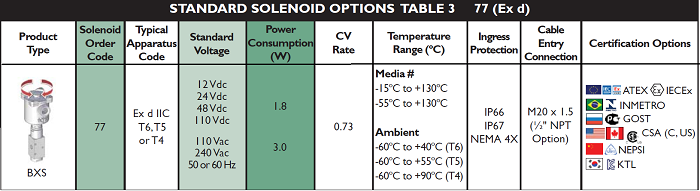

	77	see Figure here

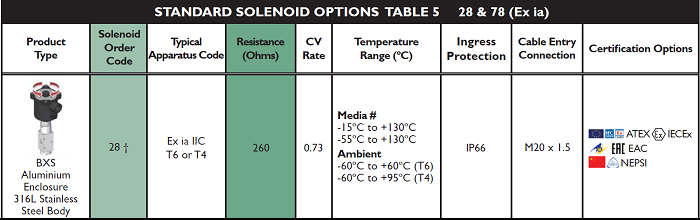

	28	see Figure here

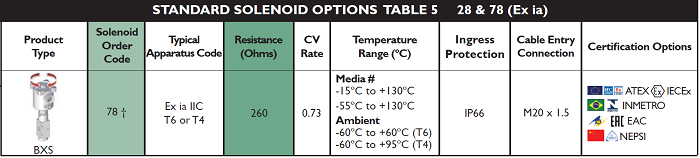

	78	see Figure here
	74AT4	see Figure here

Solenoid Approval	A	ATEX/IECEx Dual Certified/Labelled
	G	GOST
	I	INMETRO
	N	NEPSI*
	U	CSA (US) ATEX Dual Certified/Labelled
	K	KTL/IECEx Dual Certified/Labelled

Voltage	12D	see Figures 27 - 77 74AT4
	24D
	48D
	110D
	110A
	240A
Resistance		Resistance ( ) 28 & 78 (Ex ia) - 260 Ohms

Power	18	see Figure 27 - 77
	30	see Figure 27 - 77
	36	see Figure 74AT4

Cable Entry		NO LETTER will be M20 x 1.5 Cable Entry
	K85	½" NPT Cable Entry

Option	L142	Banjo Assembly

Option1		NO LETTER will be NPT Ports - Block Before Bleed (BBB)
	K6	BSPP Ports
	K54	Block After Bleed (BAB)

** Special conditions for safe use Type 74AT4 - The supply circuit shall be fitted with a fuse capable of meeting a 1500 Amp short circuit current. Must be compliant with special conditions for safe use as defined in EC Type Examination Certificate Sira01ATEX3248U.

For further information read the datasheet here

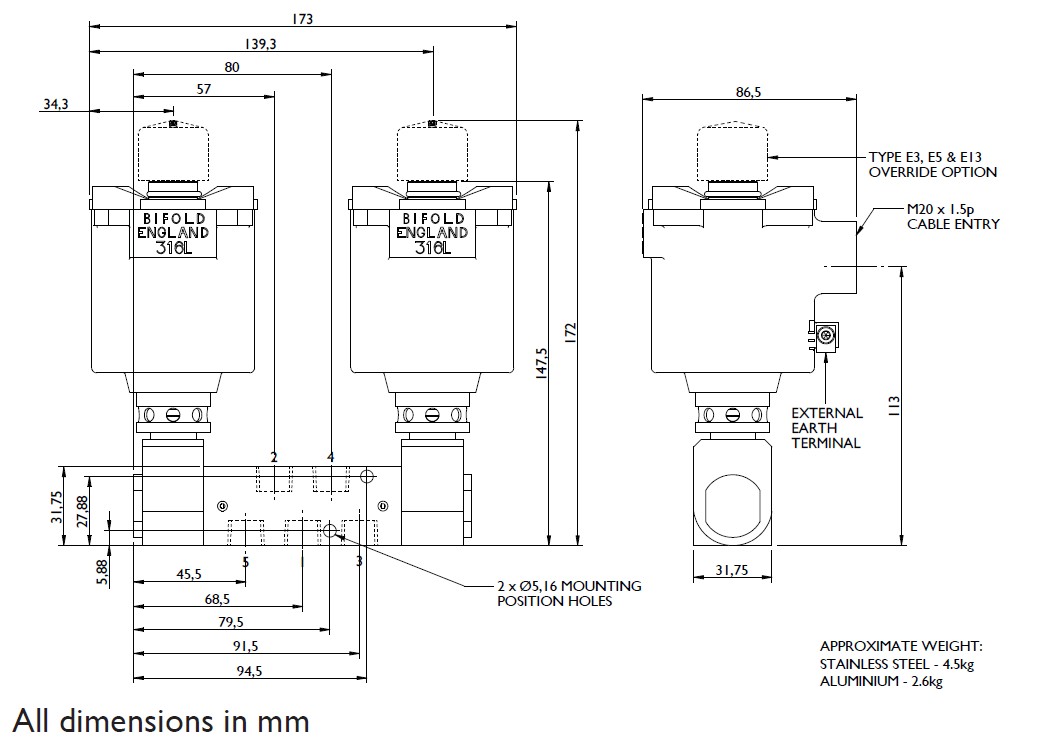

For dimension Click here

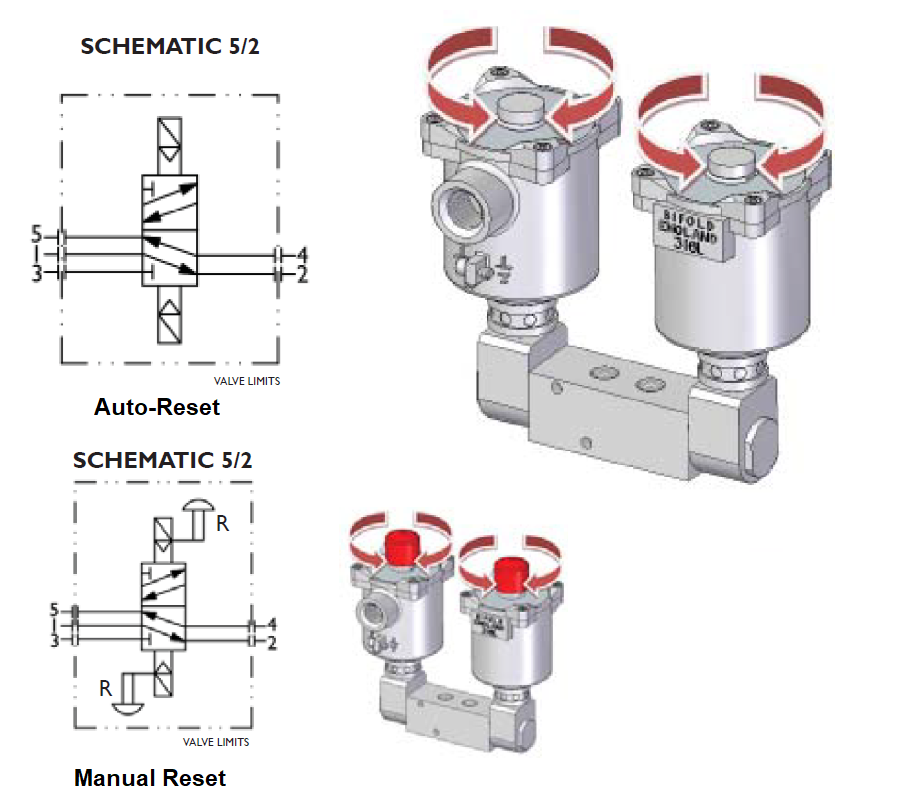

For diagram click here
Solenoid Valves - SIL Certificate here
