FP01 S2 Direct acting (Auto & Manual-Reset)

Model Code : FP01/S2/M/32/NC/S/74AT4-24D/36

FP01/S2/M/32/NC/S/74AT4-24D/36 FP01/S2/M/32/NC/S/77A-24D/30 FP01/S2/M/32/NC/S/78A-155 FP01/S2/M/32/NC/S/74AT4-24D/ML/36 FP01/S2/M/32/NC/S/77A-24D/ML/30 FP01/S2/M/32/NC/S/78A-155/ML

[{"id":24405,"product_id":613,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-613-FP-001","weight":"","catid":73,"image":{"id":1199,"src":"\/images\/easystore\/product-613\/fp01d.jpg","name":"fp01d.jpg","type":"image","is_featured":1,"alt_text":"FP01 S2 Direct acting (Auto & Manual-Reset)FP01\/S2\/M\/32\/NC\/S\/74AT4-24D\/36"},"combination":"FP01\/S2\/M\/32\/NC\/S\/74AT4-24D\/36","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP01\/S2\/M\/32\/NC\/S\/74AT4-24D\/36"}},{"id":24406,"product_id":613,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-613-FP-002","weight":"","catid":73,"image":{"id":1199,"src":"\/images\/easystore\/product-613\/fp01d.jpg","name":"fp01d.jpg","type":"image","is_featured":1,"alt_text":"fp01d.jpg"},"combination":"FP01\/S2\/M\/32\/NC\/S\/77A-24D\/30","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP01\/S2\/M\/32\/NC\/S\/77A-24D\/30"}},{"id":24407,"product_id":613,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-613-FP-003","weight":"","catid":73,"image":{"id":1199,"src":"\/images\/easystore\/product-613\/fp01d.jpg","name":"fp01d.jpg","type":"image","is_featured":1,"alt_text":"fp01d.jpg"},"combination":"FP01\/S2\/M\/32\/NC\/S\/78A-155","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP01\/S2\/M\/32\/NC\/S\/78A-155"}},{"id":24408,"product_id":613,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-613-FP-004","weight":"","catid":73,"image":{"id":1200,"src":"\/images\/easystore\/product-613\/fp01b.jpg","name":"fp01b.jpg","type":"image","is_featured":0,"alt_text":"fp01b.jpg"},"combination":"FP01\/S2\/M\/32\/NC\/S\/74AT4-24D\/ML\/36","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP01\/S2\/M\/32\/NC\/S\/74AT4-24D\/ML\/36"}},{"id":24409,"product_id":613,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-613-FP-005","weight":"","catid":73,"image":{"id":1200,"src":"\/images\/easystore\/product-613\/fp01b.jpg","name":"fp01b.jpg","type":"image","is_featured":0,"alt_text":"fp01b.jpg"},"combination":"FP01\/S2\/M\/32\/NC\/S\/77A-24D\/ML\/30","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP01\/S2\/M\/32\/NC\/S\/77A-24D\/ML\/30"}},{"id":24410,"product_id":613,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-613-FP-006","weight":"","catid":73,"image":{"id":1200,"src":"\/images\/easystore\/product-613\/fp01b.jpg","name":"fp01b.jpg","type":"image","is_featured":0,"alt_text":"fp01b.jpg"},"combination":"FP01\/S2\/M\/32\/NC\/S\/78A-155\/ML","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model Code":"FP01\/S2\/M\/32\/NC\/S\/78A-155\/ML"}}]

Quantity

Social share:

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

About This Item
Reviews

Order Details

3 way 2 position, direct acting, Normally Closed, 24Vdc, Auto Reset.
3 way 2 position, direct acting, Normally Closed, 24Vdc, Manual Reset.

Model Code: FP01 S2 Direct acting (Auto & Manual-Reset)
Selection Chart	Code	Feature
Maximum Valve Pressure	SI	345 bar
	S2	517 bar
	S3	690 bar

Connections	M	Sub-base Mounting

Valve configuration	22	2-way, 2-position (effected by omitting / plugging one port in the sub-base)
Valve configuration	32	3-way, 2-position

Valve configuration 1	NC	Normally Closed
	NO	Normally Open
	SV	Selector Valve (3 / 2 Only)
	DV	Diverter Valve (3 / 2 Only)

O-ring Material	S	Nitrile (standard) (-30ºC to +130ºC)
	V	Viton (-20ºC to +180ºC)
	SA	Nitrile (Low Temperature) (-36ºC to +180ºC)

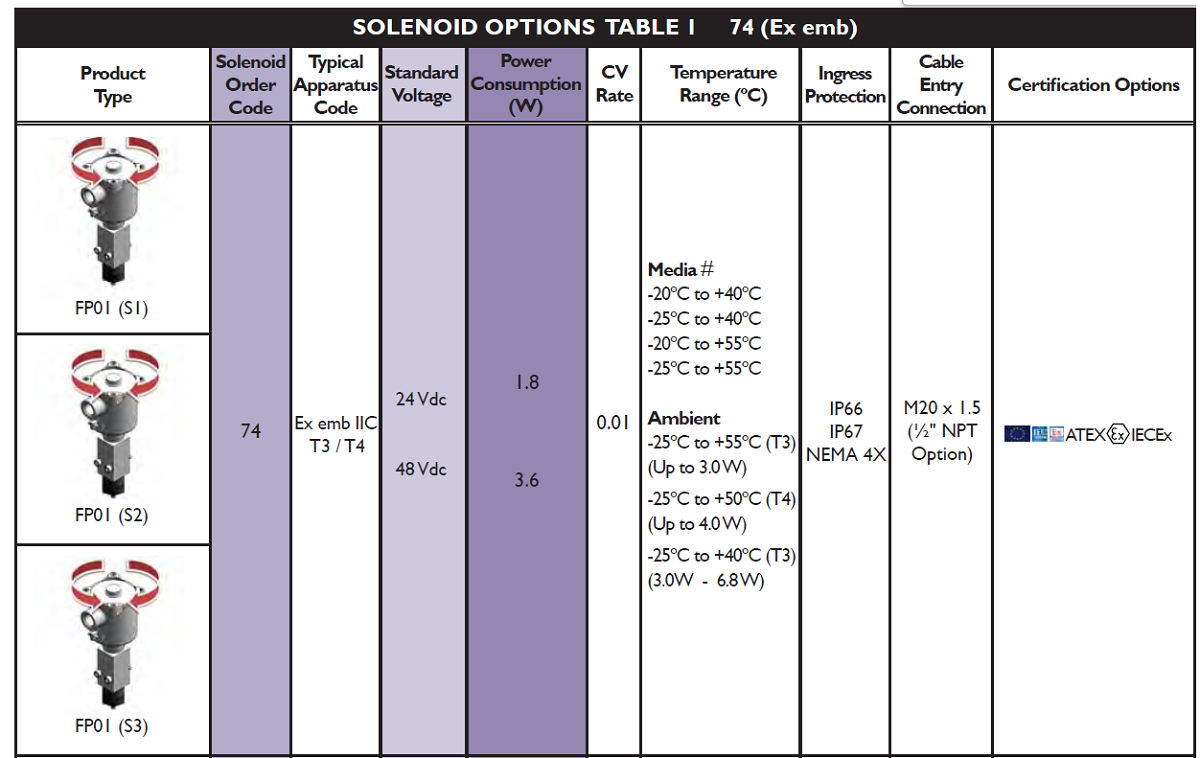

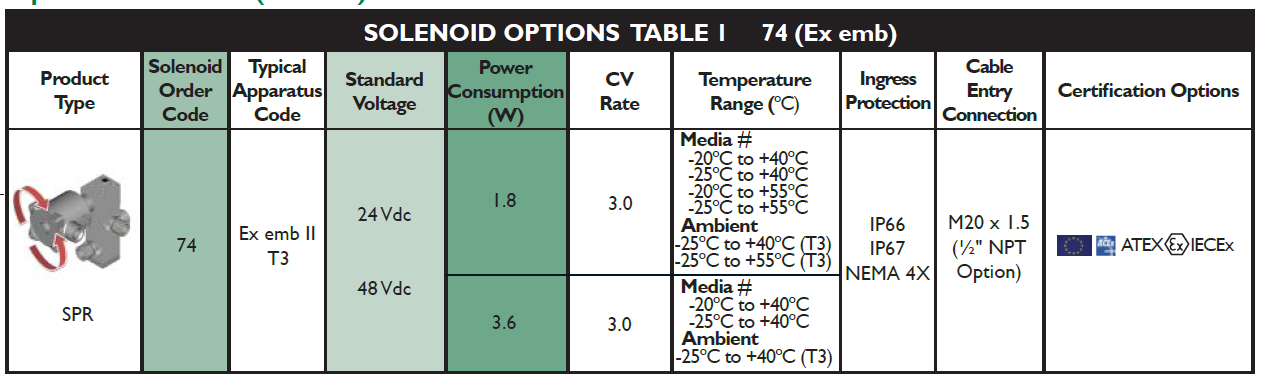

Solenoid **	74	see Figure here

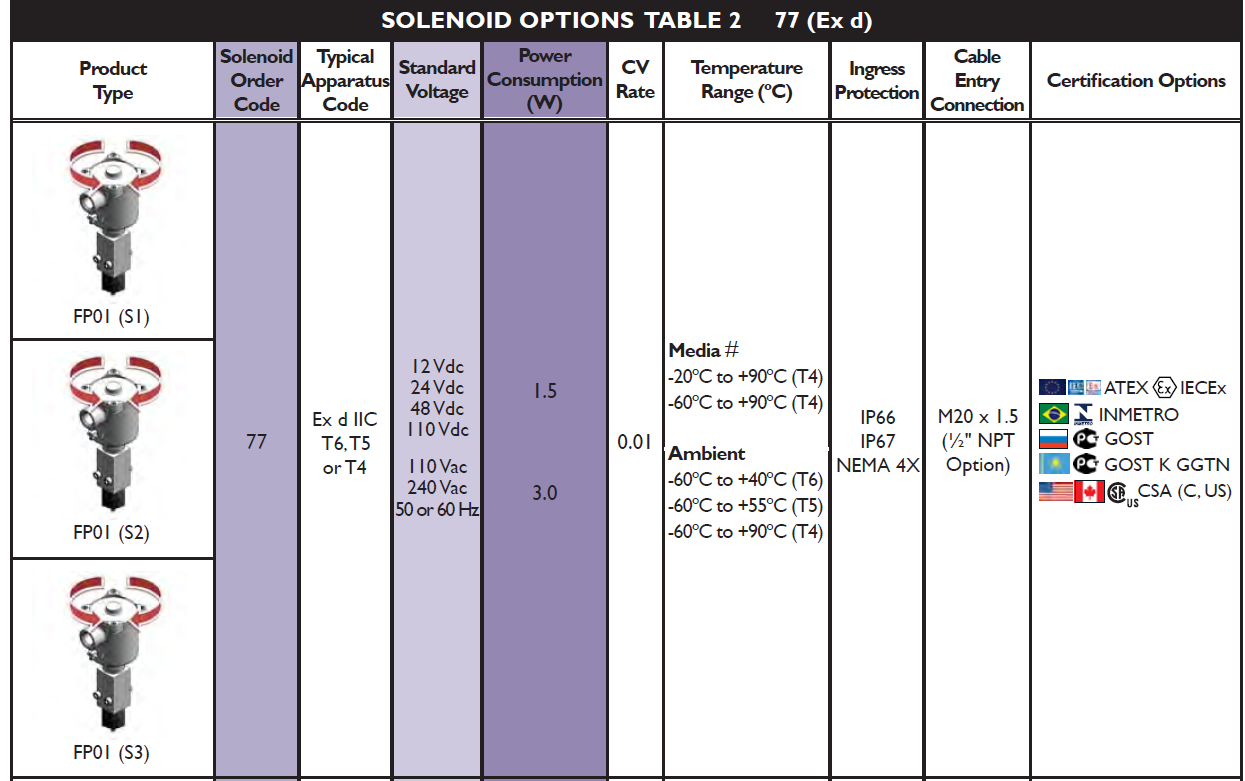

	77	see Figure here

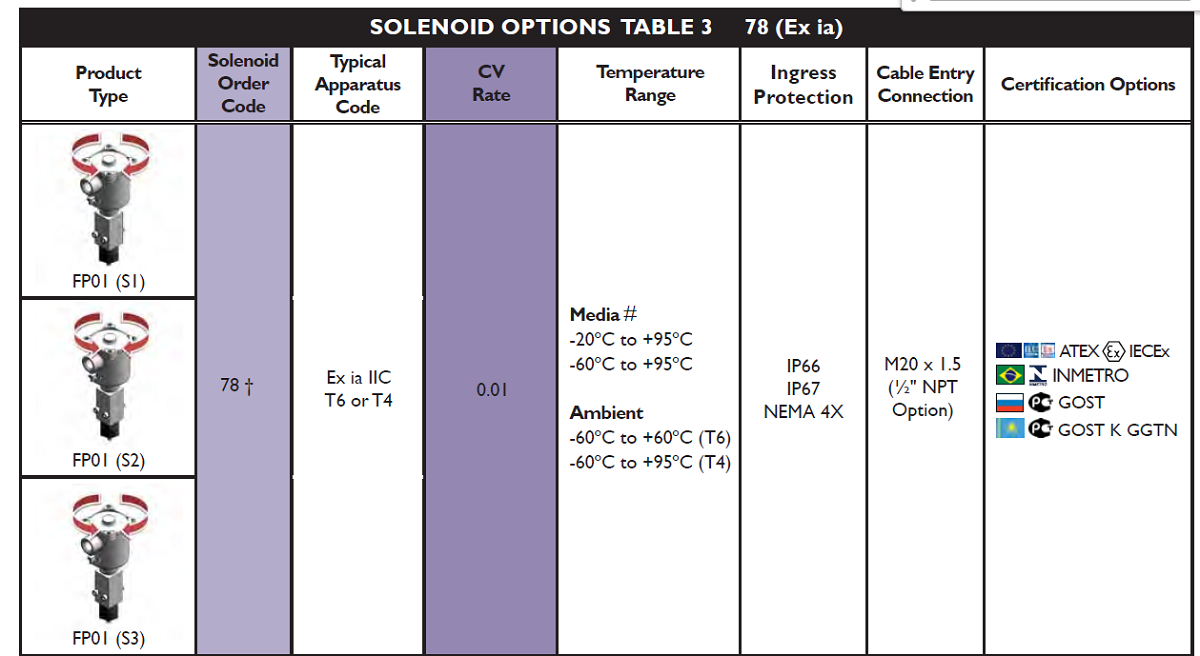

	78	see Figure here

Solenoid Approval	A	ATEX/IECEx Dual Certified/Labelled
	G	GOST
	I	INMETRO
	U	CSA (US) ATEX Dual Certified/Labelled

Ex emb 'T' Option	T4	Class ≤ 4.0 W (50ºC maximum ambient temperature)

Voltage	24D	see Figures 74 77
	48D
	110D
	110A
	240A
Resistance	XX	Ω 155 Ohms see figure 78

Options	M	Electrical to switch or temporary manual override
	ML	Electrical and manual required
	MOR	Electrical to switch or stayput manual override

Power	18	see Figure 74
	36	see Figure 74
	15	see Figure 77
	30	see Figure 77

Option	K85	½" NPT cable entry

Option1	H2S	NACE MR-01-75 compliant internal wetted and body materials

Sub-Base Options	M221	¼" NPT
Sub-Base Options	M437	¼" Bspp

** Solenoid must be used in conjunction with a correctly matched Intrinsically Safe (IS) solenoid driver. The valve installer is responsible for a correct and safe IS system. The solenoid valve installation operating and maintenance instruction reference is OP0165.

For further information read the datasheet here

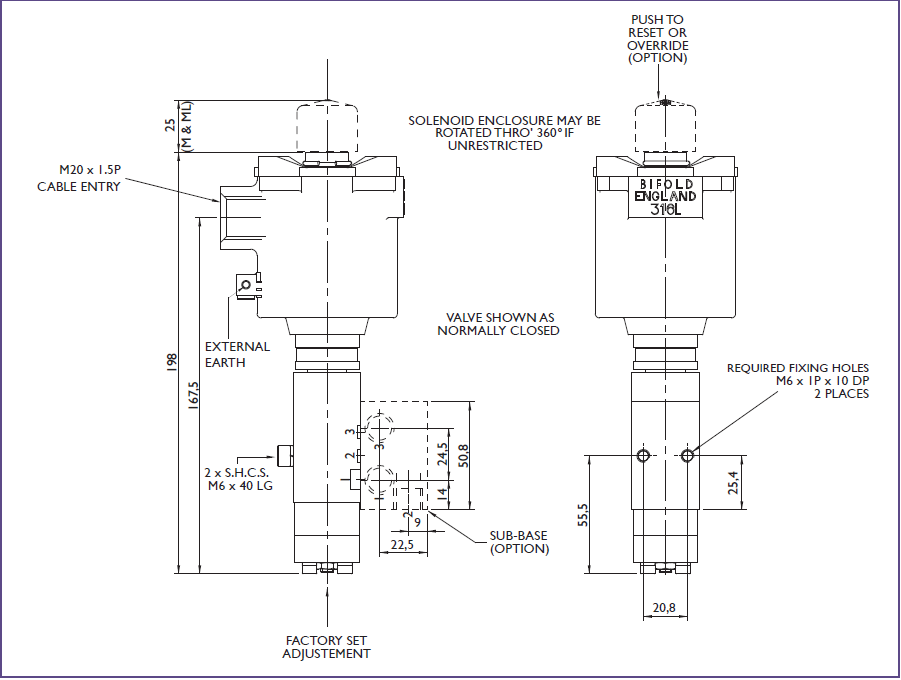

For dimension Click here

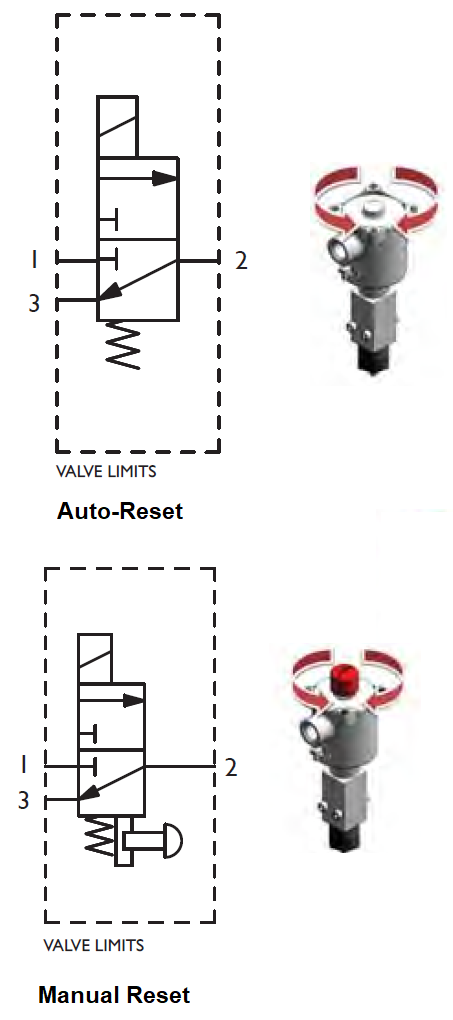

For diagram click here
Solenoid Valves - SIL Certificate here
