FP03P Direct Acting (Auto & Manual-Reset) FP03P-02-32-NC-V-74A-24D-36-XX

This product ships globally

SKU : FP0-592-FP-001

In Stock

(0 Reviews)

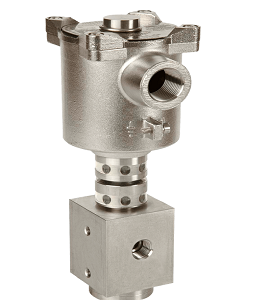

FP03P Direct Acting (Auto & Manual-Reset)

Model code : FP03P-02-32-NC-V-74A-24D-36-XX

FP03P-02-32-NC-V-74A-24D-36-XX FP03P-02-32-NC-V-77A9-24D-30-XX FP03P-02-32-NC-V-78A9-370-XX FP03P-02-32-NC-V-74A-24D-ML-36-XX FP03P-02-32-NC-V-77A9-24D-ML-30-XX FP03P-02-32-NC-V-78A9-24D-ML-370-XX

[{"id":24334,"product_id":592,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-592-FP-001","weight":"","catid":70,"image":{"id":1176,"src":"\/images\/easystore\/product-592\/auto_reset.png","name":"auto_reset.png","type":"image","is_featured":0,"alt_text":"FP03P Direct Acting (Auto & Manual-Reset) FP03P-02-32-NC-V-74A-24D-36-XX"},"combination":"FP03P-02-32-NC-V-74A-24D-36-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model code":"FP03P-02-32-NC-V-74A-24D-36-XX"}},{"id":24335,"product_id":592,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-592-FP-002","weight":"","catid":70,"image":{"id":1176,"src":"\/images\/easystore\/product-592\/auto_reset.png","name":"auto_reset.png","type":"image","is_featured":0,"alt_text":"auto_reset.png"},"combination":"FP03P-02-32-NC-V-77A9-24D-30-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model code":"FP03P-02-32-NC-V-77A9-24D-30-XX"}},{"id":24336,"product_id":592,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-592-FP-003","weight":"","catid":70,"image":{"id":1176,"src":"\/images\/easystore\/product-592\/auto_reset.png","name":"auto_reset.png","type":"image","is_featured":0,"alt_text":"auto_reset.png"},"combination":"FP03P-02-32-NC-V-78A9-370-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model code":"FP03P-02-32-NC-V-78A9-370-XX"}},{"id":24337,"product_id":592,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-592-FP-004","weight":"","catid":70,"image":{"id":1177,"src":"\/images\/easystore\/product-592\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"FP03P-02-32-NC-V-74A-24D-ML-36-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model code":"FP03P-02-32-NC-V-74A-24D-ML-36-XX"}},{"id":24338,"product_id":592,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-592-FP-005","weight":"","catid":70,"image":{"id":1177,"src":"\/images\/easystore\/product-592\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"FP03P-02-32-NC-V-77A9-24D-ML-30-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model code":"FP03P-02-32-NC-V-77A9-24D-ML-30-XX"}},{"id":24339,"product_id":592,"price":0,"visibility":true,"inventory_status":true,"inventory_amount":0,"is_taxable":1,"sku":"FP0-592-FP-006","weight":"","catid":70,"image":{"id":1177,"src":"\/images\/easystore\/product-592\/manual_reset.png","name":"manual_reset.png","type":"image","is_featured":0,"alt_text":"manual_reset.png"},"combination":"FP03P-02-32-NC-V-78A9-24D-ML-370-XX","is_tracking_inventory":0,"tax_rate":0,"price_with_currency":"$0.00","price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"discounted_price":0,"discounted_price_with_currency":"$0.00","discounted_price_with_segments":{"main_value":0,"formatted_value":"0.00","currency_format":"short","currency_position":"before","decimal_separator":".","thousand_separator":",","currency":"$","segments":{"amount":"0","decimal":"00"}},"variant_option_map":{"Model code":"FP03P-02-32-NC-V-78A9-24D-ML-370-XX"}}]

Quantity

Social share:

Social share:

You have 30 days to ask for a refund. All things on sale are final sale.

About This Item
Reviews

Order Details

1⁄8" NPT Ports, 3 way 2 position, direct acting, Normally Universal, 24Vdc, Auto Reset.
1⁄8" NPT Ports, 3 way 2 position, direct acting, Normally Universal, 24Vdc, Manual Reset.

Model Code: FP03P Direct Acting (Auto & Manual-Reset)
Selection Chart	Code	Feature
Operator:		145psi - 10 bar

Connections	M1	Manifold mount - For use with Axis Manifold System Only
	M7	Manifold mount stacker - For use with Axis Manifold System Only
	02	1/8" NPT body ported

Valve Configuration	32	3-way, 2-position

Valve Configuration1	NC	Normally close

O-ring Material	V	Viton (Standard) (-20ºC to +180ºC)
O-ring Material	AL	Flurosilicone (-60ºC to +180ºC)

Solenoid **	74	see Figure here
	77	see Figure here
	78	see Figure here

Solenoid Approval	A	ATEX/IECEx Dual Certified/Labelled
	G	GOST
	I	INMETRO
	N	NEPSI*
	U	CSA (US) ATEX Dual Certified/Labelled

T-Rating & Gas Group	3	T4 IIC 77 (Ex d)
	6	T5 IIC 77 (Ex d)
	9	T6 IIC 77 (Ex d)`

Voltage	12D	See figure 74 - 77 - 78
	24D
	48D
	110D
	110A
	240A

Options	M	Electrical to switch or temporary manual override
	ML	Electrical and manual required to latch or temporary manual override (3.0 Watts Ex d Only)
	MLT	Electrical and manual required to latch - tamperproof

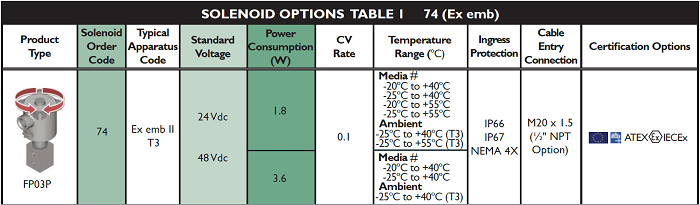

Power	18	see figure 74
	36	see figure 74

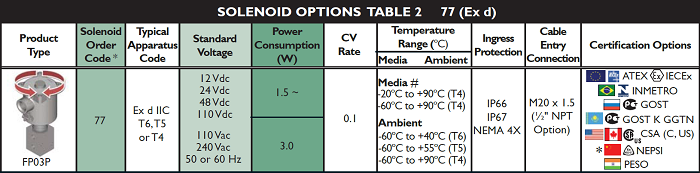

	15	see figure 77
	30	see figure 77

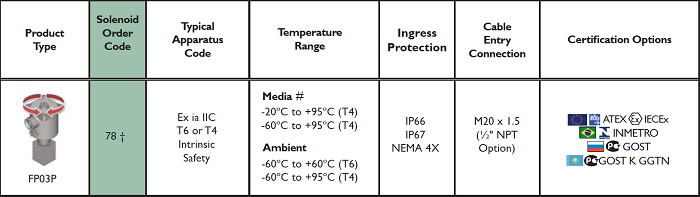

Resistance	30	see figure 78 (Ex ia) - 370 Ohms

Option	K6	BSPP Ports

cable entry	K85	1/2" NPT cable entry

Revision Number	XX	NOT REQUIRE

** Special conditions for safe use - The supply circuit shall be fitted with a fuse capable of meeting a 1500Amp short circuit current.

For further information read the datasheet here

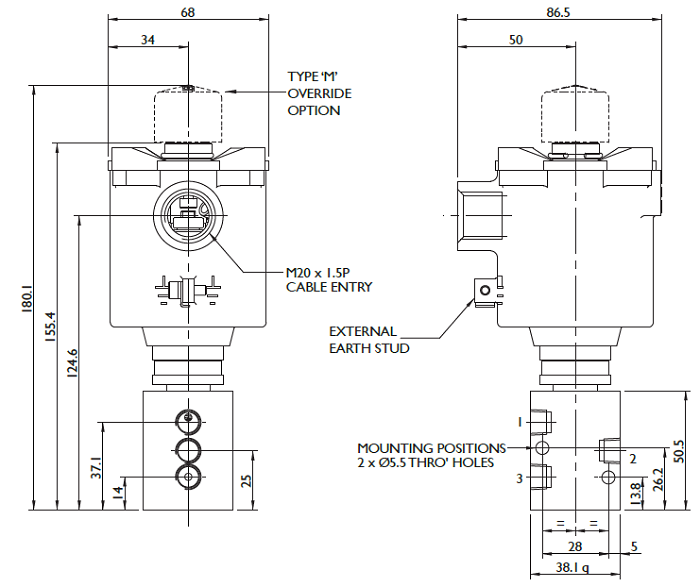

For dimension Click here

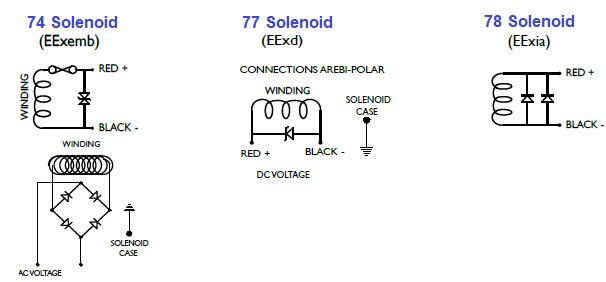

For diagram click here

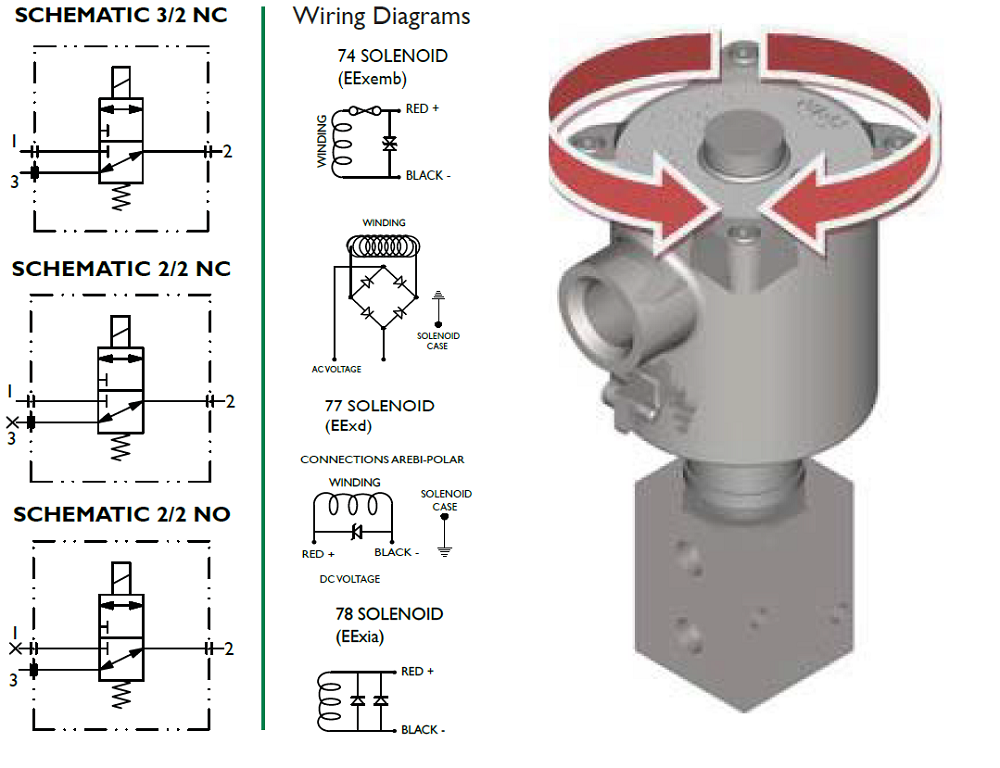

For schematic solenoid click here
Solenoid Valves - SIL Certificate here
