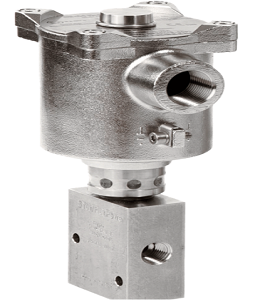

FP06P 3/2 Direct Acting (manual & Auto-Reset)
$0.00
Model Code
:
FP06P-S1-04-32-NU-V-74AT4-24D-36
Quantity
Social share:
Social share:
You have 30 days to ask for a refund. All things on sale are final sale.
Order Details
- ¼" NPT Ports, 3 Way 2 Position, Direct Acting, Normally Universal, 24Vdc, Auto Reset.
- ¼" NPT Ports, 3 Way 2 Position, Direct Acting, Normally Universal, 24Vdc, Manual Reset.
| Model Code: FP06P 3/2 Direct Acting (manual & Auto-Reset) |
||
| Selection Chart | Code | Feature |
| Operator: | S1 | 145 psi / 10 bar Maximum Valve Pressure |
| S2 | 232 psi / 16 bar Maximum Valve Pressure (For AC Coils = 6.5 Watts) | |
| Connections | 04 | ¼" Body Ported (Stainless Steel) |
| A04 | ¼" Body Ported (Aluminium) | |
| Valve Configuration | 32 | 3-way, 2-position |
| Valve Configuration1 | NU | Normally close |
| O-ring Material | S | Nitrile (-20ºC to +130ºC) |
| SA | Nitrile (Low Temperature) (-25ºC to +130ºC) | |
| V | Viton (standard) (-20ºC to +90ºC) | |
| AL | Flourosilicone (-55ºC to +90ºC) | |

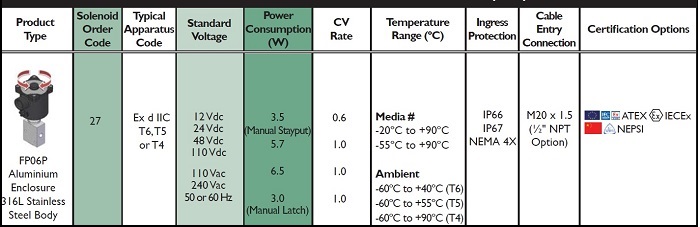

| Solenoid ** | 27 | see Figure here |

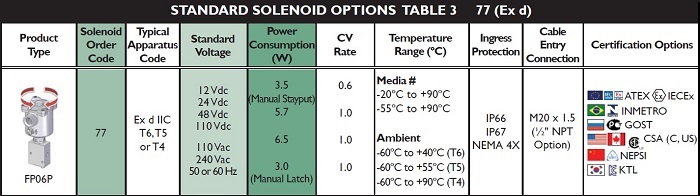

| 77 | see Figure here | |

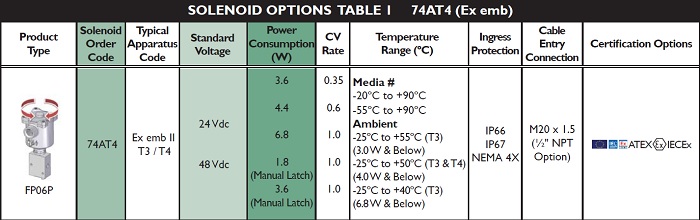

| 74AT4 | see Figure here | |
| Solenoid Approval | A | ATEX/IECEx Dual Certified/Labelled |
| G | GOST | |
| I | INMETRO | |
| N | NEPSI* | |
| U | CSA (US) ATEX Dual Certified/Labelled | |
| K | KTL/IECEx Dual Certified/Labelled | |
| Voltage | 12D | see Figure 27 - 77- 74AT4 |
| 24D | ||
| 48D | ||
| 110D | ||
| 110A | ||
| 240A | ||
| Options | M | Electrical to switch or temporary manual override |
| ML | Electrical and manual required to latch or temporary manual override (3.0 Watts Ex d Only) | |
| MLT | Electrical and manual required to latch - tamperproof | |
| MOR | Electrical to switch or stayput manual override | |
| LE | Latched Energised (Only available as NU on S1 option, LE only available as NO, 6.5 Watts, Ex d (77) on S2 option) | |
| Power | 18 | see Figure 74AT4 |
| 36 | ||
| 44 | ||
| 68 | ||
| 30 | see Figure 27 - 77 | |
| 35 | ||
| 57 | ||
| 65 | ||
| Cable Entry | NO LETTER will be M20 x 1.5 Cable Entry | |
| K85 | ½" NPT Cable Entry | |
| Option | NO LETTER will be NPT Ports | |
| K6 | BSPP Ports | |
** Special conditions for safe use Type 74AT4 - The supply circuit shall be fi tted with a fuse capable of meeting a 1500 Amp short circuit current. Must be compliant with Special Conditions for Safe Use as defi ned in EC Type Examination Certifi cate Sira01ATEX3248U
- For further information read the datasheet here
- For dimension Click here

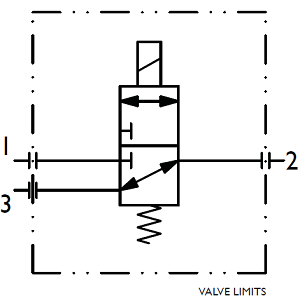

- For diagram click here
- Solenoid Valves - SIL Certificate here
